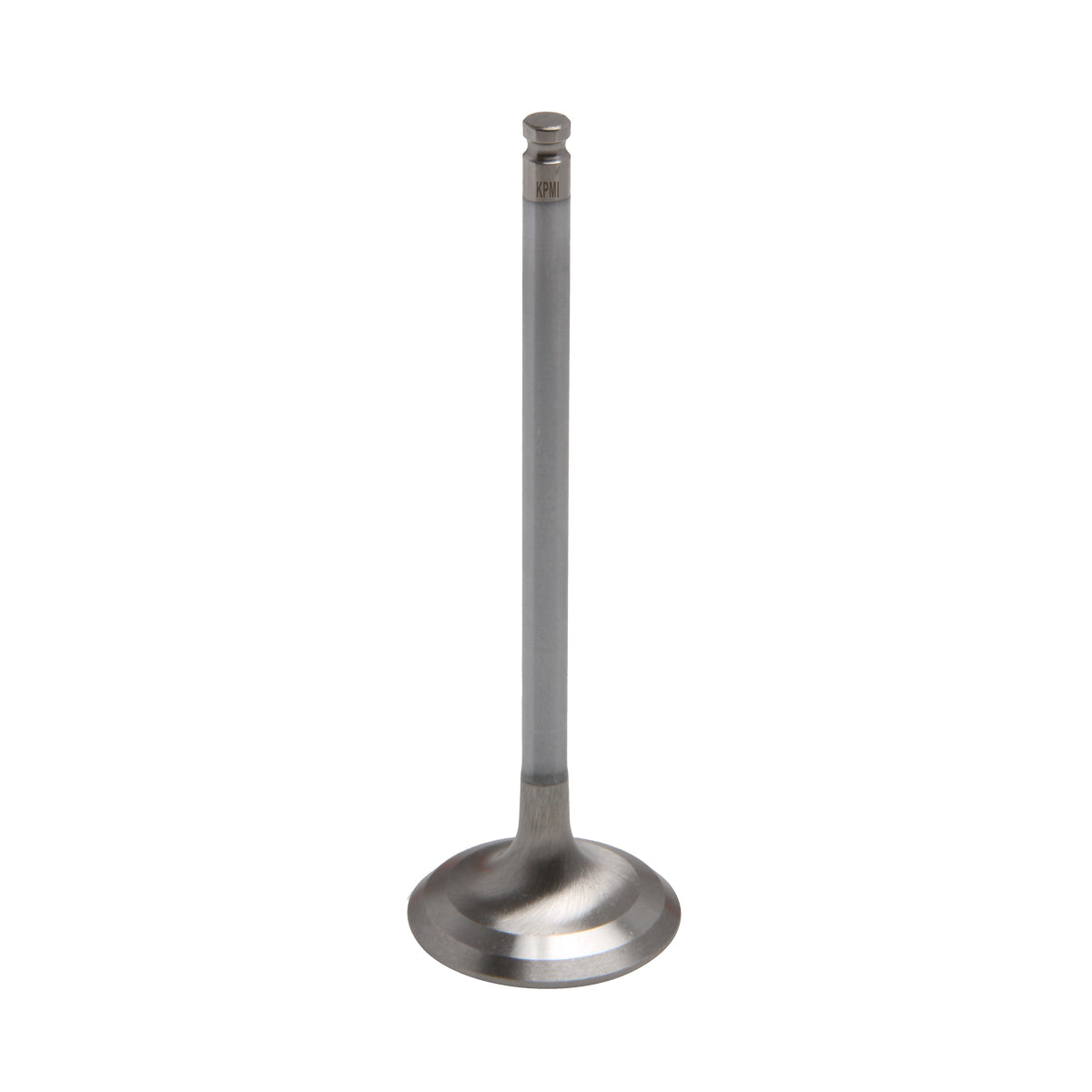

Valve, White Diamond® Stainless, Outer Intake, Various Yamaha® Applications
Valve, White Diamond® Stainless, Outer Intake, Various Yamaha® Applications
SKU:80-80213H
Couldn't load pickup availability
Yamaha® YFZ™ 450 2004-2009
Yamaha® YFZ™ 450X 2008-2011
Yamaha® YFZ™ 450R 2009-2025
Yamaha® YFZ™ 450R SE 2010-2025
Yamaha® WR™ 450F 2003-2015
Yamaha® YZ™ 450F 2003-2009
We fully CNC machine our White Diamond® Valves from a one-piece forging of either EV8 Stainless Steel or Inconel-751. These materials have proven heat and corrosion resistance properties. Each valve is designed using Finite Element Analysis software, and profiles are tested on our computerized flow bench. Strict attention is paid to the surface preparation of the valves, and the purity of the chrome is closely monitored. A 360 degree anode is used to produce the highest possible grade of hard chrome finish. White Diamond® Valves are light, strong, one piece forgings with profiles that provide excellent flow characteristics.
| Type | Outer Intake |
| Material | White Diamond® Stainless |
| Coating | Hard Chrome |
| Quantity |
Pkg. of 1 |
| Head Diameter | 27.00mm / 1.063" or 28.00mm/ 1.102" |
| Stem Diameter | 5.0mm / 0.1765" |
| Tulip | 15º |
| Overall Length | 3.040" or 3.030" |
| Remarks | Standard or Oversize |
| Niote | Must use Kibblewhite® Lightweight Valve Spring Kits when installing White Diamond Valves. |
| Unique Identifier No. | FR327789_01GAUS |
