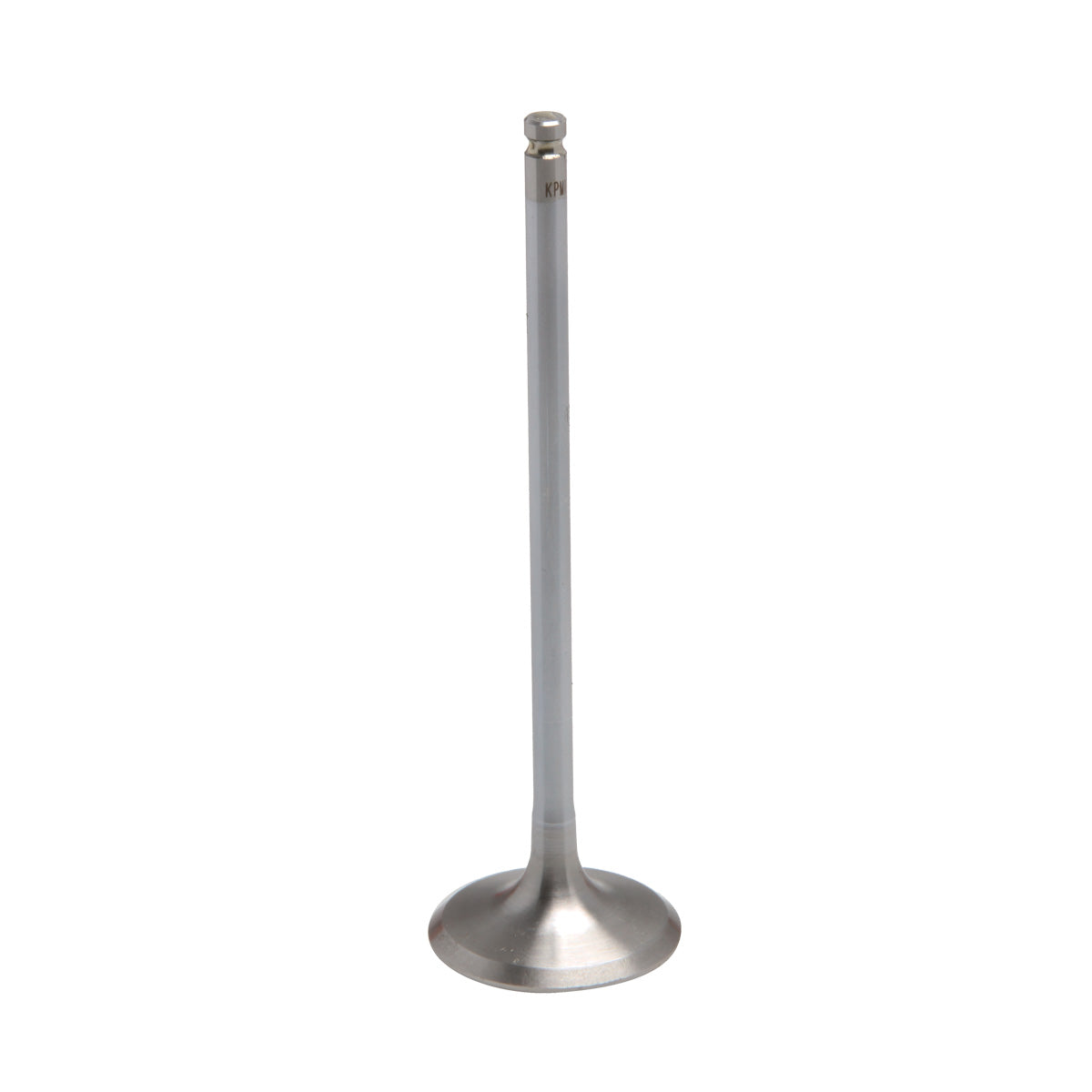

Valve, White Diamond® Stainless, Std. Intake, Rotax®, ACE 900cc, Triple Engines, 2014-2023

Valve, White Diamond® Stainless, Std. Intake, Rotax®, ACE 900cc, Triple Engines, 2014-2023

SKU:91-91312H

Regular price $37.55 USD
Regular price $37.55 USD Sale price $37.55 USD
Sale Sold out

California Prop 65

Maverick X3™ (Max / Turbo's) 2017-’18
Maverick™ (Max / Turbo's) 2019-’23
Spark™ (ACE / 900 / HO / TRIXX) 2014-2023
GTI-GTR-GTS™ 2017
GTI™ 90 2018-2022
GTS™ 90 2018

We fully CNC machine our White Diamond® Valves from a one-piece forging of either EV8 Stainless Steel or Inconel-751. These materials have proven heat and corrosion resistance properties. Each valve is designed using Finite Element Analysis software, and profiles are tested on our computerized flow bench. Strict attention is paid to the surface preparation of the valves, and the purity of the chrome is closely monitored. A 360 degree anode is used to produce the highest possible grade of hard chrome finish. White Diamond® Valves are light, strong, one-piece forgings with profiles that provide excellent flow characteristics.

Type Intake
Material White Diamond® Stainless
Coating Hard Chrome
Quantity
Pkg. of 1
Head Diameter 29.01mm / 1.142"
Stem Diameter 5.0mm / 0.1960"
Tulip 15°
Overall Length 3.305"
Remarks Standard
Unique Identifier No. FR327789_01GAUS
