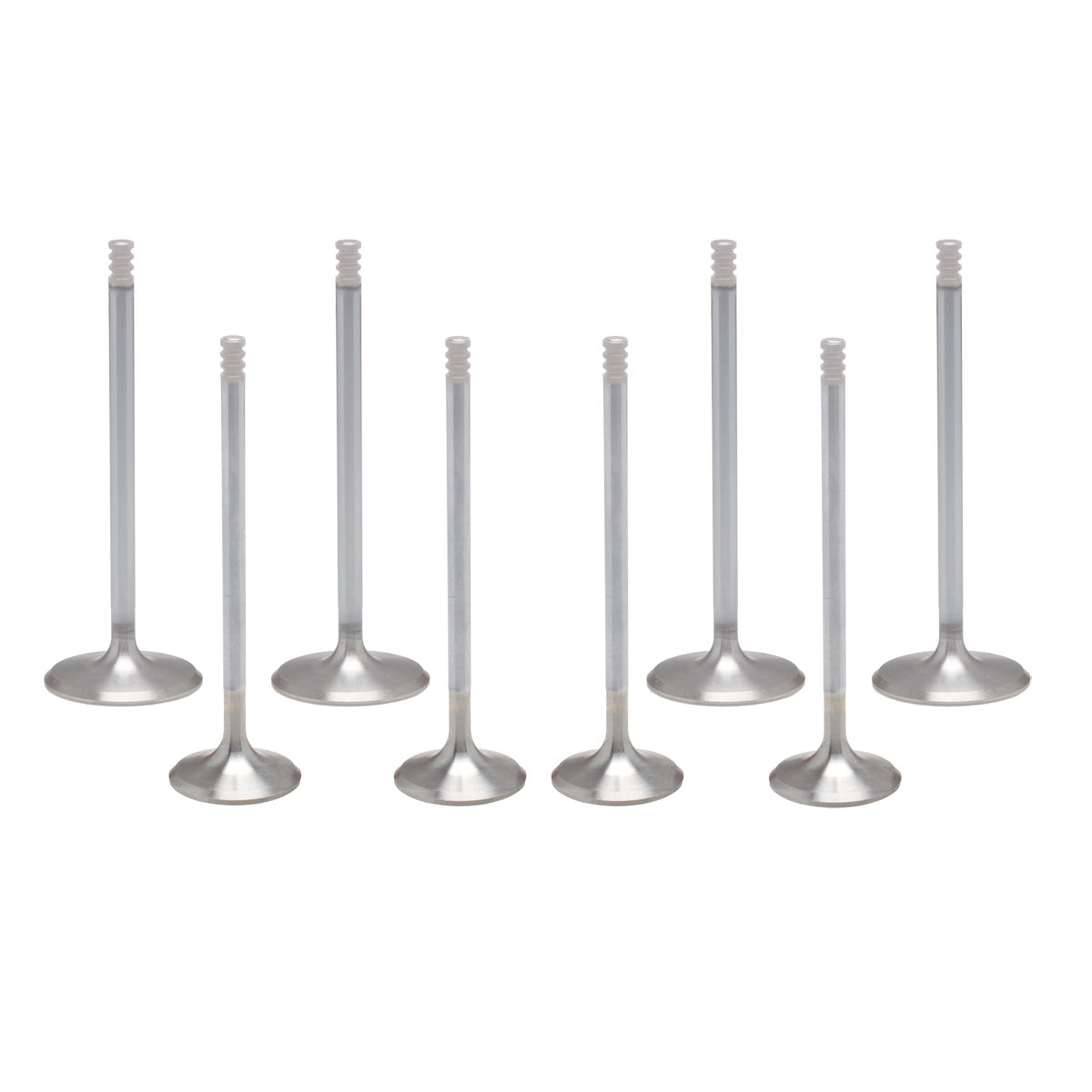

Valve Kit, White Diamond®, Std. Intake/ Exhaust, HD®, M8™ (& CVO’s) 2017-2024
Valve Kit, White Diamond®, Std. Intake/ Exhaust, HD®, M8™ (& CVO’s) 2017-2024
SKU:20-23300
Regular price
$223.29 USD
Regular price
$223.29 USD
Sale price
$223.29 USD
Unit price
per
Couldn't load pickup availability
Kit Includes:
- A Full Set of White Diamond Valves, Stock Head Dia.
We fully CNC machine our White Diamond® Valves from a one-piece forging of either EV8 Stainless Steel or Inconel-751. These materials have proven heat and corrosion resistance properties. Each valve is designed using Finite Element Analysis software, and profiles are tested on our computerized flow bench. Strict attention is paid to the surface preparation of the valves, and the purity of the chrome is closely monitored. A 360 degree anode is used to produce the highest possible grade of hard chrome finish. White Diamond® Valves are light, strong, one piece forgings with profiles that provide excellent flow characteristics.
| Type | Intake/ Exhaust |
| Material | White Diamond® Stainless |
| Coating | Hard Chrome |
| Quantity |
Intake- Pkg. of 4 Exhaust- Pkg. of 4 |
| Intake Head Diameter | 39.90mm / 1.571” |
| Intake Stem Diameter | 6.0mm / 0.2347" |
| Intake Tulip | 10º |
| Intake Overall Length | 4.015" |
| Exhaust Head Diameter | 32.11mm / 1.264” |
| Exhaust Stem Diameter | 6.0mm / 0.2342" |
| Exhaust Tulip | 24º |
| Exhaust Overall Length | 4.050" |
| Remarks | Standard |
| Note | Must use KPMI® Rocker-Shim Spring Kits, lash caps or other hard tip solution for rocker-tip contact. |
| Unique Identifier No. | FR327789_01GAUS |
