Valve Guide Remover, Suzuki®, GSX-1300R™, Hayabusa™, 1999-2024
Valve Guide Remover, Suzuki®, GSX-1300R™, Hayabusa™, 1999-2024
SKU:60-61405
Regular price
$31.54 USD
Regular price
$31.54 USD
Sale price
$31.54 USD
Unit price
per
Couldn't load pickup availability
- Machined to properly fit KPMI® Hayabusa valve guide designs
- Extra-long handles provide ergonomically grooved gripping area and the ability to work in tough to reach situations

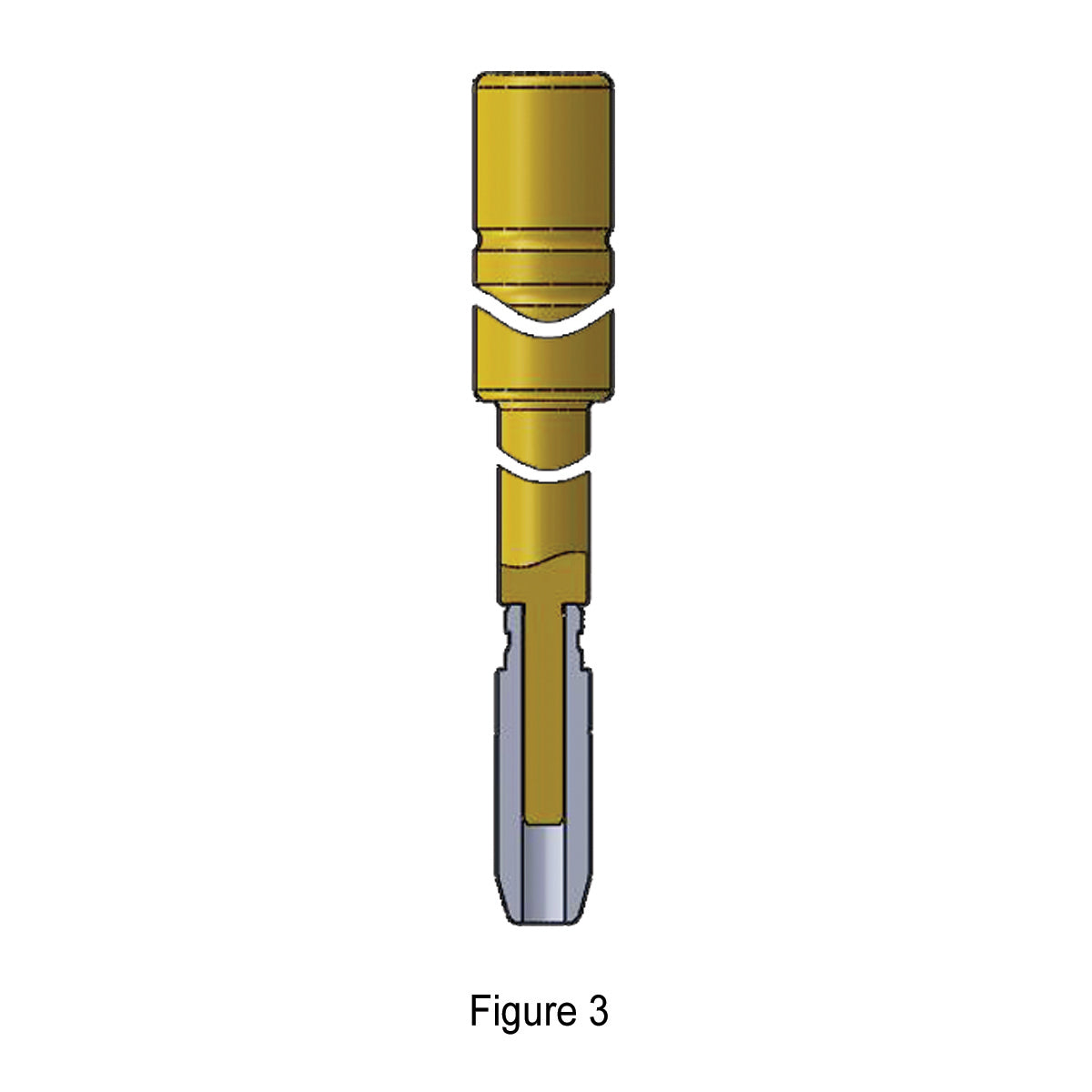

- Guide removal tool allows the user to drive any 5mm guide with a 10mm outer diameter through lengthy guide bores thanks to its added length below the gripping area shown in Figure (2)
- Driver material is a high strength bronze purposefully selected for its shock absorption capabilities allowing for comfortable use as well as compatibility with cast and bronze guides
| Quantity | Pkg. of 1 |
| Reference | See Figure 1 |
| Overall Length "A" | 8.000" |
| Body Diameter "B" | 0.615" |
| Diameter 1 "C" | 0.182" |
| Diameter 2 "D" | 0.397" |
| Length 1 "E" | 1.000" |
| Length 2 "F" | 4.000" |
| Note | Works with other applications (see dimension for compatibility) |
| Unique Identifier No. | FR327789_01GAUS |
