Valve Guide Reamer, HSS, 0.3115", Various Applications
Valve Guide Reamer, HSS, 0.3115", Various Applications
SKU:GR-3115
Couldn't load pickup availability
Triumph® 500 & 650's 1951-1962
Triumph® 650 / 750 1963-1983

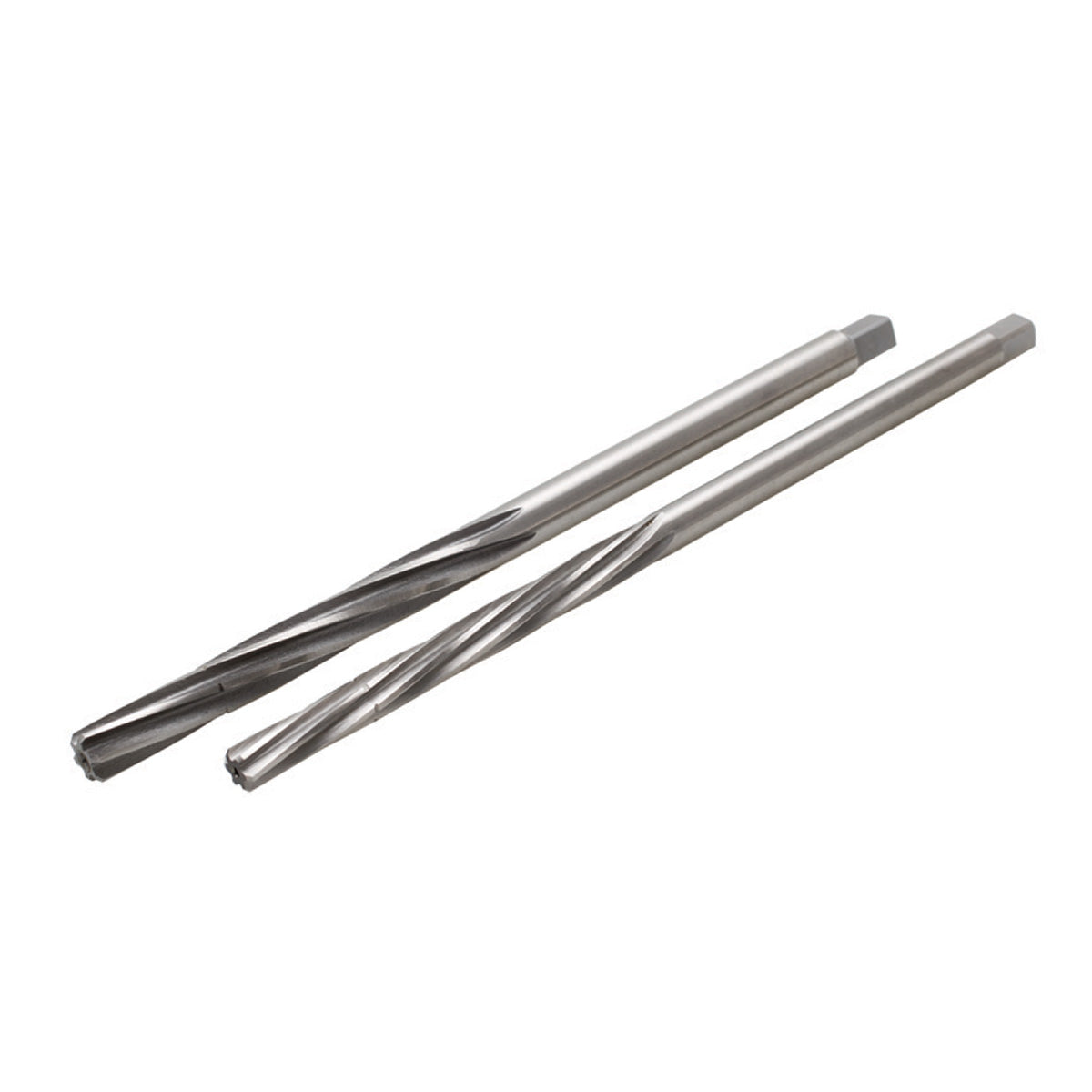

KPMI® valve guide reamers are manufactured from premium hardened High Speed Steel. The advertised finished reamer diameters are ground to: +/- .0002”. These spiral fluted reamers incorporate a 1.00” long pilot (reduced diameter) which gets inserted into an unfinished guide bore, to align the reamer to the valve guide centerline, during the sizing process. These reamers have been specifically designed for KPMI® Manganese Bronze and Cast Iron valve guides. Do not attempt to use these reamers to size C630 Nickel Aluminum Bronze guides. Also, once a reamer is used on Cast Iron, it is not advisable to then use it on a bronze guide.
Click Here to Download KPMI® Guide Sizing Tool Flyer
| Material | Steel |

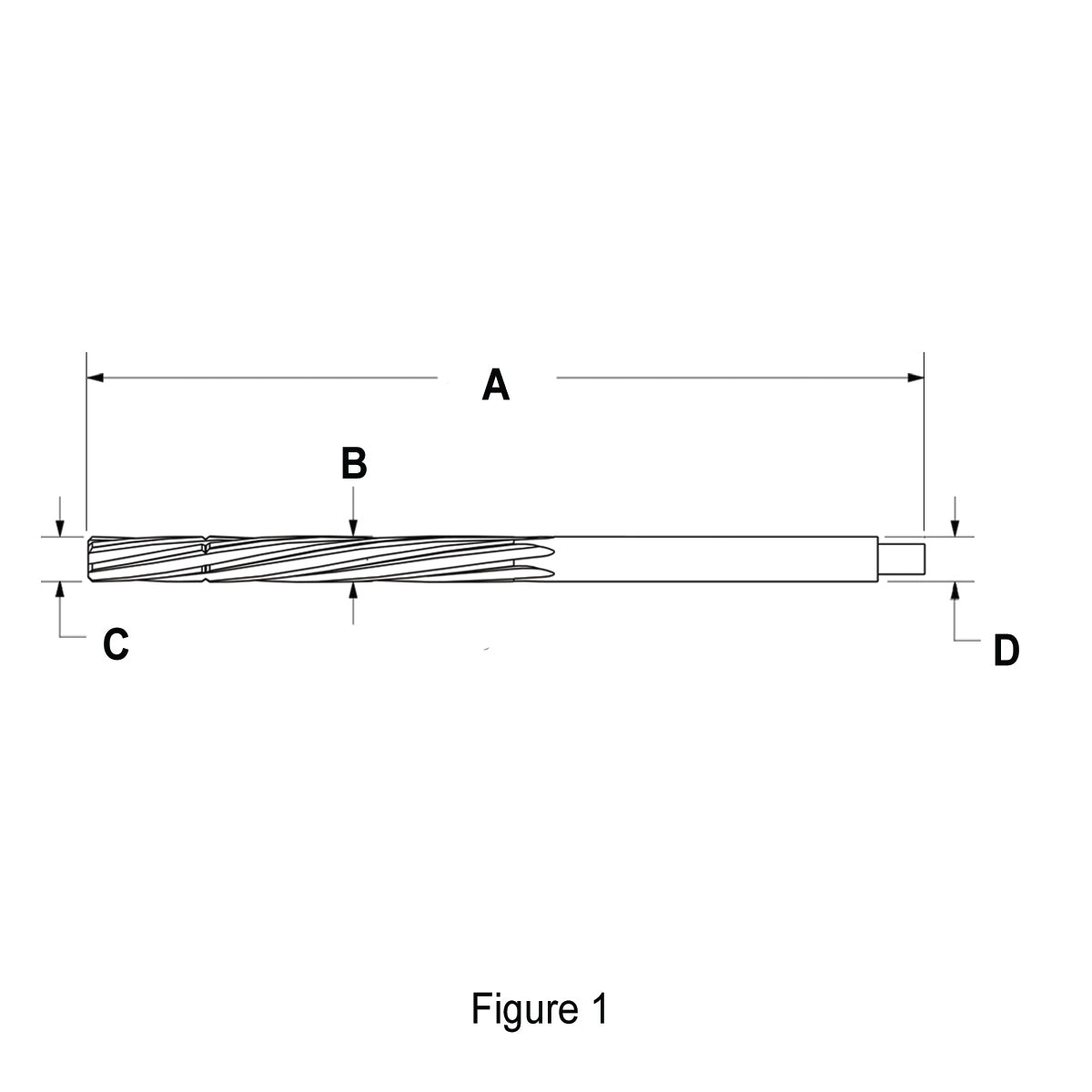

| Reference | See Figure 1 |
| Quantity |
Pkg. of 1 |
| Overall Length "A" | 7.125" |
| Cutting Diameter "B" | 0.3115" |
| Pilot Diameter "C" | 0.305" |
| Shank Diameter "D" | 0.304" |
| Note | These reamers have been specifically designed for KPMI® Manganese Bronze and Cast Iron valve guides. Do not attempt to use these reamers to size C630 Nickel Aluminum Bronze guides. Also, once a reamer is used on Cast Iron, it is not advisable to then use it on a bronze guide. |
| Unique Identifier No. | FR327789_01GAUS |
