Valve Guide Kit, Mng. Brz., Various HD® Applications
Valve Guide Kit, Mng. Brz., Various HD® Applications
SKU:20-24570
Couldn't load pickup availability
Harley-Davidson® Sportster 883cc / 1200cc 2004-2021
Harley-Davidson® Twin Cam 88" - 103" 2005-2017
Harley-Davidson® Buell XB9-XB12 2003-2010
- Standard or +0.001" Oversized Manganese Valve Guides, kited with seals at a savings
These Engine Builder valve guides have been designed with the price conscious builder in mind. Expect the same exacting KPMI® tolerances, but with a reduced toughness / wear-ability when compared to premium C630 Nickel Aluminum Bronze valve guides. The softer Manganese guides are easily reamed, and then can be delicately finished with our high quality ball hones. Now, with any battery operated or electric drill you can ream and hone manganese valve guides in less time and in the absence of expensive honing equipment required to properly size tough Nickel Bronze guides.
Click Here to Download KPMI® Guide Sizing Tool Flyer
Click Here to Download KPMI® Seal Catalog

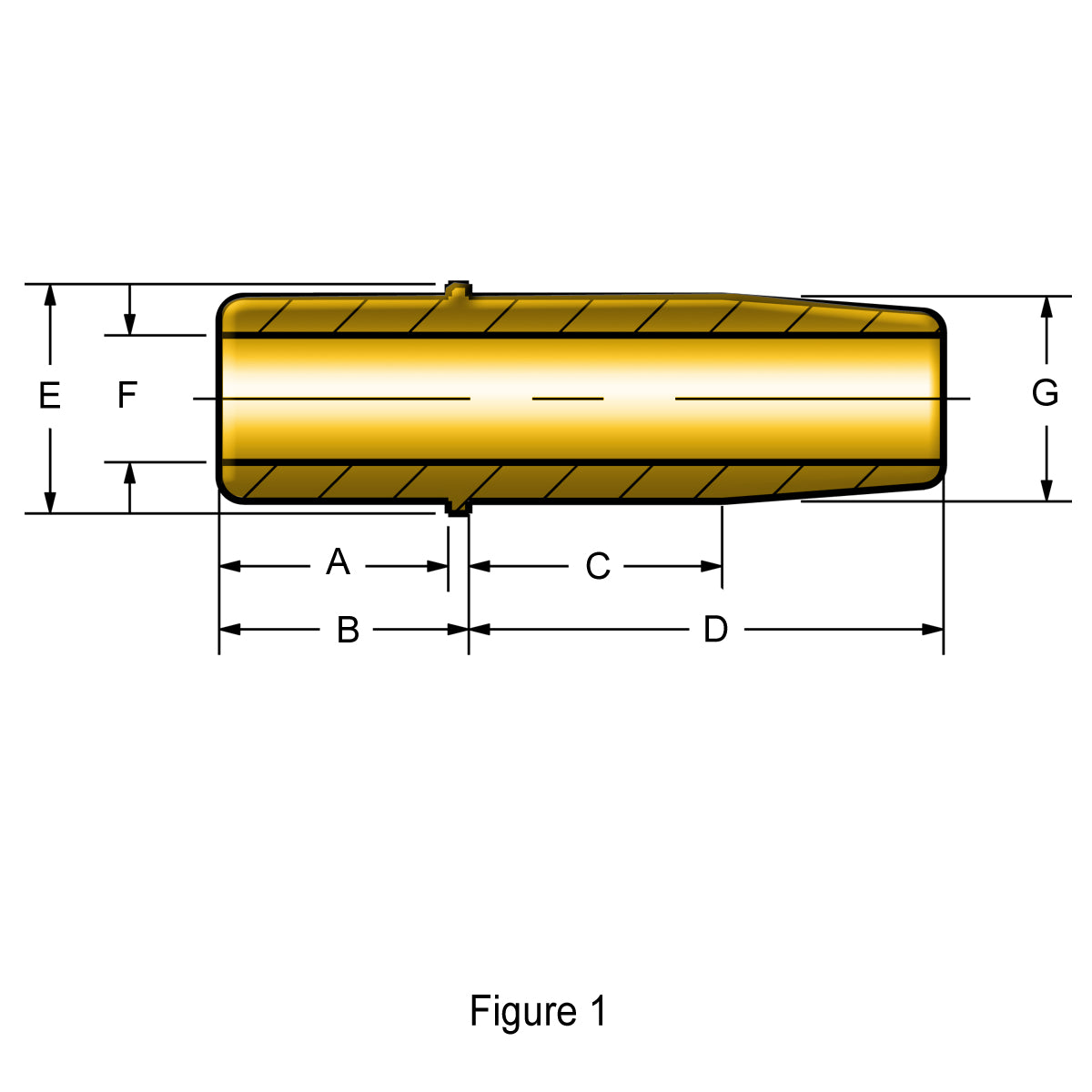

| Kit Includes | 2ea Intake Guides 2ea Exhaust Guides 4ea OEM Style Seals |
| Type | Intake |
| Intake Outside Dia, (G) | 0.5625"(Std.)/ 0.5635"(+0.001") |
| Intake (A) | 0.685" |
| Intake (B) | 0.735" |
| Intake (C) | 0.702" |
| Intake (D) | 1.305" |
| Intake (E) | 0.615" |
| Intake (F) | 0.2760" |
| Exhaust Outside Dia, (G) | 0.5625"(Std.)/ 0.5635"(+0.001") |
| Exhaust (A) | 0.685" |
| Exhaust (B) | 0.735" |
| Exhaust (C) | 0.920" |
| Exhaust (D) | 1.305" |
| Exhaust (E) | 0.615" |
| Exhaust (F) | 0.2755" |
| Unique Identifier No. | FR327789_01GAUS |
