Valve Guide Kit, Mng. Brz., HD®, M8™ (& CVO’s) 2017-2025
Valve Guide Kit, Mng. Brz., HD®, M8™ (& CVO’s) 2017-2025
SKU:20-24580
Regular price
$119.21 USD
Regular price
$119.21 USD
Sale price
$119.21 USD
Unit price
per
Couldn't load pickup availability

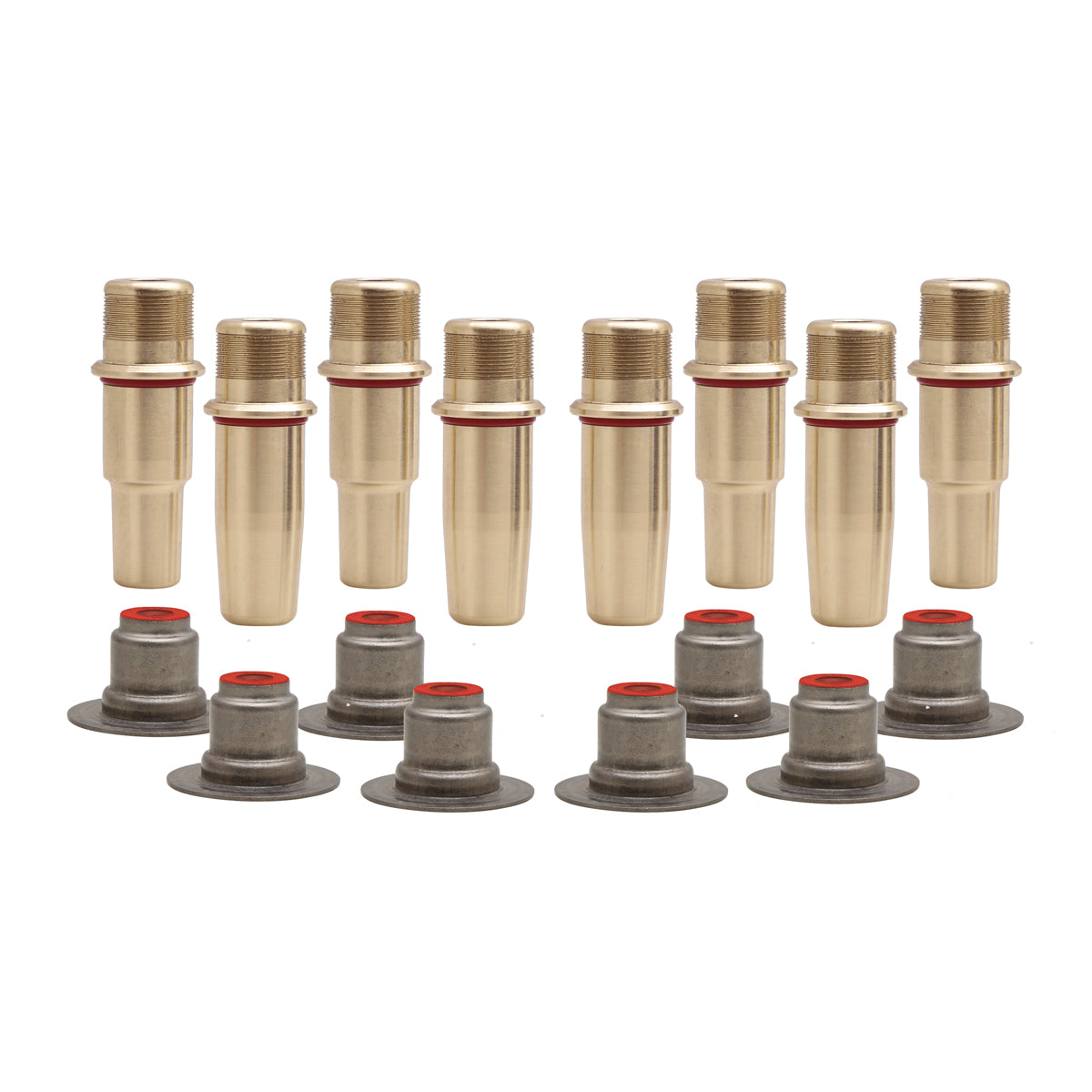

- Standard or +0.001" Oversized Manganese Valve Guides, kited with seals at a savings
These Engine Builder valve guides have been designed with the price conscious builder in mind. Expect the same exacting KPMI® tolerances, but with a reduced toughness / wear-ability when compared to premium C630 Nickel Aluminum Bronze valve guides. The softer Manganese guides are easily reamed, and then can be delicately finished with our high quality ball hones. Now, with any battery operated or electric drill you can ream and hone manganese valve guides in less time and in the absence of expensive honing equipment required to properly size tough Nickel Bronze guides.
Click Here to Download KPMI® Guide Sizing Tool Flyer
Click Here to Download KPMI® Seal Catalog
| Kit Includes | Intake- Pkg. of 4 Exhaust - Pkg. of 4 O.E.M. Style Seal- Pkg. of 8 |
| Type | Intake/ Exhaust |

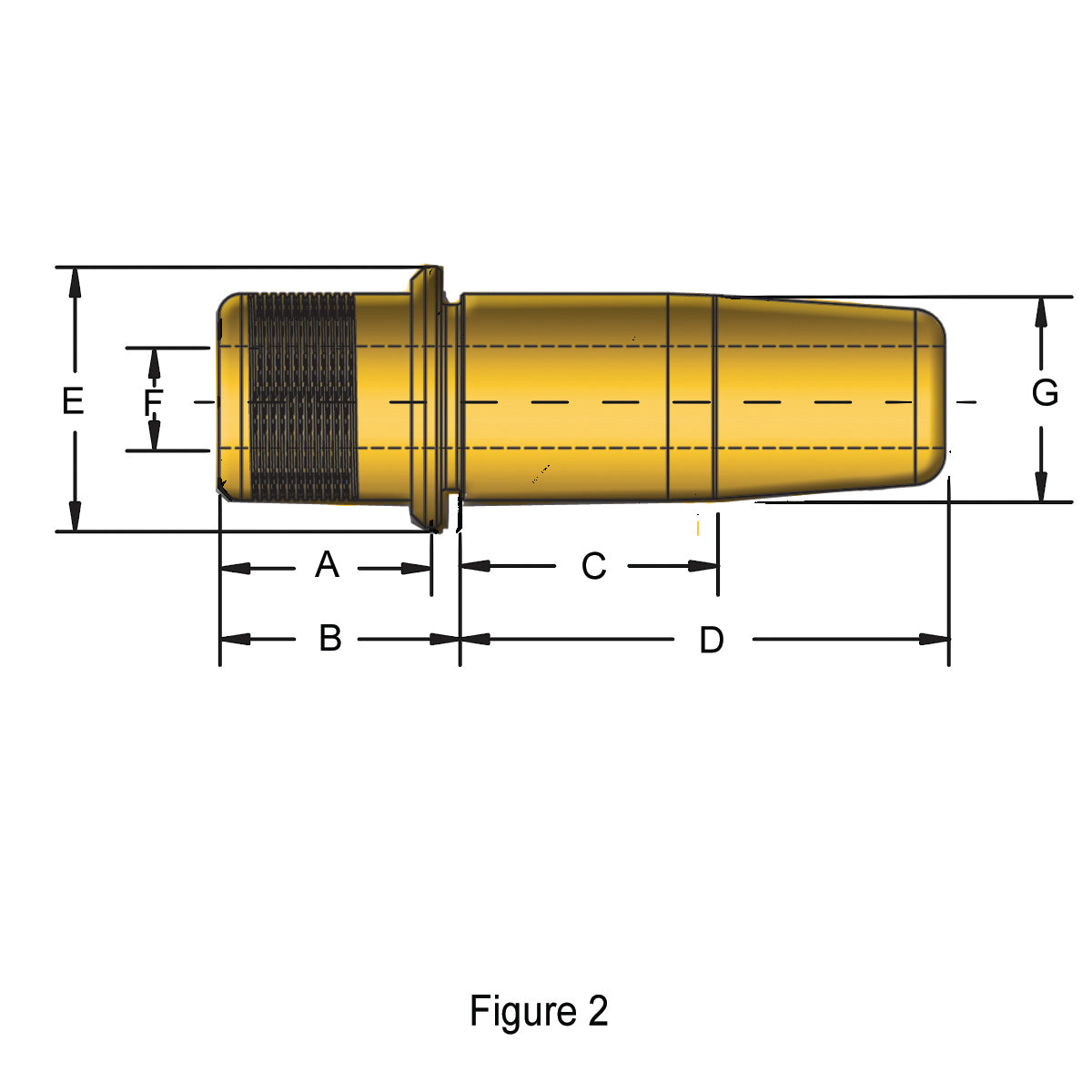

| Outside Dia. (G) | 0.4750" (Std.) / 0.4760"(+0.001") |
| A | 0.425" |
| B | 0.490" |
| C | 0.540" |
| D | 1.110" |
| E | 0.600" |
| F | 0.2347" |
| Unique Identifier No. | FR327789_01GAUS |
