Top End Service Kit, Stainless Conv., 0.440" Lift, Polaris®, Predator™/ Outlaw™ 500 2003-2007

Top End Service Kit, Stainless Conv., 0.440" Lift, Polaris®, Predator™/ Outlaw™ 500 2003-2007

82-83250

$660.02 USD
$660.02 USD $660.02 USD
Sale Sold out

California Prop 65

Features:

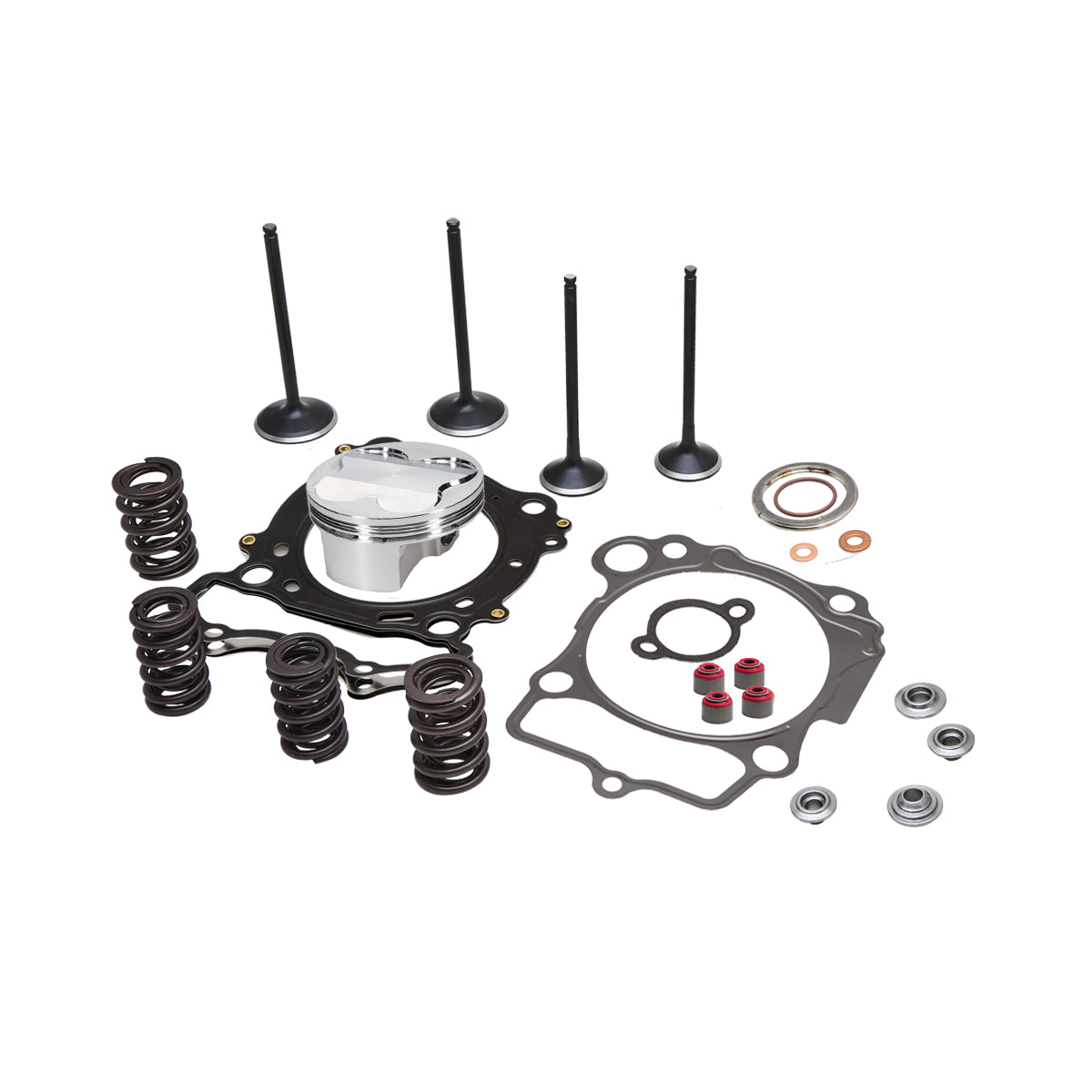

  • Complete piston assembly, gasket kit and valves to rebuild or service your rig's top end
  • Cost saving built into purchasing these components as a kit
  • Designed specifically for the performance demands of MX Bikes, ATV's, and UTV's
  • 2618 Alloy Fully CNC Machined Piston with performance skirt coating
  • KPMI® High Performance Valvetrain is known to outlast OEM by twice the service life
  • Lightweight Racing Spring Kit compatible with high performance cams


IMPORTANT NOTE:The piston assembly (piston, rings, pin and pin clips) in this kit are designed to work together as a system. When used complete, the piston assembly can be used as an OEM replacement. The individual components are NOT INTERCHANGEABLE with O.E.M. piston assembly components.

The product image may not be accurate on the page. Please refer to the description and specifications before purchasing.

Installation Instructions Click Here
Type Intake/ Exhaust
Retainer Material Titanium
Valve Lift 0.440"
Installed Height 1.375"
Seat Pressure 66#
Open Pressure 199#
@ Lift 0.440"
Valve Type  Intake/ Exhaust
Valve Material Black Diamond™ Stainless
Coating Black Nitroneg
Intake Head Diameter 37.00mm / 1.457"
Intake Stem Diameter 6.0mm/ 0.2345"
Intake Tulip 20º
Intake Overall Length 4.015"
Exhaust Head Diameter 32.00mm / 1.260"
Exhaust Stem Diameter 6.0mm/ 0.2345"
Exhaust Tulip 22º
Exhaust Overall Length 4.050"
Remarks Standard
Unique Identifier No. FR327789_01GAUSt
