Top End Service Kit, Stainless Conv., 0.440" Lift, Honda®, CRF™ 450R, 2002-2006
Top End Service Kit, Stainless Conv., 0.440" Lift, Honda®, CRF™ 450R, 2002-2006
SKU:30-32700
Regular price
$660.02 USD
Regular price
$660.02 USD
Sale price
$660.02 USD
Unit price
per
Couldn't load pickup availability

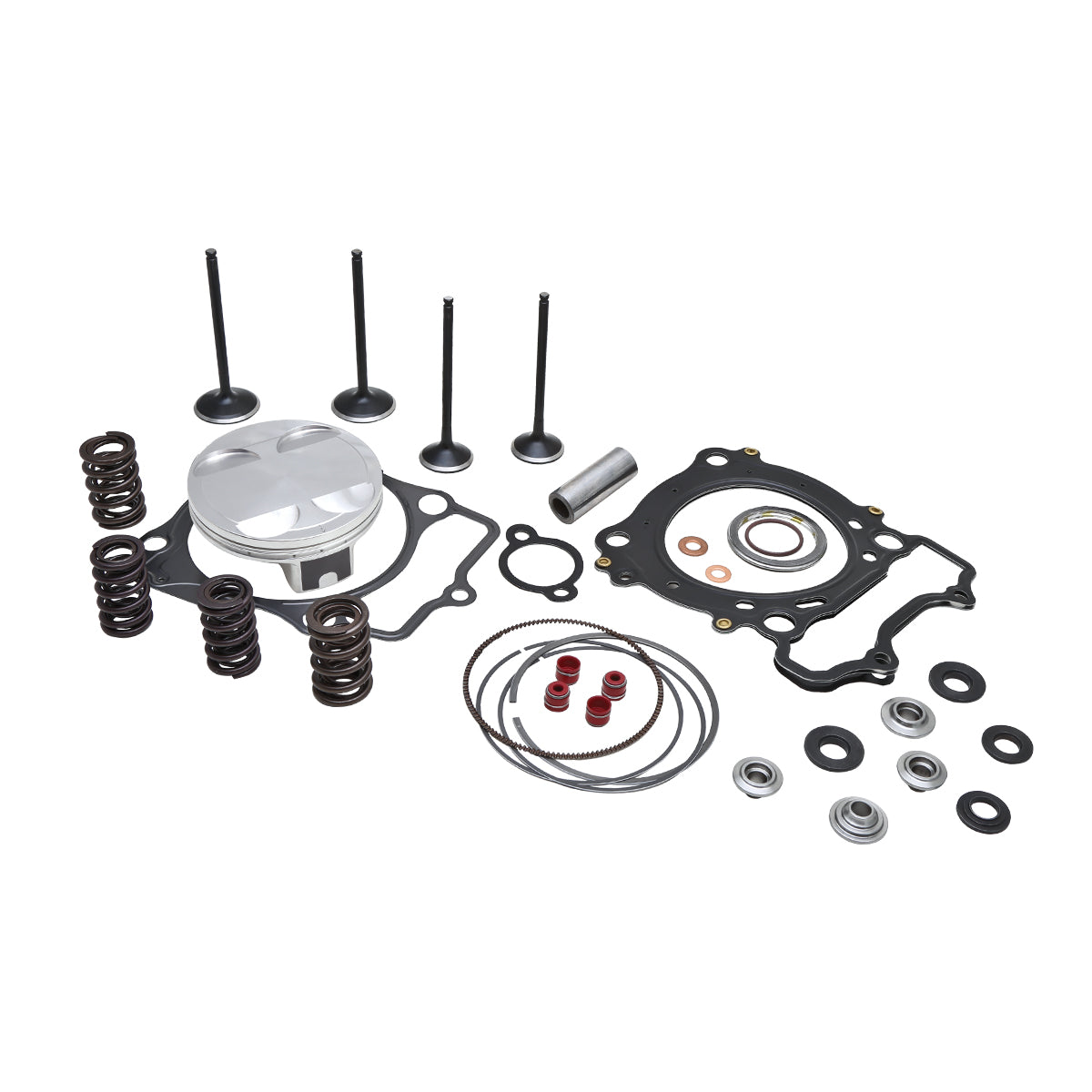

Kit Includes:
- Piston, Rings, Clips and Pin – (2618 Alloy Fully CNC Machined Race Piston)
- Complete Top End Gasket Kit by Cometic™
- KPMI® S.S. Black Diamond™ Valves, Stock Head Dia. (All Valves)
- Complete Dual Spring / High Performance Titanium Retainer Spring Kit
- Complete piston assembly, gasket kit and valves to rebuild or service your bikes top end
- Cost saving built into purchasing these components as a kit
- Designed specifically for the performance demands of MX Bikes and Quads
- Pistons designed to maintain stock compression
- 2618 Alloy Fully CNC Machined Piston with performance skirt coating
- KPMI® High Performance Valvetrain is known to outlast OEM by twice the service life
- Lightweight Racing Spring Kit compatible with high performance cams
IMPORTANT NOTE: The piston assembly (piston, rings, pin and pin clips) in this kit are designed to work together as a system. When used complete, the piston assembly can be used as an OEM replacement. The individual components are NOT INTERCHANGEABLE with O.E.M. piston assembly components.
| Installation Instructions |
Click Here |
| Piston Bore Size | 96.00mm |
| Type | Intake/ Exhaust |
| Retainer Material | Titanium |
| Intake Valve Lift | 0.440" |
| Intake Installed Height | 1.215" |
| Intake Seat Pressure | 40# |
| Intake Open Pressure | 147# |
| Intake @ Lift | 0.440" |
| Exhaust Valve Lift | 0.440" |
| Exhaust Installed Height | 1.365" |
| Exhaust Seat Pressure | 70# |
| Exhaust Open Pressure | 203# |
| Exhaust @ Lift | 0.440" |
| Valve Type |
Intake/ Exhaust |
| Valve Material | Black Diamond™ Stainless |
| Coating | Black Nitroneg |
| Intake Head Diameter | 36.00mm/ 1.417" |
| Intake Stem Diameter | 5.5mm/ 0.2158" |
| Intake Tulip | 20º |
| Intake Overall Length | 3.315" |
| Exhaust Head Diameter | 31.00mm/ 1.220" |
| Exhaust Stem Diameter | 5.0mm/ 0.1957" |
| Exhaust Tulip | 20º |
| Exhaust Overall Length | 3.310" |
| Remarks | Standard |
| Unique Identifier No. | FR327789_01GAUSt |
