Top End Service Kit, Stainless Conv., 0.435" Lift, Polaris®, Various 1000's 2014-2023
Top End Service Kit, Stainless Conv., 0.435" Lift, Polaris®, Various 1000's 2014-2023
SKU:82-83950
Regular price
$1,150.24 USD
Regular price
$1,150.24 USD
Sale price
$1,150.24 USD
Unit price
per
Features:

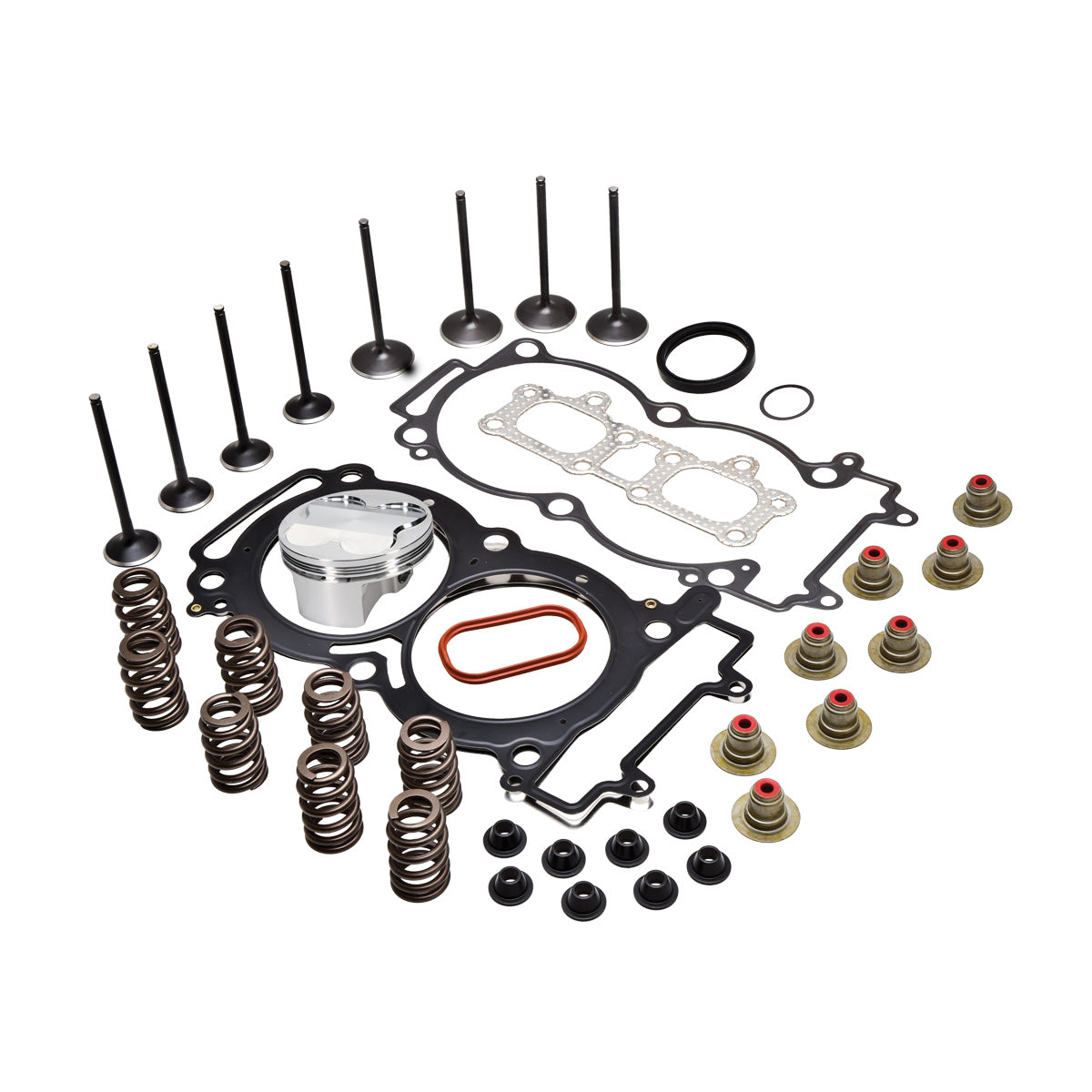

- Complete piston assembly, gasket kit and valves to rebuild or service your rig's top end
- Cost saving built into purchasing these components as a kit
- Designed specifically for the performance demands of MX Bikes, ATV's, and UTV's
- 2618 Alloy Fully CNC Machined Piston with performance skirt coating
- KPMI® High Performance Valvetrain is known to outlast OEM by twice the service life
- Lightweight Racing Spring Kit compatible with high performance cams
IMPORTANT NOTE:The piston assembly (piston, rings, pin and pin clips) in this kit are designed to work together as a system. When used complete, the piston assembly can be used as an OEM replacement. The individual components are NOT INTERCHANGEABLE with O.E.M. piston assembly components.
The product image may not be accurate on the page. Please refer to the description and specifications before purchasing.
Installation Instructions |
Click Here |
Piston Bore Size | 93.00mm |
Type | Intake/ Exhaust |
Retainer Material | Titanium |
Valve Lift | 0.435" |
Installed Height | 1.360" |
Seat Pressure | 80# |
Open Pressure | 205# |
@ Lift | 0.435" |
Valve Type |
Intake/ Exhaust |
Valve Material | Black Diamond™ Stainless |
Coating | Black Nitroneg |
Intake Head Diameter | 37.72mm / 1.485" |
Intake Stem Diameter | 5.5mm/ 0.2160" |
Intake Tulip | 17º |
Intake Overall Length | 3.775" |
Exhaust Head Diameter | 29.21mm / 1.150" |
Exhaust Stem Diameter | 5.5mm/ 0.2155" |
Exhaust Tulip | 25º |
Exhaust Overall Length | 3.805" |
Remarks | Standard |
Unique Identifier No. | FR327789_01GAUSt |
