Top End Service Kit, Stainless Conv., 0.415" Lift, Suzuki®, LTR™ 450, 2006-2009

Top End Service Kit, Stainless Conv., 0.415" Lift, Suzuki®, LTR™ 450, 2006-2009

SKU:60-61900

Regular price $707.70 USD
Regular price $707.70 USD Sale price $707.70 USD
Sale Sold out

California Prop 65

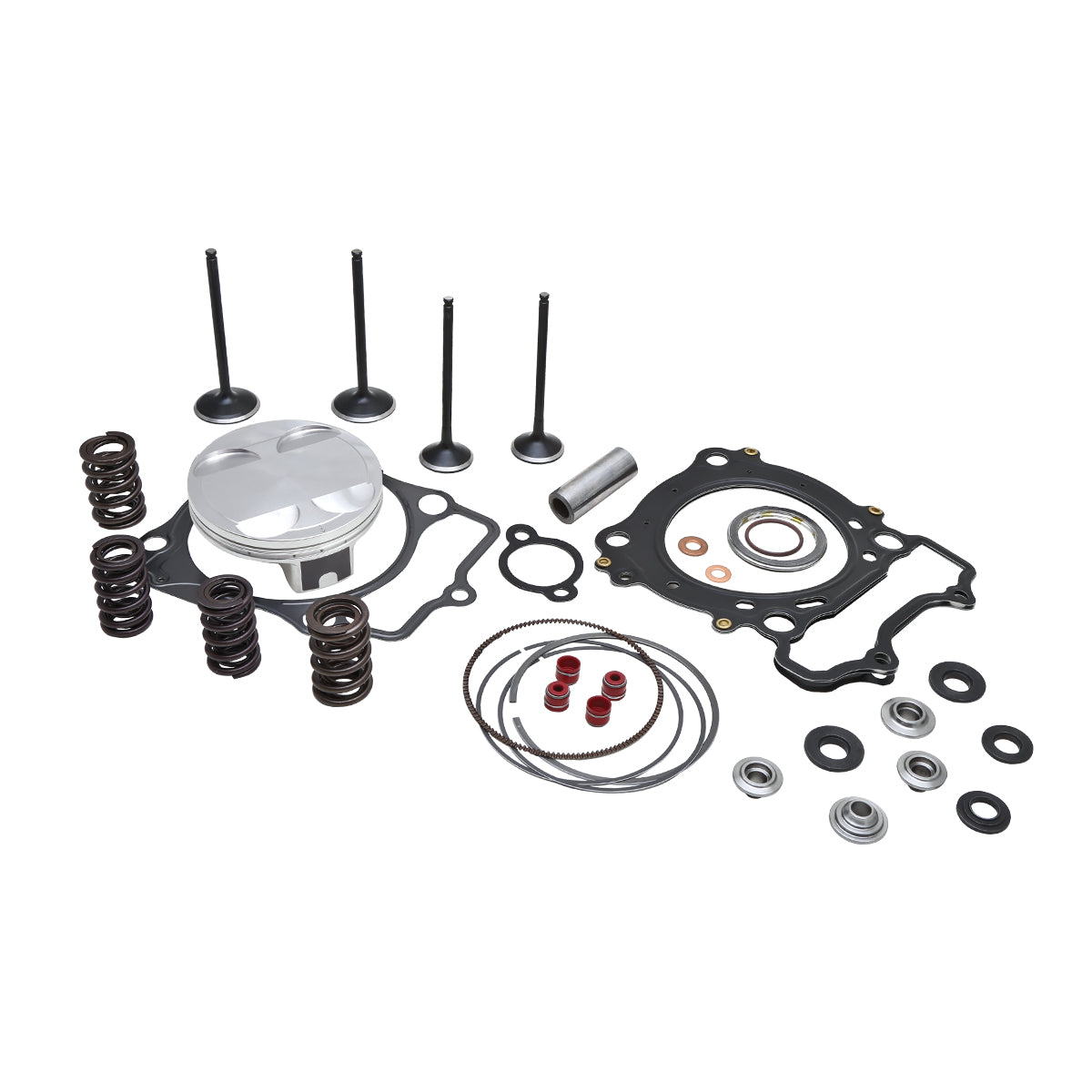

Kit Includes:

  • Piston, Rings, Clips and Pin – (2618 Alloy Fully CNC Machined Race Piston)
  • Complete Top End Gasket Kit by Cometic™
  • KPMI® S.S. Black Diamond™ Valves, Stock Head Dia. (All Valves)
  • Complete Dual Spring / High Performance Titanium Retainer Spring Kit

Features:

  • Complete piston assembly, gasket kit and valves to rebuild or service your bikes top end
  • Cost saving built into purchasing these components as a kit
  • Designed specifically for the performance demands of MX Bikes and Quads
  • Pistons designed to maintain stock compression
  • 2618 Alloy Fully CNC Machined Piston with performance skirt coating
  • KPMI® High Performance Valvetrain is known to outlast OEM by twice the service life
  • Lightweight Racing Spring Kit compatible with high performance cams


IMPORTANT NOTE: The piston assembly (piston, rings, pin and pin clips) in this kit are designed to work together as a system. When used complete, the piston assembly can be used as an OEM replacement. The individual components are NOT INTERCHANGEABLE with O.E.M. piston assembly components.

The product image may not be accurate on the page. Please refer to the description and specifications before purchasing.

Installation Instructions Click Here
Piston Bore Size 95.50mm
Type Intake/ Exhaust
Retainer Material Titanium
Intake Valve Lift 0.415"
Intake Installed Height 1.190"
Intake Seat Pressure 61#
Intake Open Pressure 168#
Intake @ Lift 0.415"
Exhaust Valve Lift 0.415"
Exhaust Installed Height 1.215"
Exhaust Seat Pressure 56#
Exhaust Open Pressure 157#
Exhaust @ Lift 0.415"
Valve Type  Intake/ Exhaust
Valve Material Black Diamond™ Stainless
Coating Black Nitroneg
Intake Head Diameter 36.00mm/ 1.418"
Intake Stem Diameter 5.5mm/ 0.2155"
Intake Tulip 20º
Intake Overall Length 3.210"
Exhaust Head Diameter 29.00mm/ 1.142"
Exhaust Stem Diameter 5.5mm/ 0.2160"
Exhaust Tulip 20º
Exhaust Overall Length 3.190"
Remarks Standard
Unique Identifier No. FR327789_01GAUSt
