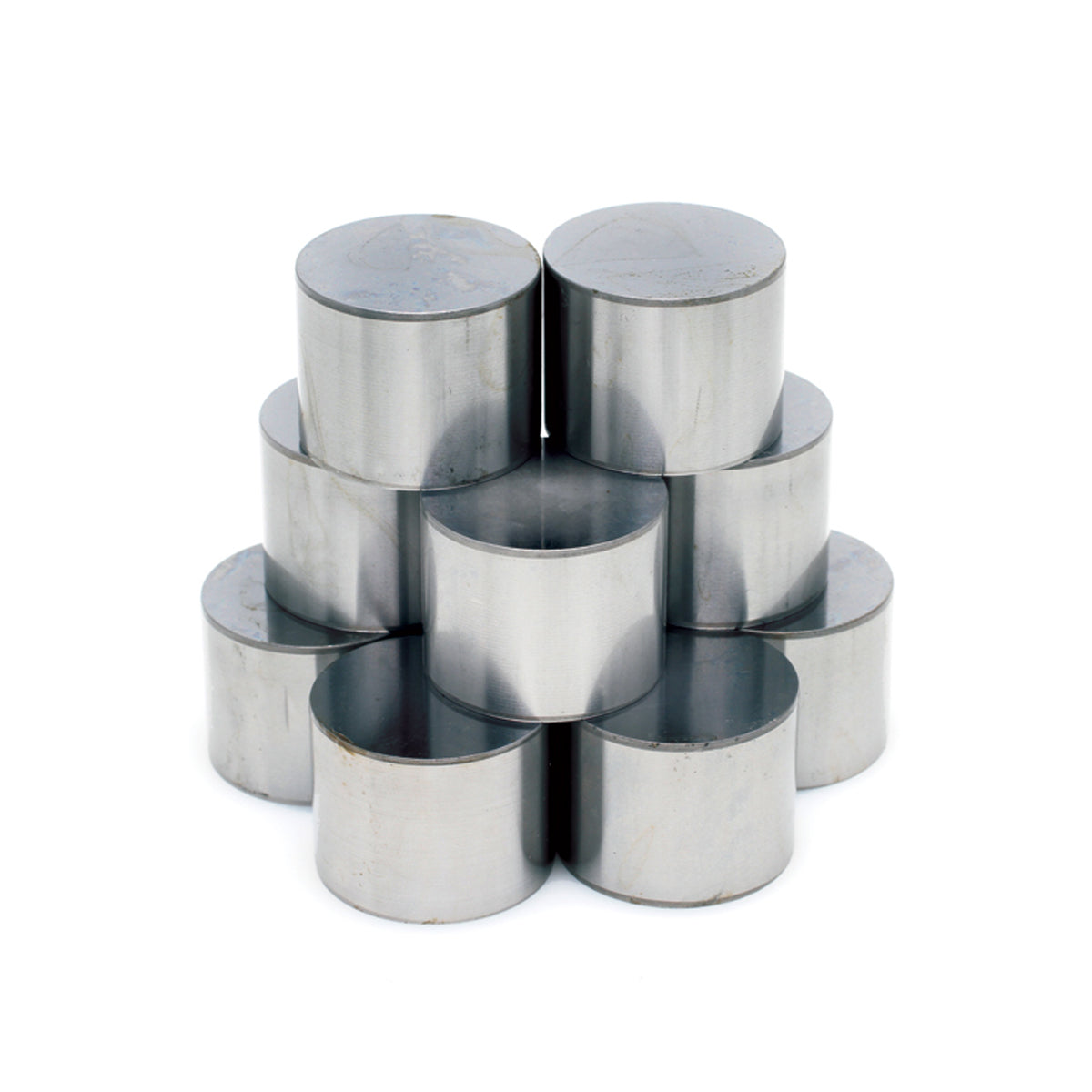

Tappet, Shim Under Conv., H.T. Steel, 28.00mm OD, Various Yamaha® Applications

Tappet, Shim Under Conv., H.T. Steel, 28.00mm OD, Various Yamaha® Applications

SKU:80-1020

Regular price $1,075.81 USD
Regular price $1,075.81 USD Sale price $1,075.81 USD
Sale Sold out

California Prop 65

Yamaha® FJ™ 100/ 1200 1984-1993
Yamaha® V-MAX™ 1985-2007

KPMI® engineers design our tappets using advanced finite element analysis (FEA) software. This software allows our engineers to lighten the tappets without sacrificing strength, which creates the strongest and lightest tappets possible. The tappets are then machined from billet aircraft quality steel. After machining the tappets undergo a proprietary heat treatment process that creates a hard surface and a non-brittle core. These materials and processes maximize toughness and wear resistance. To finish the tappets they are OD ground and then the contact area is lapped and polished to create a very flat and smooth surface , the cam to run against. KPMI® tappets are run in High Performance automotive and motorcycle racing applications including Motocross, Flat Track Racing, Road Racing, Drag Racing, and Land Speed Racing.

Type Intake/ Exhaust
Material Billet Aircraft Alloy Steel
Coating H.T. Steel
Quantity Pkg. of 16

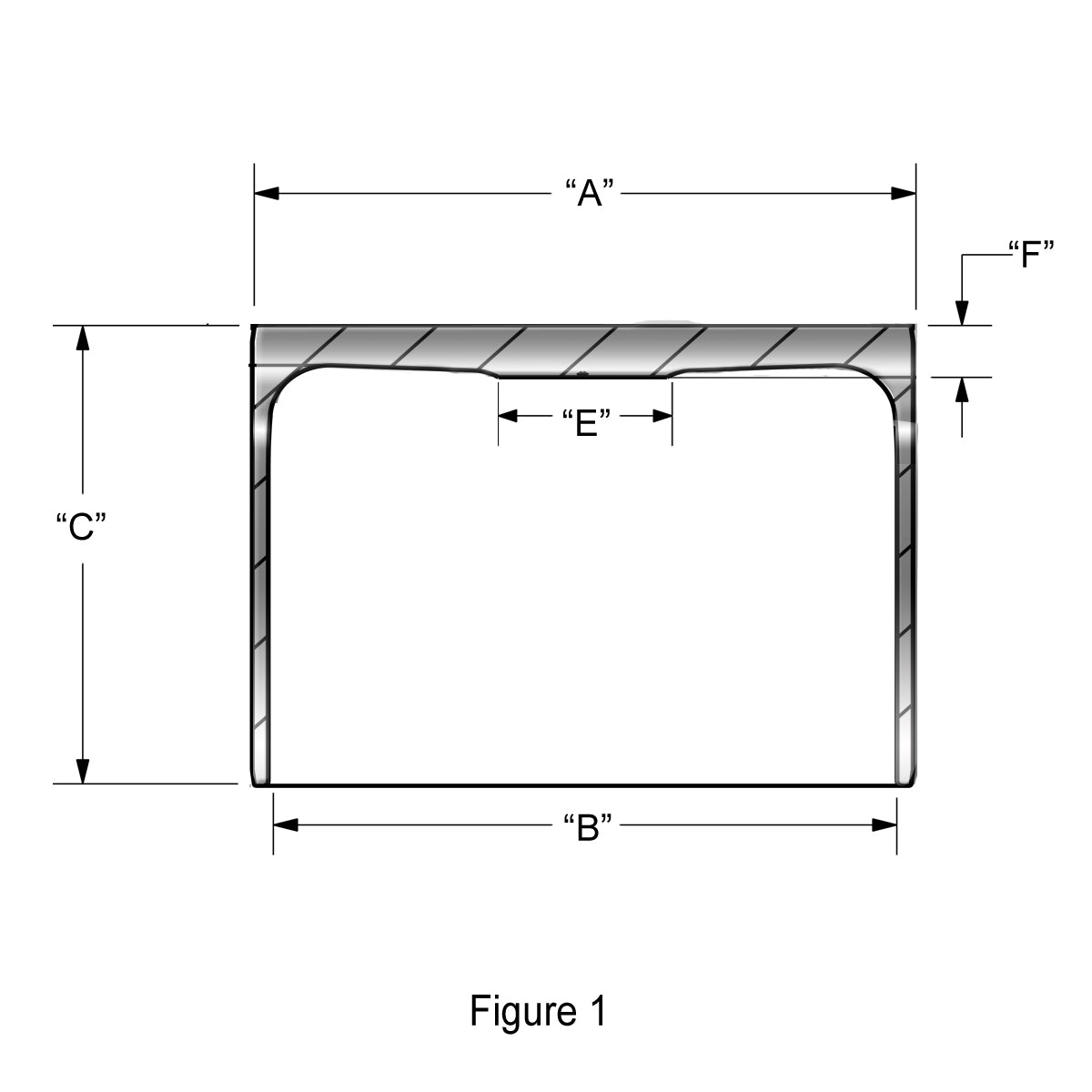

Reference See Figure 1
Outside Diameter "A" 28.00mm / 1.1016"
Inside Diameter "B" 1.040"
Overall Length "C" 0.860"
Button Diameter "E" 0.310"
Roof Thickness "F" 0.135"
Unique Identifier No. FR327789_01GAUS
