Tappet Block, Bronze, Triumph®, 650 / 750, 1969-1983
Tappet Block, Bronze, Triumph®, 650 / 750, 1969-1983
SKU:70-0448
Regular price
$50.42 USD
Regular price
$50.42 USD
Sale price
$50.42 USD
Unit price
per
- Precision ground OD and reamed bores allow for easy installation exceeding OEM tolerances
- Bores are sized with a piloted reamer and finished with a ball hone to achieve proper running clearance and surface finish after the tappet block is installed
- Bronze tappet blocks are designed for high performance applications by taking advantage of excellent heat transfer capabilities, high lubricity, and durability
- Cast iron tappet blocks are machined from a proprietary cast iron material with the same design features as our bronze version, providing a more affordable alternative
Material | Bronze - 674 |
Type | Bottom |

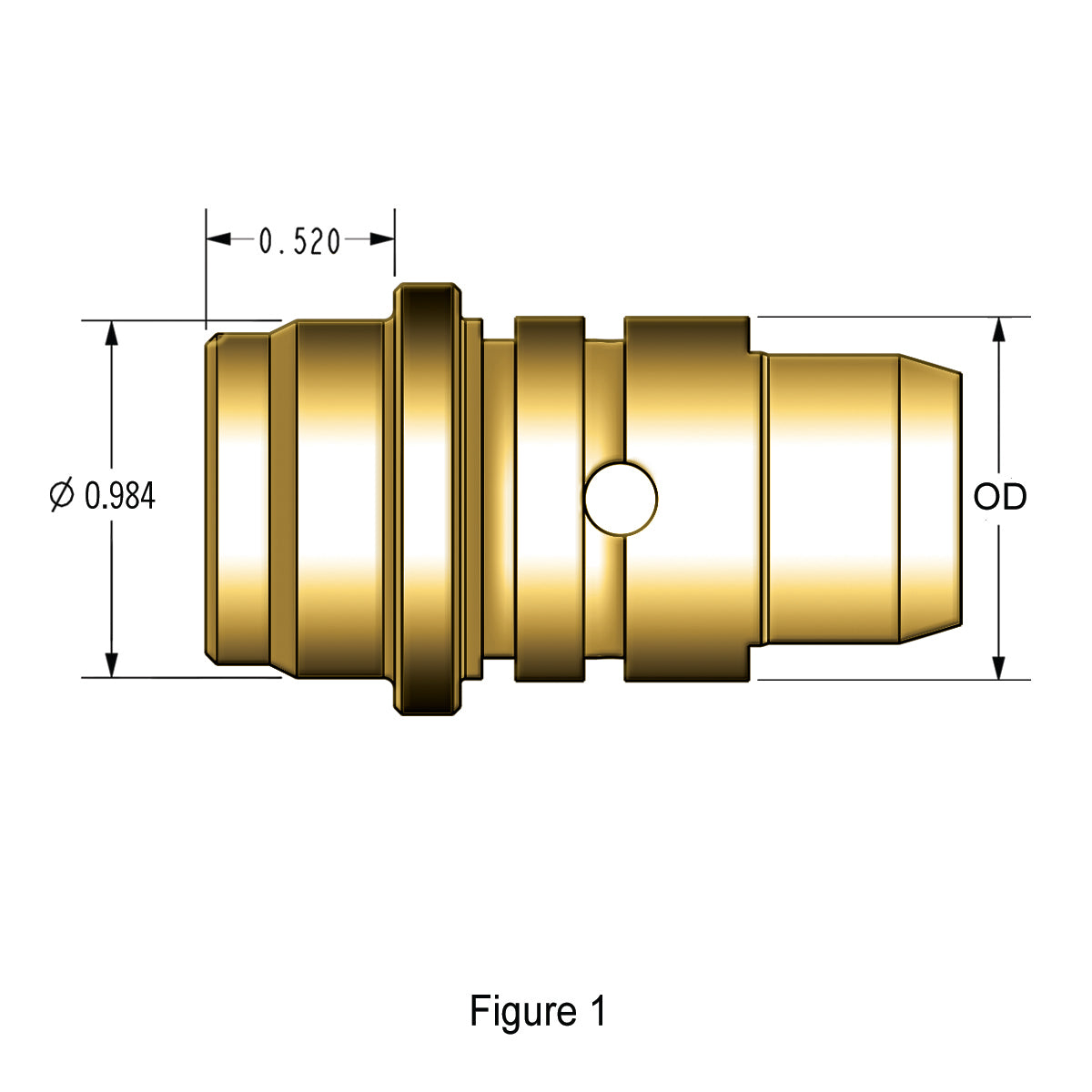

Reference | See Figure 1 |
Quantity | Various |
Camshaft Lift | 0.450" |
Outside Diameter | 1.0005" |
Note | See KPMI® P/N GR-3120/ CR-3120 for the piloted reamer and P/N GH-3125 at www.kpmi.us for the 5/16" ball hone suitable for this application. |
Unique Identifier No. | FR327789_01GAUS |
