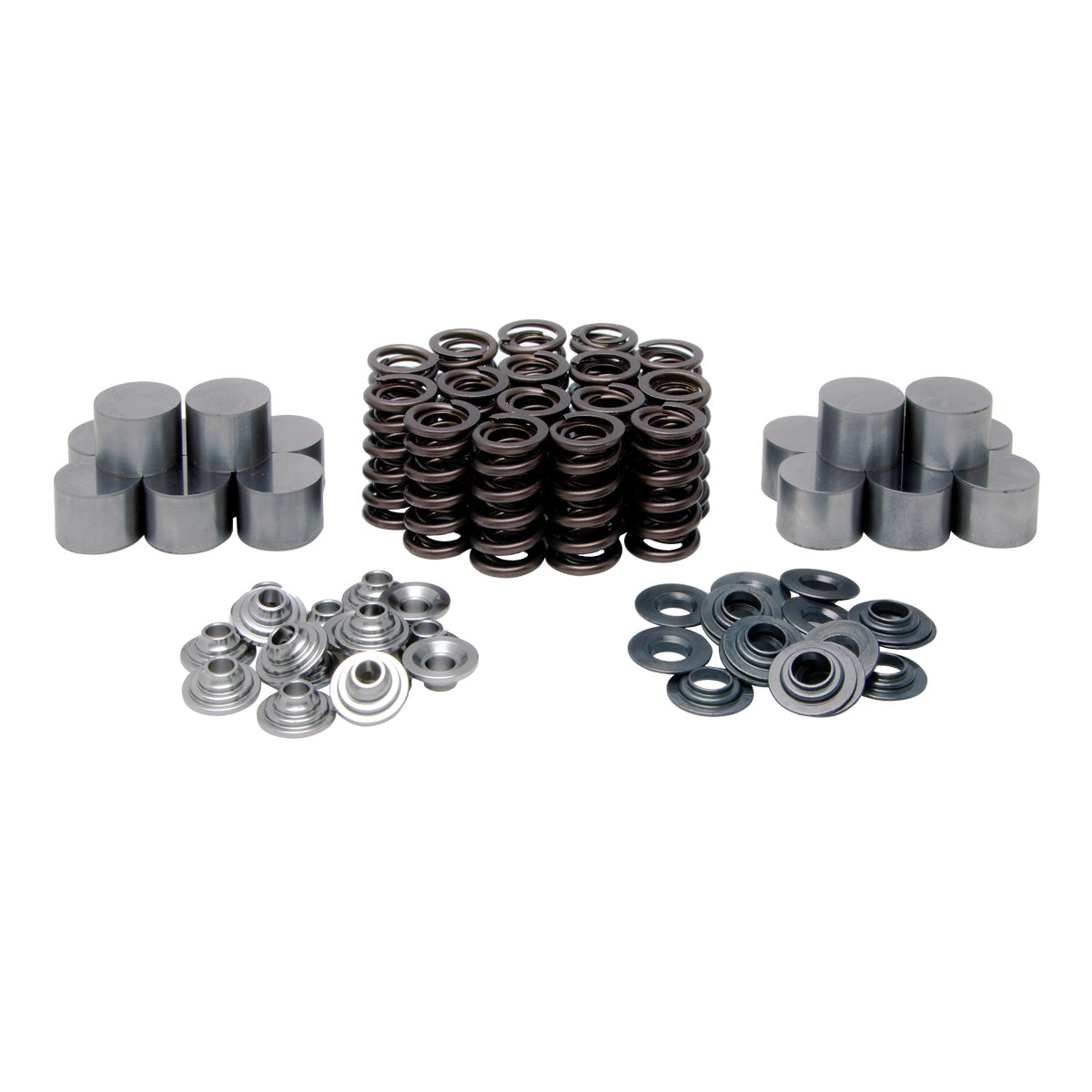

Shim-in-Tappet Spring Kit, Titanium, 0.490" Lift, Suzuki®, GSX-1300R™ Hayabusa™, 1999-2023

Shim-in-Tappet Spring Kit, Titanium, 0.490" Lift, Suzuki®, GSX-1300R™ Hayabusa™, 1999-2023

SKU:60-60750

Regular price $1,489.33 USD
Regular price $1,489.33 USD Sale price $1,489.33 USD
Sale Sold out

California Prop 65

Since 1939, KPMI® has taken great pride in our ability to design innovative performance improvements for valvetrains. This innovative ability has never been more apparent than with the development of the high tech lightweight racing valve spring kits for the incredibly stressed and torturous environment in today's high revving 4-stroke engines.
The challenge to engineer a valvetrain that would outperform OEM systems, that in some cases included titanium components, was not an easy one. This task would require the concentrated efforts of every member of KPMI®'s design team. It was apparent early on that an OEM style spring with a bit more pressure was not going to be the complete answer for these engines. Working together as a team enabled KPMI® to evolve with a "unified system" approach. In fact, these innovative high performance lightweight valve spring kits, would not only outperform factory parts, but outlive them as well.
Each KPMI® spring kit is designed for its specific application, taking into account several critical parameters including; cam profiles, harmonics, natural frequency of the springs, valvetrain mass, required pressure, wire stress, fatigue life, and engine rpm, just to name a few!
Today KPMI® proudly offers complete high performance lightweight valve spring kits for a host of applications.

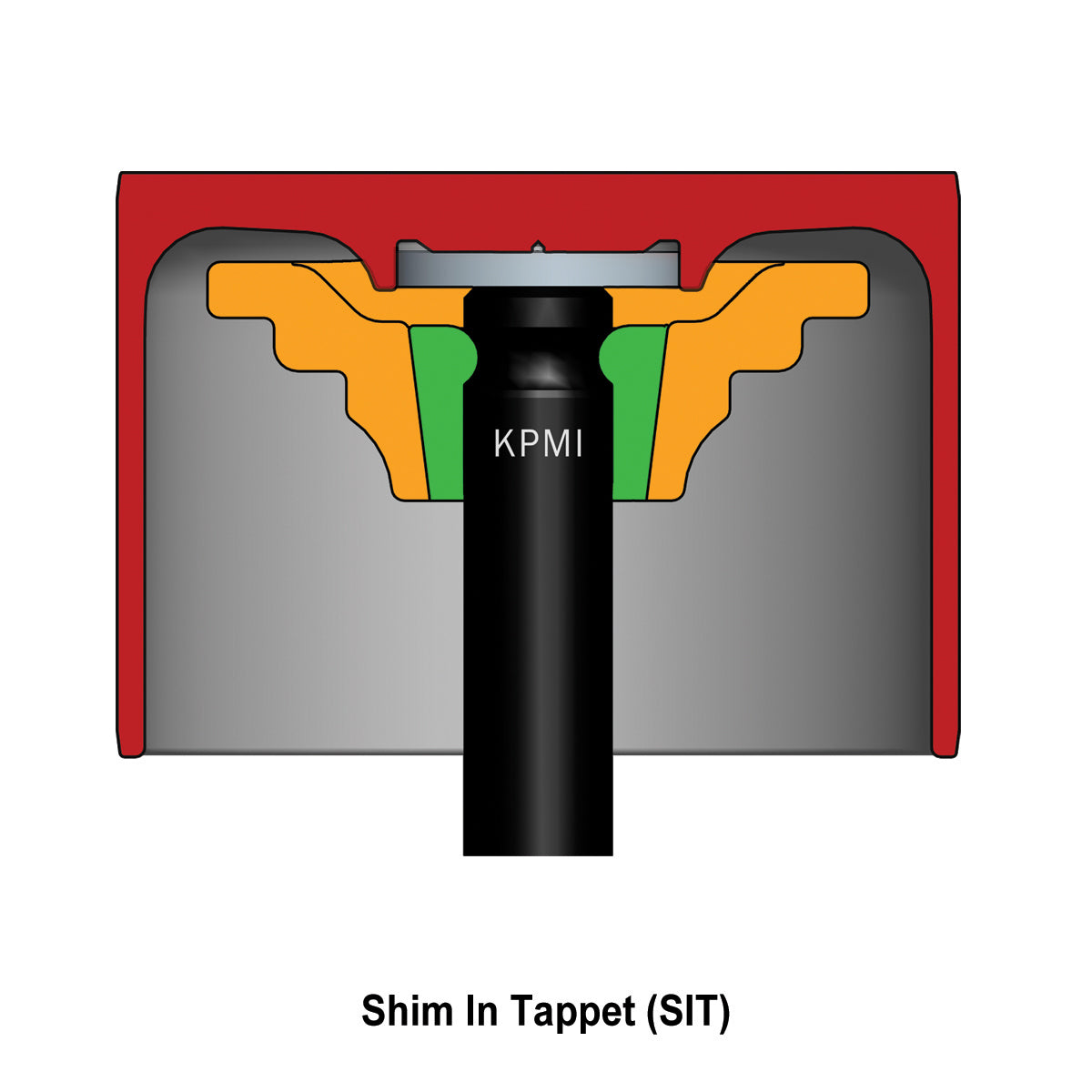

KPMI® “Shim in Tappet” tappets solve the issues of retainer counter-bore ovaling and adjustment shims becoming dislodged. It is especially recommended for
use with reduced base circle cams.

Installation Instructions Click Here
Type Intake/ Exhaust
Retainer Material Titanium
Valve Lift 0.490"
Installed Height 1.455"
Seat Pressure 65#
Open Pressure 195#
@ Lift 0.415"
Note This high lift kit is designed for maximum performance applications on 1999-2023 models. It includes KPMI® "Shim in Tappet" design tappets that solve the issues of retainer counter-bore ovaling and adjustment shims becoming dislodged. It is especially recommended for use with reduced base circle cams.
