Seal, Red Viton, 8.0mm Stem x 0.472" Guide Seal Detail

Seal, Red Viton, 8.0mm Stem x 0.472" Guide Seal Detail


Regular price $13.96 USD
Regular price $13.96 USD Sale price $13.96 USD
Sale Sold out

California Prop 65

KPMI® Red 100% Viton valve stem seals are designed to have optimum fitment, allow , maximum lift, and to give maximum life. KPMI® Red valve stem seals are resistant to high temperatures, petroleum products and the corrosive gasses that are the by-products of combustion. These seals retain their ability to seal in situations where other materials could harden and allow oil to enter the combustion chamber causing detonation, carbon build up and a loss of power. The Red Ones are truly the racers choice.

Click Here to Download KPMI® Seal Catalog

Type Intake/ Exhaust
Material Red Viton®

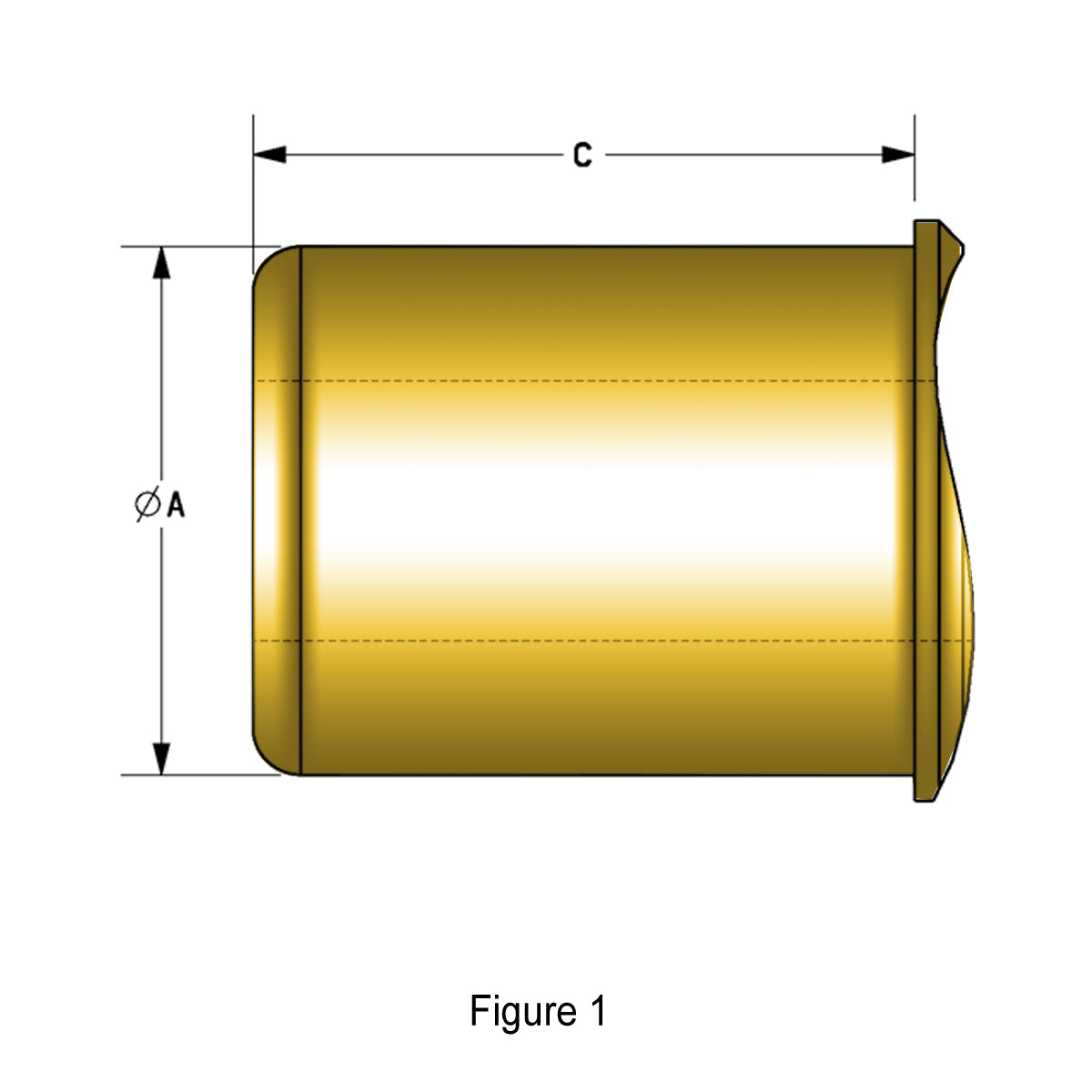

Reference  See Figure 1
Stem Diameter 8.0mm
Overall Length 0.374"
Seal O.D. 0.598"
A 0.427”±0.002”
B ---
C ---
D 0.265"
Note Use the diagram and specifications to ensure your valve guide shares the same dimensions for a proper fit
Unique Identifier No. FR327789_01GAUS
