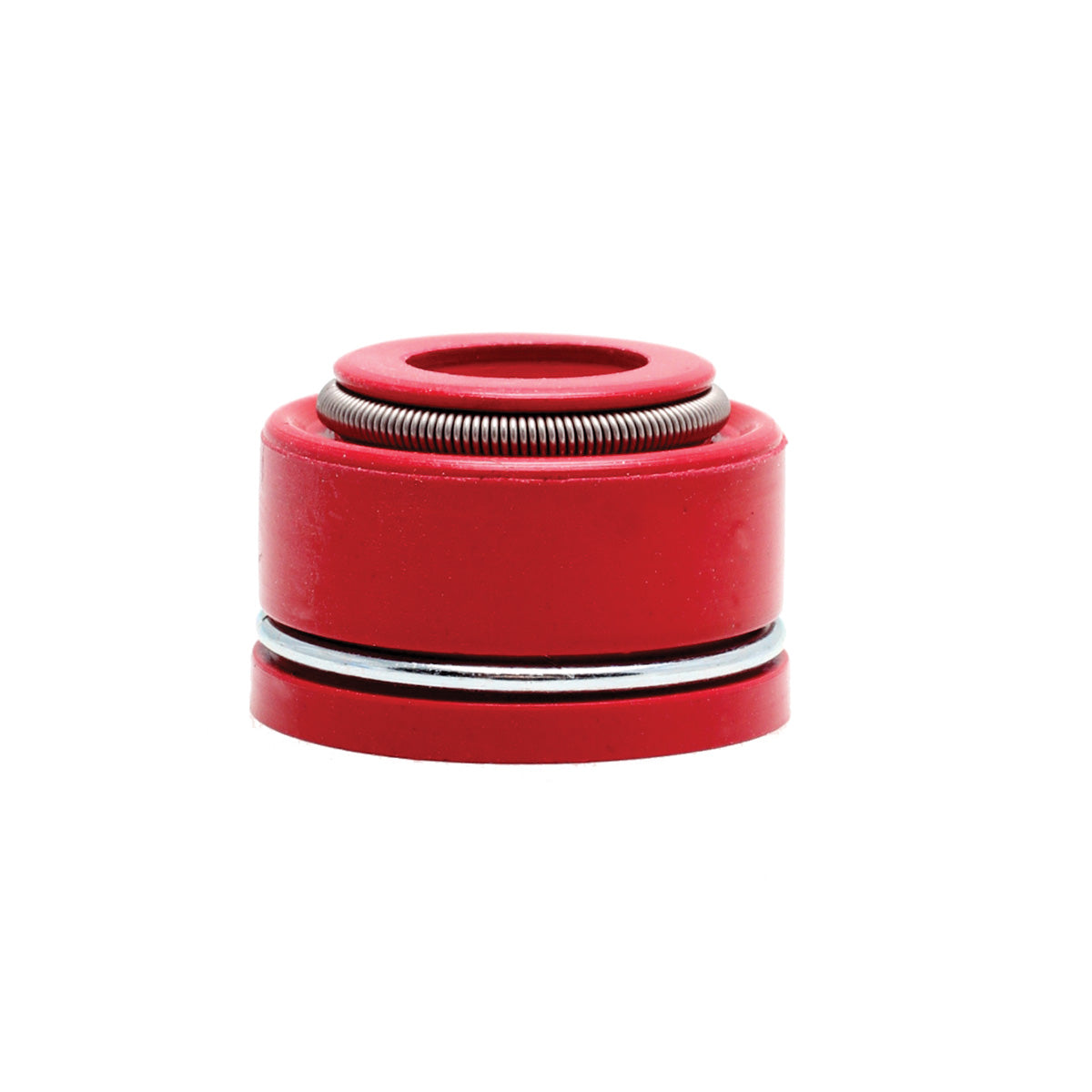

Seal, Red Viton, 6.5mm Stem x 0.475" Guide Seal Detail, Various Honda® Applications

Seal, Red Viton, 6.5mm Stem x 0.475" Guide Seal Detail, Various Honda® Applications

SKU:71018-4

Regular price $13.96 USD
Regular price $13.96 USD Sale price $13.96 USD
Sale Sold out
Quantity

California Prop 65

Honda® GB™ 500 1989-1990 (Pkg. of 4 Required)
Honda® XR™ 500R 1983-1984 (Pkg. of 4 Required)
Honda® XL™ 600R 1983-1987 (Pkg. of 4 Required)
Honda® XR™ 600R 1985-2000 (Pkg. of 4 Required)
Honda® XR™ 650L 1993-2024 (Pkg. of 4 Required)
Honda® XR™ 650R 2000-2007 (Pkg. of 4 Required)
Honda® TRX™ 700XX 2008-2009 (Pkg. of 4 Required)
Honda® CB™ 750 SOHC Excluding F2™ 1969-1977 (Pkg. of 4 Required)
Honda®, CB™ / 750 SOHC, 1969-1977 (Pkg. of 8 Required)

KPMI® Red 100% Viton valve stem seals are designed to have optimum fitment, allow , maximum lift, and to give maximum life. KPMI® Red valve stem seals are resistant to high temperatures, petroleum products and the corrosive gasses that are the by-products of combustion. These seals retain their ability to seal in situations where other materials could harden and allow oil to enter the combustion chamber causing detonation, carbon build up and a loss of power. The Red Ones are truly the racers choice.

Click Here to Download KPMI® Seal Catalog

Type Intake/ Exhaust
Material Red Viton®

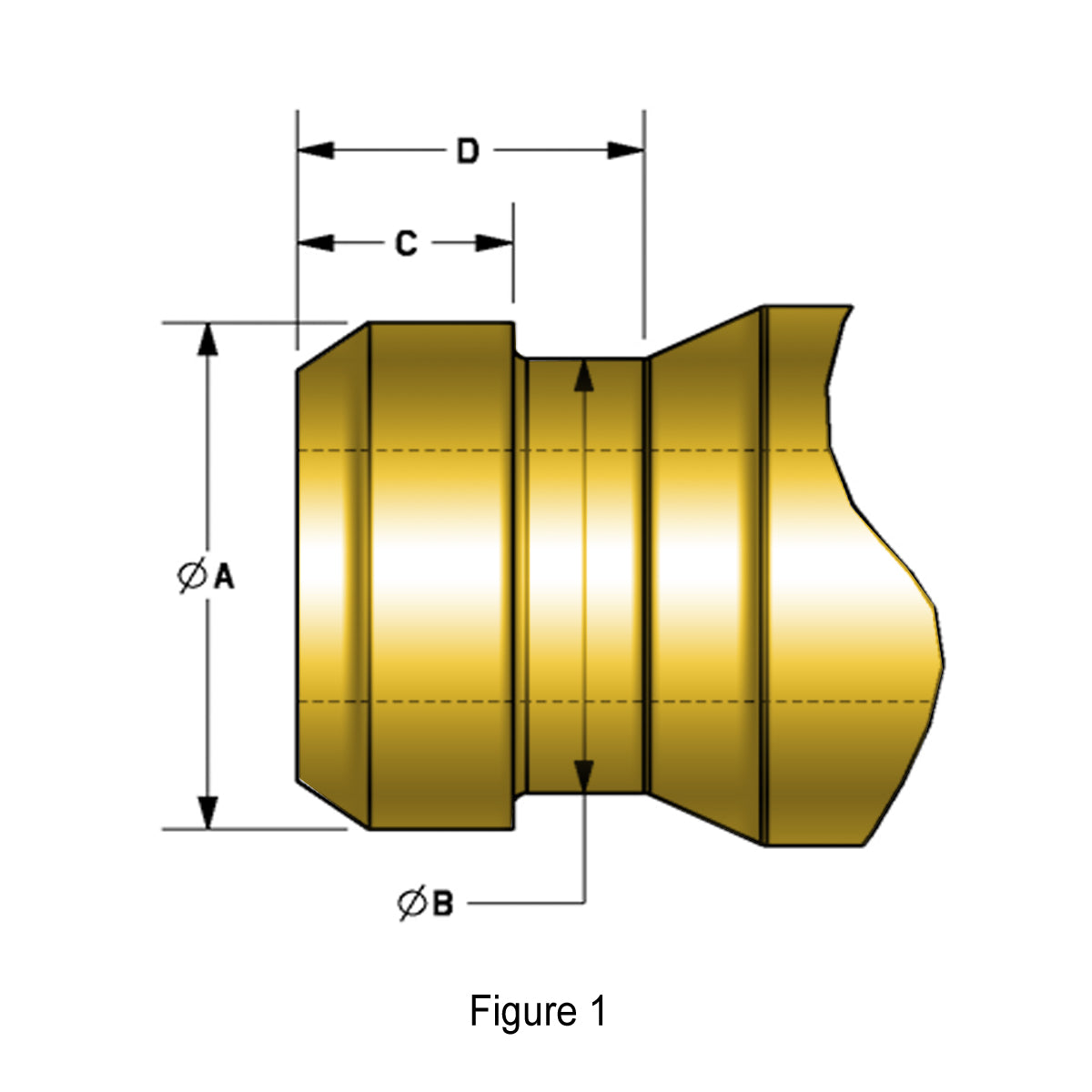

Reference  See Figure 1
Quantity
Various
Stem Diameter 6.5mm
Overall Length 0.353"
Seal O.D. 0.560"
A 0.475”±0.005”
B 0.415"
C 0.115"
D 0.260"
OEM REF. P/N 12209-300-003
Note Use the diagram and specifications to ensure your valve guide shares the same dimensions for a proper fit
