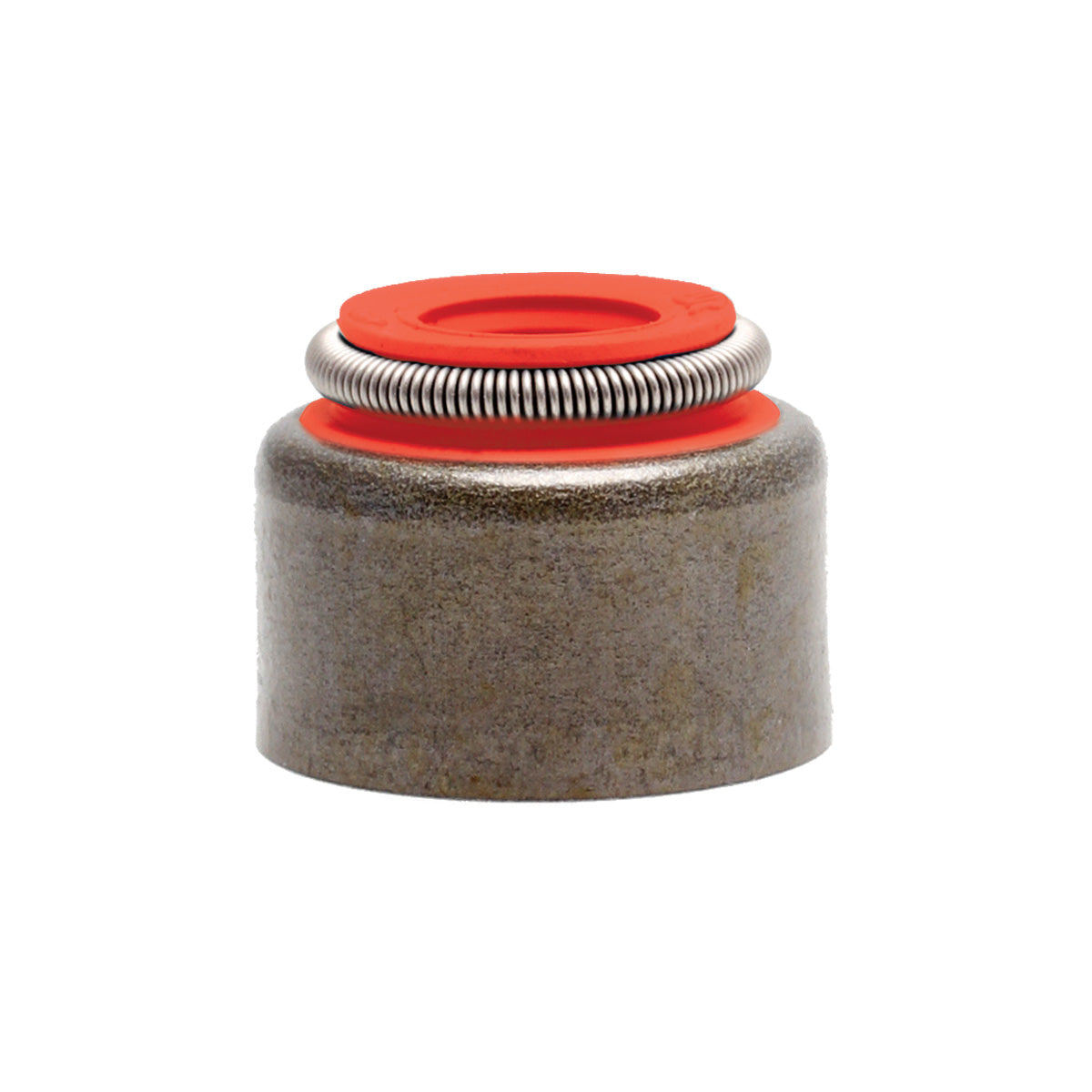

Seal, Red Viton, 6.0mm Stem x 0.385" Guide Seal Detail, Various Applications
Seal, Red Viton, 6.0mm Stem x 0.385" Guide Seal Detail, Various Applications
SKU:71017-2
Yamaha®, Raptor 250™, 2008-2013 (Pkg. of 2 Required)
Polaris® Predator™ / Outlaw™ 500 2003-'07 (Pkg. of 4 Required)
Polaris® Sportsman™ 800 2006-2014 (Pkg. of 4 Required)
Polaris® RZR™ 800 2008-2010 (Pkg. of 4 Required)
Polaris® RZR™ 800 (&S/4) / Ranger™ 800 2011-2017 (Pkg. of 4 Required)
Triumph® 650 / 750 1963-1983 (6mm Conv.) (Pkg. of 4 Required)
Yamaha® Grizzly™ 700 2007-2015 (Pkg. of 4 Required)
Yamaha® Grizzly™ 700 2019-2023 (Pkg. of 4 Required)
Yamaha® Raptor™ 700 2006-2023 (Pkg. of 4 Required)
Yamaha® Rhino™ 700 2008-2013 (Pkg. of 4 Required)
Yamaha® Viking™ 700 2014-2023 (Pkg. of 4 Required)
Yamaha® Kodiak™ 2019-2023 (Pkg. of 4 Required)
Yamaha® Grizzly™ 2002-2008 (Pkg. of 5 Required)
Yamaha® Raptor™ 2001-2005 (Pkg. of 5 Required)
Yamaha® Rhino™ 2004-2007 (Pkg. of 5 Required)
KPMI® Red 100% Viton valve stem seals are designed to have optimum fitment, allow , maximum lift, and to give maximum life. KPMI® Red valve stem seals are resistant to high temperatures, petroleum products and the corrosive gasses that are the by-products of combustion. These seals retain their ability to seal in situations where other materials could harden and allow oil to enter the combustion chamber causing detonation, carbon build up and a loss of power. The Red Ones are truly the racers choice.
Click Here to Download KPMI® Seal Catalog
Type | Intake/ Exhaust |
Material | Red Viton® |

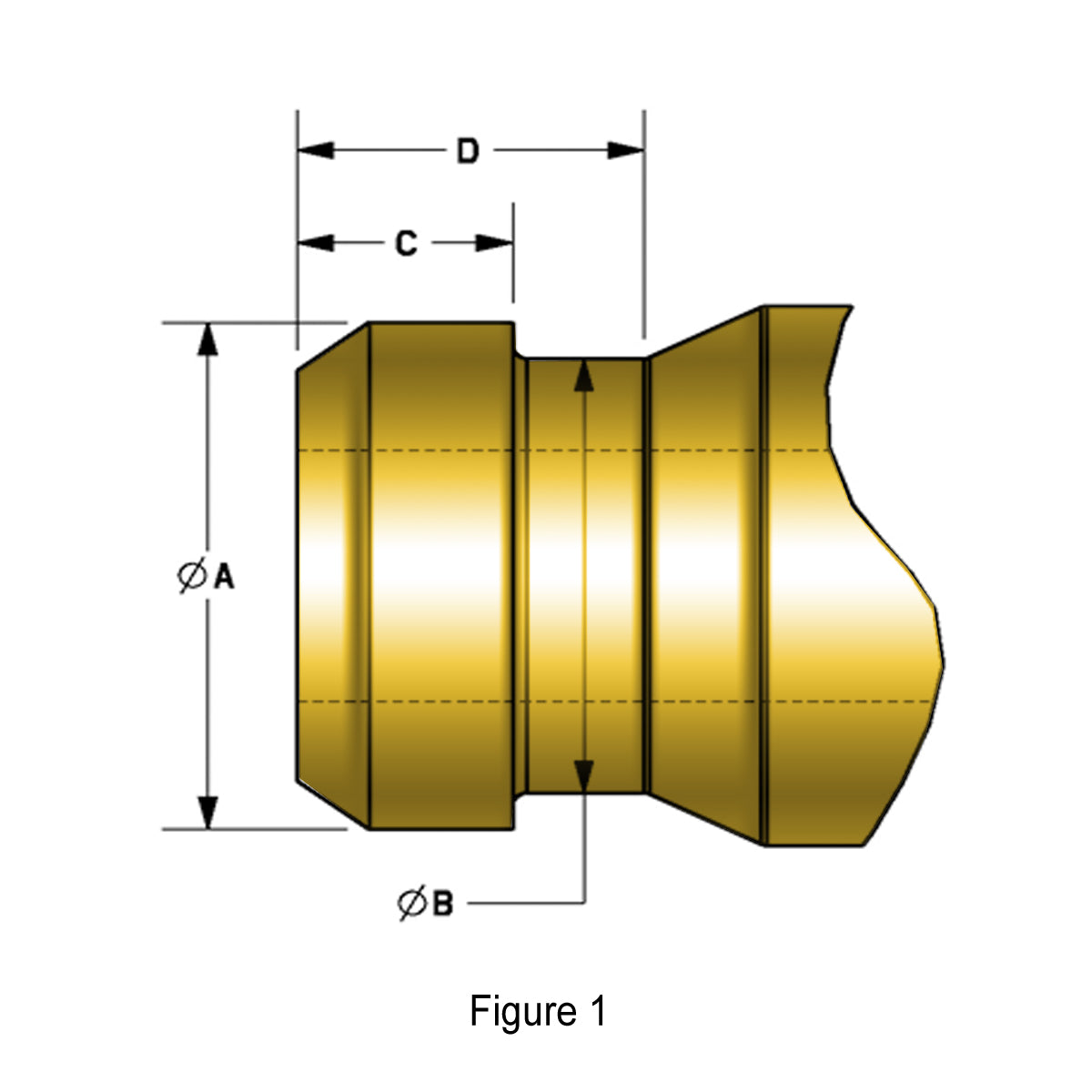

Reference | See Figure 1 |
Quantity |
Various |
Stem Diameter | 6.0mm |
Overall Length | 0.371" |
Seal O.D. | 0.480" |
A | 0.385”±0.002” |
B | 0.341" |
C | 0.120" |
D | 0.255" |
OEM REF. P/N | 5H0-12119-00-00 |
Note | Use the diagram and specifications to ensure your valve guide shares the same dimensions for a proper fit |
Unique Identifier No. | FR327789_01GAUS |
