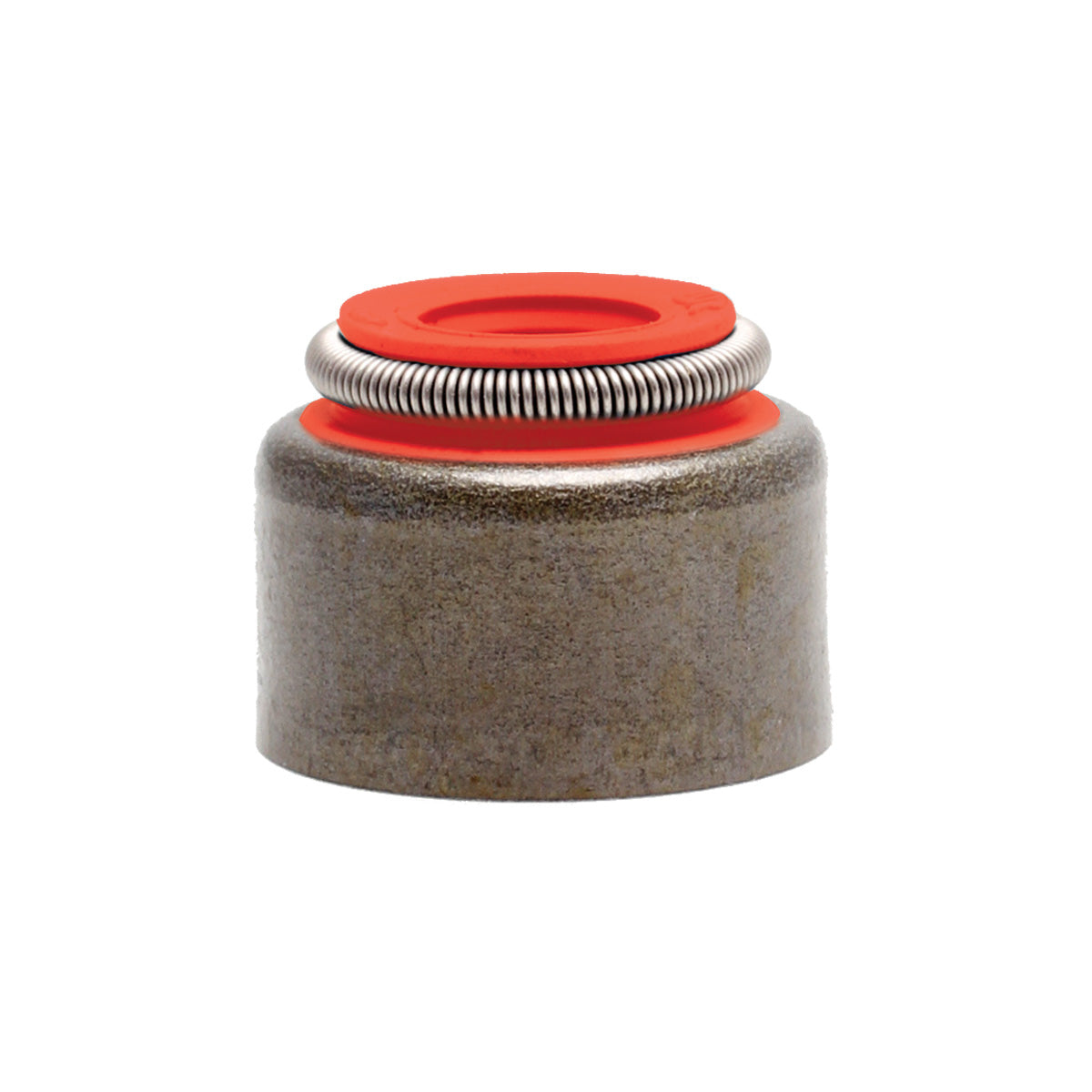

Seal, Red Viton, 5/16" Stem x 0.530" Guide Seal Detail, Various HD® Applications

Seal, Red Viton, 5/16" Stem x 0.530" Guide Seal Detail, Various HD® Applications

SKU:71045-4

Regular price $13.96 USD
Regular price $13.96 USD Sale price $13.96 USD
Sale Sold out
Quantity

California Prop 65

Harley Davidson® EVOLUTION™ 1984-1999 (Pkg. of 4 Required)
Harley Davidson® EVO SPORTSTER™ 883cc 1986-'03 (Pkg. of 4 Required)
Harley Davidson® XL™ 1100cc 1986-1987 (Pkg. of 4 Required)
Harley Davidson® EVO SPORTSTER™ 1200cc 1988-'03 (Pkg. of 4 Required)
Harley Davidson® TWIN CAM™ 88" 1999-2004 (Pkg. of 4 Required)

KPMI® Red 100% Viton valve stem seals are designed to have optimum fitment, allow , maximum lift, and to give maximum life. KPMI® Red valve stem seals are resistant to high temperatures, petroleum products and the corrosive gasses that are the by-products of combustion. These seals retain their ability to seal in situations where other materials could harden and allow oil to enter the combustion chamber causing detonation, carbon build up and a loss of power. The Red Ones are truly the racers choice.

Click Here to Download KPMI® Seal Catalog

Type Intake/ Exhaust
Material Red Viton®
Reference  See Figure 1
Quantity
Various
Stem Diameter 5/16"
Overall Length 0.514"
Seal O.D. 0.671"
A 0.530”±0.002”
B ---
C ---
D 0.330"
Note Use the diagram and specifications to ensure your valve guide shares the same dimensions for a proper fit
Unique Identifier No. FR327789_01GAUS
