Seal, Red Viton, 4.5mm Stem X 0.321” Guide Seal Detail, Various Honda® Applications



Honda® CRF 150R 2007-2023 (Pkg. of 4 Required)
Honda® CRF™ 250R 2004-'07 / 250X 2004-'17 (Pkg. of 4 Required)
Honda® CRF 250R 2008-2009 (Pkg. of 4 Required)
Honda® CRF™ 250R 2010-2015 (Pkg. of 4 Required)
Honda® CRF™ 250R 2016-2017 (Pkg. of 4 Required)
Honda® CBR 250R 2011-2013 (Pkg. of 4 Required)
Honda® CRF 250L/RL 2013-2020 (Pkg. of 4 Required)
Honda® CBF 300N 2019-2022 (Pkg. of 4 Required)
Honda® CBR 300R 2015-2022 (Pkg. of 4 Required)
Honda® CB 300F 2016-2018 (Pkg. of 4 Required)
Honda® CB 300R 2019-2022 (Pkg. of 4 Required)
Honda® CMX 300 2017-2022 (Pkg. of 4 Required)
Kawasaki® Brute Force™ 650 4x4 / 4x4i 2013 (Pkg. of 8 Required)
Kawasaki® Brute Force™ 750 4x4i 2013-2018 (Pkg. of 8 Required)
Kawasaki® Teryx™ 2013-2020 (Pkg. of 8 Required)
Kawasaki® Teryx4™ 2012-2020 (Pkg. of 8 Required)
Suzuki® SV™ 650 1999-2009 (Pkg. of 8 Required)
Yamaha® YZF™ R1 1998-2003 (for Exhaust ONLY) (Pkg. of 8 Required)
Yamaha® APEX™ / RX-1 (All Models) 2003-2010 (for Exhaust Only) (Pkg. of 8 Required)
Yamaha® MR-1 Watercraft Engines 2002-2013 (for Exhaust Only) (Pkg. of 8 Required)

ARCTIC CAT® M 9000 KING CAT 2017-2019 (Pkg. of 12 Required)
ARCTIC CAT® XF 9000 CROSS COUNTRY LTD 2017-2019 (Pkg. of 12 Required)
ARCTIC CAT® XF 9000 CROSSTREK 2017-2018 (Pkg. of 12 Required)
ARCTIC CAT® XF 9000 HIGH COUNTRY LTD 2017-2019 (Pkg. of 12 Required)
ARCTIC CAT® ZR 9000 LTD 2017-2019 (Pkg. of 12 Required)
ARCTIC CAT® ZR 9000 LXR 2017 (Pkg. of 12 Required)
ARCTIC CAT® ZR 9000 RR 2017-2019 (Pkg. of 12 Required)
ARCTIC CAT® ZR 9000 SNO PRO 2017-2019 (Pkg. of 12 Required)
ARCTIC CAT® ZR 9000 THUNDERCAT 2017-2022 (Pkg. of 12 Required)
ARCTIC CAT® XF 9000 CROSSTOUR 2018 (Pkg. of 12 Required)
ARCTIC CAT® WILDCAT XX 2019-2022 (Pkg. of 12 Required)
Yamaha® Various 1049cc Triples 2008-2015 (Pkg. of 12 Required)
Yamaha® FX Nytro™ 2008-2014 (Pkg. of 12 Required)
Yamaha® SRViper™ 2014-2015 (Pkg. of 12 Required)
Yamaha® YXZ™ 1000R 2016-2023 (Pkg. of 12 Required)
Honda® CBR™ 900RR 1993-1999 (Pkg. of 12 Required)
Suzuki® GSX-R™ 600 1997-2000 (Pkg. of 16 Required)
Suzuki® GSX-R™ 750 1993-1995 (Pkg. of 16 Required)
Suzuki® GSX-R™ 750 SRAD 1996-1999 (Pkg. of 16 Required)
Suzuki® GSX-R™ 1000 2005-2008 (Pkg. of 16 Required)
Suzuki® GSX-R™ 1100 1993-1998 (Pkg. of 16 Required)
Yamaha® APEX™ / RX-1 (ALL MODELS) 2003-2010 (Pkg. of 20 Required)
Yamaha® MR-1 Watercraft Engines 2002-2013 (Pkg. of 20 Required)

KPMI® Red 100% Viton valve stem seals are designed to have optimum fitment, allow , maximum lift, and to give maximum life. KPMI® Red valve stem seals are resistant to high temperatures, petroleum products and the corrosive gasses that are the by-products of combustion. These seals retain their ability to seal in situations where other materials could harden and allow oil to enter the combustion chamber causing detonation, carbon build up and a loss of power. The Red Ones are truly the racers choice.

Click Here to Download KPMI® Seal Catalog

Type	Intake/ Exhaust
Material	Red Viton®

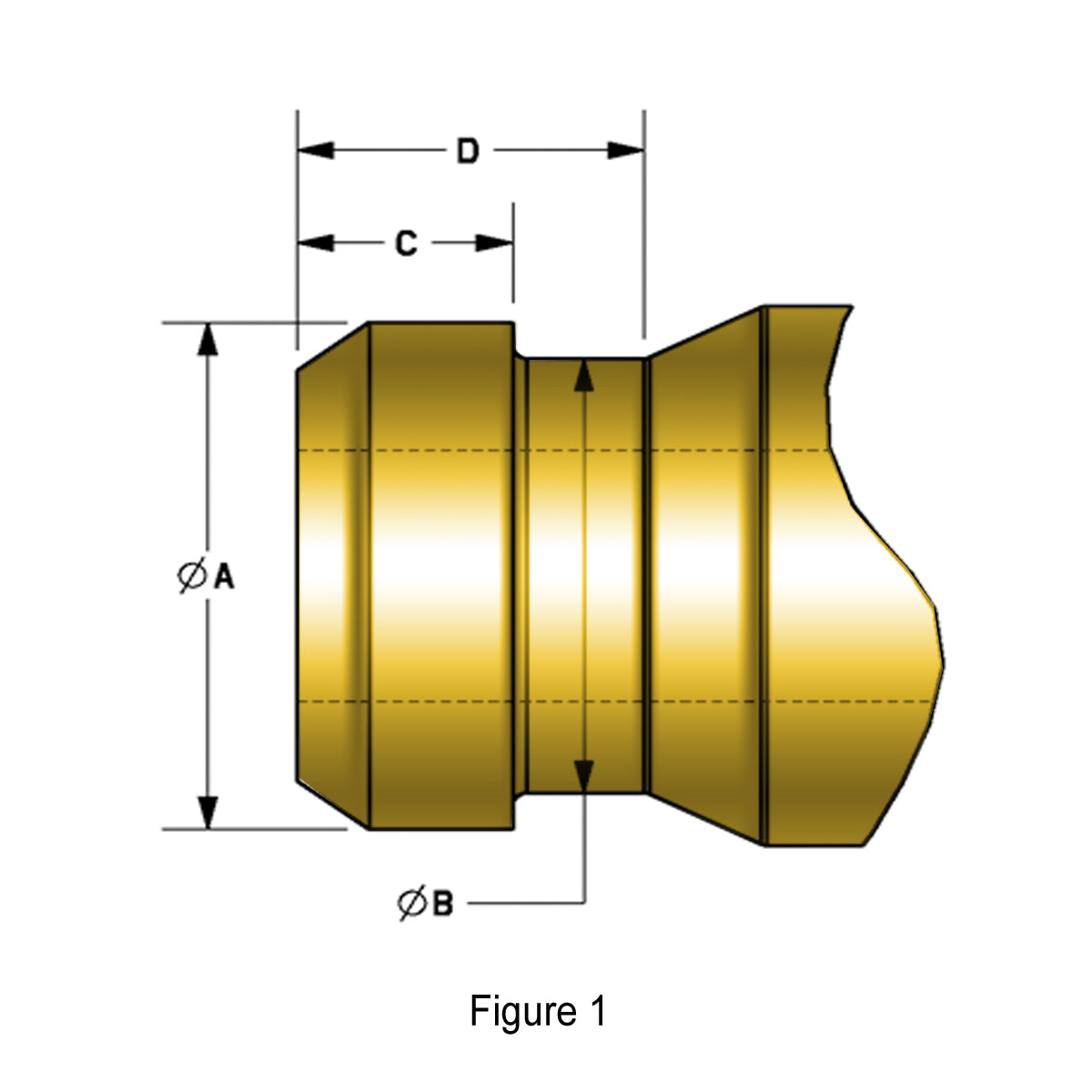

Reference	See Figure 1
Quantity	Various
Stem Diameter	4.5mm
Overall Length	0.331"
Seal O.D.	0.370"
A	0.321”±0.005”
B	0.281"
C	0.120"
D	0.240"
OEM REF. P/N	12209-ML0-722
Note	Use the diagram and specifications to ensure your valve guide shares the same dimensions for a proper fit
Unique Identifier No.	FR327789_01GAUS
