Seal Kit, High Performance, Yamaha®, 450 (5-Valve), 2003-2025
Seal Kit, High Performance, Yamaha®, 450 (5-Valve), 2003-2025
SKU:80-80710
Couldn't load pickup availability
Yamaha® YFZ™ 450 2004-2009
Yamaha® YFZ™ 450X 2008-2011
Yamaha® YFZ™ 450R 2009-2025
Yamaha® YFZ™ 450R SE 2010-2025
Yamaha® WR™ 450F 2003-2015
Yamaha® YZ™ 450F 2003-2009
KPMI® Red 100% Viton valve stem seals are designed to have optimum fitment, allow , maximum lift, and to give maximum life. KPMI® Red valve stem seals are resistant to high temperatures, petroleum products and the corrosive gasses that are the by-products of combustion. These seals retain their ability to seal in situations where other materials could harden and allow oil to enter the combustion chamber causing detonation, carbon build up and a loss of power. The Red Ones are truly the racers choice.
Click Here to Download KPMI® Seal Catalog
| Type | Intake/ Exhaust |
| Material | Red Viton® |
| Seal Style | 4 |

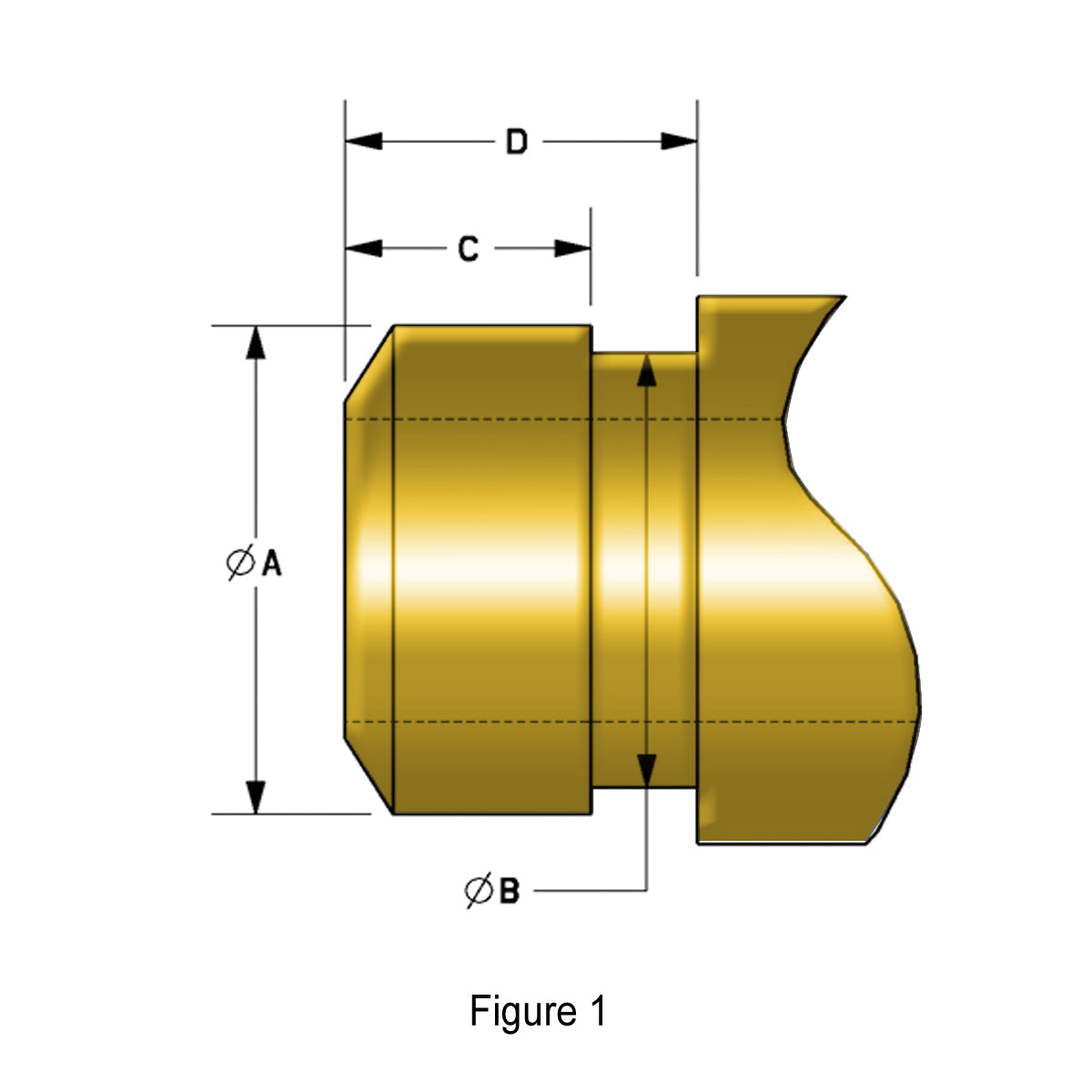

| Reference | See Figure 1 |
| Quantity |
3 Intake Seals/ 2 Exhaust Seals |
| Stem Diameter | 4.5mm |
| Overall Length | 0.331" |
| Seal O.D. | 0.370" |
| A | 0.321”±0.002” |
| B | 0.281" |
| C | 0.120" |
| D | 0.240" |
| Unique Identifier No. | FR327789_01GAUS |
