Seal Kit, High Performance, KTM®, XC4 Engines 400-530cc, 2008-2013

Seal Kit, High Performance, KTM®, XC4 Engines 400-530cc, 2008-2013

SKU:96-96380

Regular price $13.96 USD
Regular price $13.96 USD Sale price $13.96 USD
Sale Sold out

California Prop 65

EXC-R / XCR-W / EXC / XC-W

KPMI® Red 100% Viton valve stem seals are designed to have optimum fitment, allow , maximum lift, and to give maximum life. KPMI® Red valve stem seals are resistant to high temperatures, petroleum products and the corrosive gasses that are the by-products of combustion. These seals retain their ability to seal in situations where other materials could harden and allow oil to enter the combustion chamber causing detonation, carbon build up and a loss of power. The Red Ones are truly the racers choice.

Click Here to Download KPMI® Seal Catalog

Type Intake/ Exhaust
Material Red Viton®
Seal Style 5

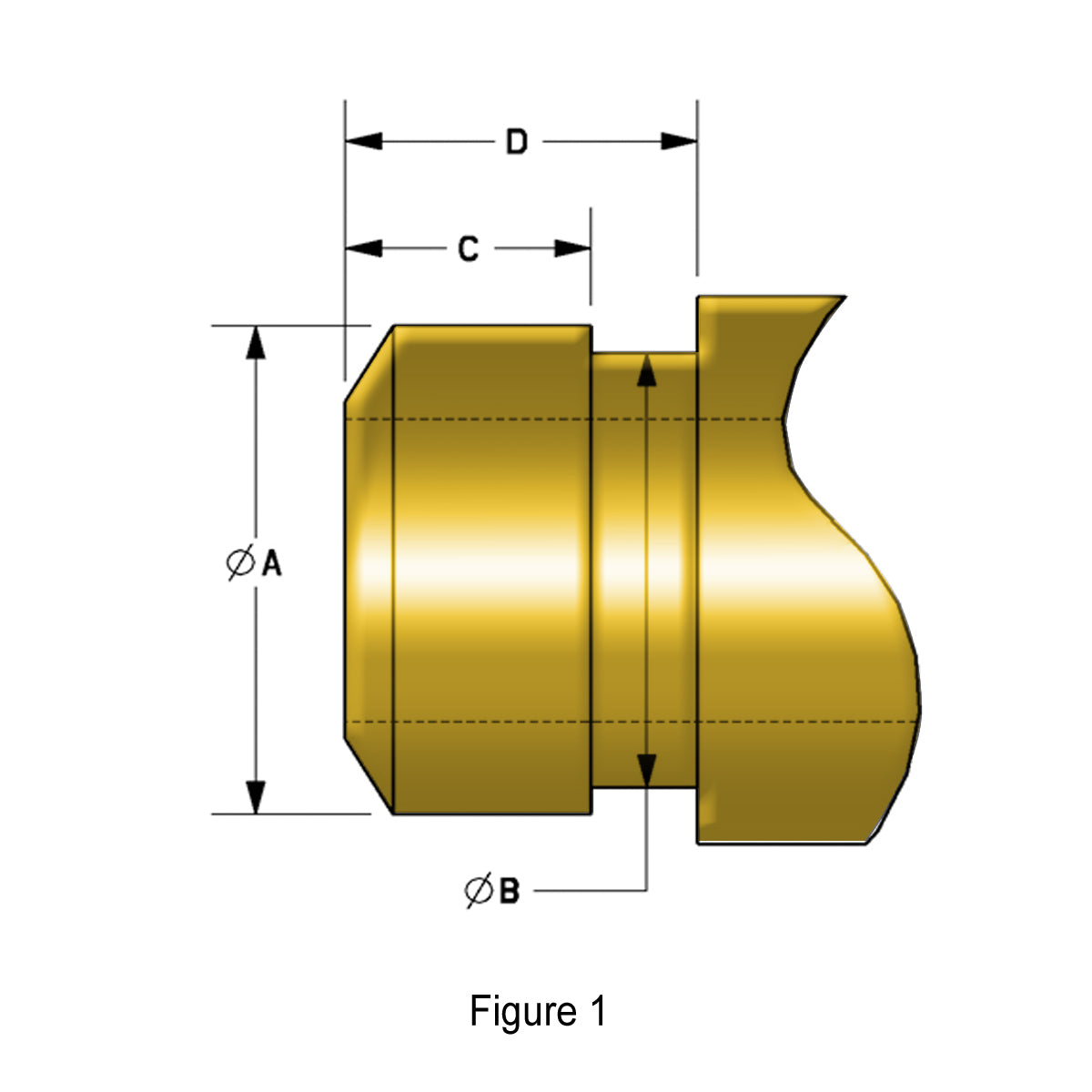

Reference  See Figure 1
Quantity
2 Intake Seals/ 2 Exhaust Seals
Intake Stem Diameter 6.0mm
Intake Overall Length 0.315"
Intake Seal O.D. 0.520"
Intake (A) 0.435”±0.002”
Intake (B) 0.395"
Intake (C) 0.120"
Intake (D) 0.215"
Exhaust Stem Diameter 5.0mm
Exhaust Overall Length 0.320"
Exhaust Seal O.D. 0.435"
Exhaust (A) 0.305”±0.002”
Exhaust (B) 0.265"
Exhaust (C) 0.100"
Exhaust (D) 0.195"
Unique Identifier No. FR327789_01GAUS
