Seal, HD OE Style, 3/8" Stem X 0.625" Guide Seal Detail, HD®, Shovelhead™ 80", 1978-1983
Seal, HD OE Style, 3/8" Stem X 0.625" Guide Seal Detail, HD®, Shovelhead™ 80", 1978-1983
SKU:71036-4
Regular price
$8.16 USD
Regular price
$8.16 USD
Sale price
$8.16 USD
Unit price
per
Couldn't load pickup availability
Harley Davidson® Shovelhead™ 80", 1978-1983 (Pkg. of 4 Required)

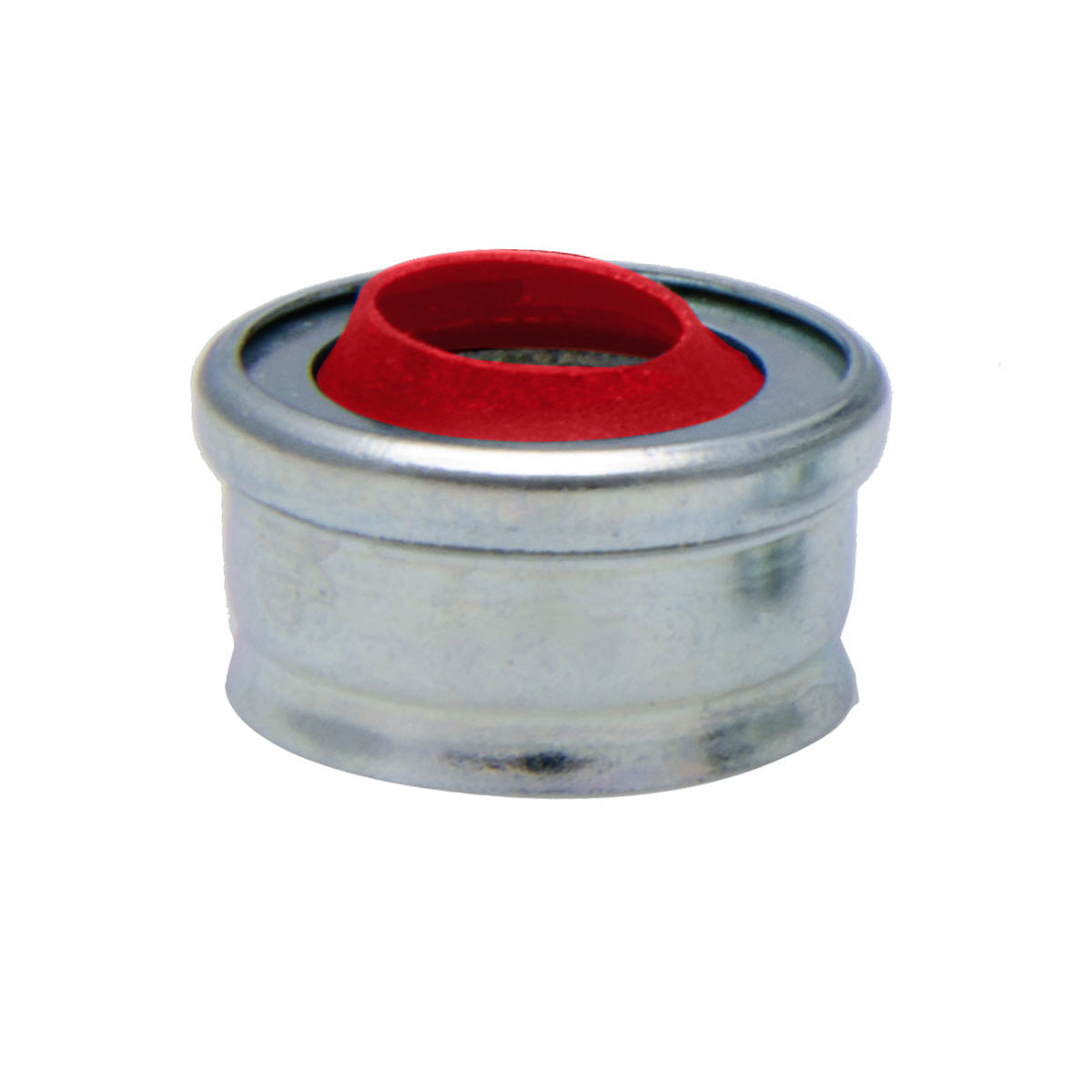

These OE style seals incorporate a special low friction graphite impregnated PTFE sealing element. PTFE material does not have memory and therefore is subject to creep. Creep allows the seal to conform to mating surfaces, controlling oil, but not letting the parts run dry. PTFE is known to retain its mechanical properties at temperatures as high as 500F. These steel clad seals have a low profile, seal-to-retainer clearance, and will fit inside dual spring assemblies.
Click Here to Download KPMI® Seal Catalog
| Type | Intake/ Exhaust |
| Material | Solid Teflon |

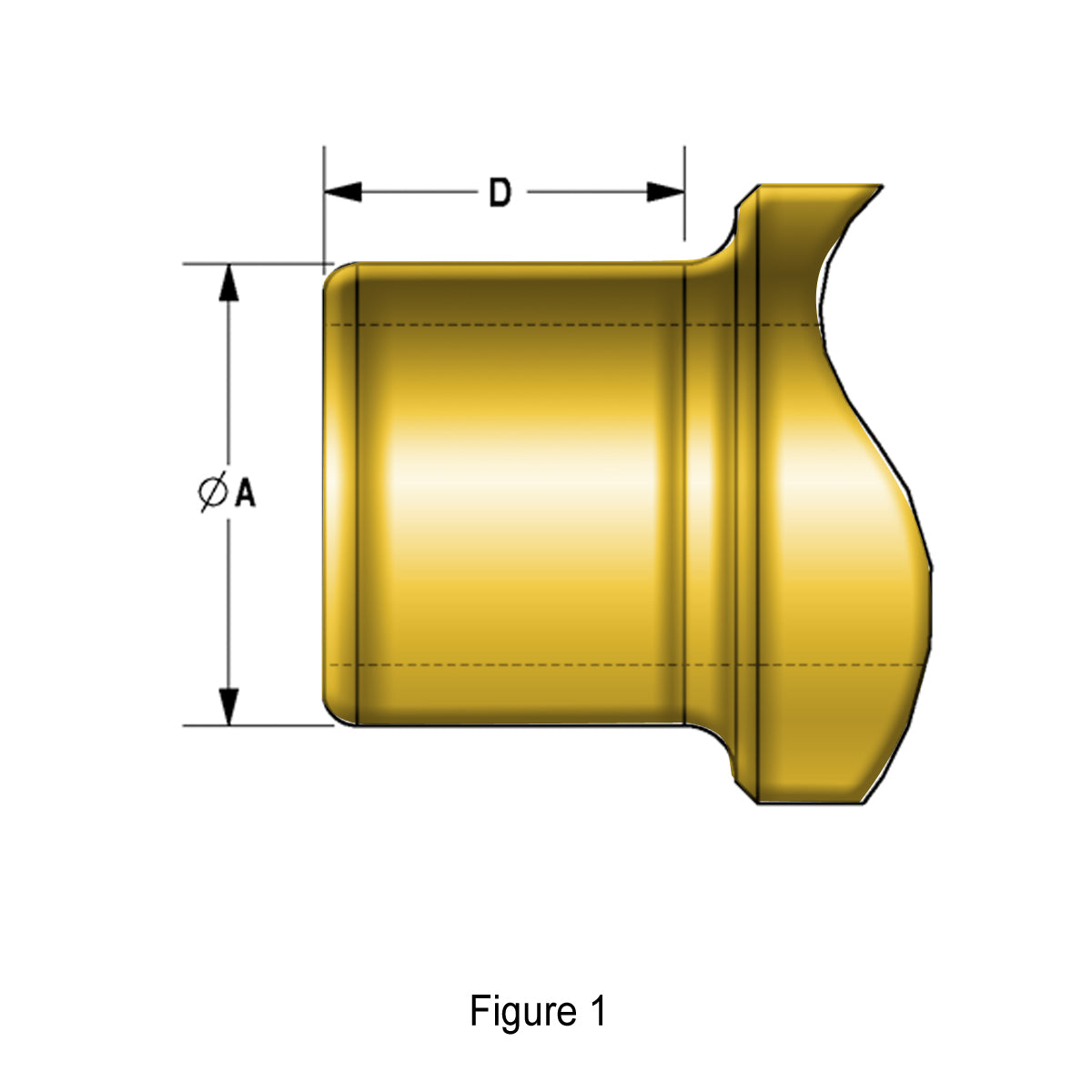

| Reference | See Figure 1 |
| Quantity |
Various |
| Stem Diameter | 3/8" |
| Overall Length | 0.400" |
| Seal O.D. | 0.720" |
| A | 0.625”±0.002” |
| B | --- |
| C | --- |
| D | 0.310" |
| OEM REF. P/N | 1800081 |
| Note | Use the diagram and specifications to ensure your valve guide shares the same dimensions for a proper fit |
| Unique Identifier No. | FR327789_01GAUS |
