Seal, HD OE Style, 3/8" Stem X 0.562" Guide Seal Detail, Various HD® Applications

Seal, HD OE Style, 3/8" Stem X 0.562" Guide Seal Detail, Various HD® Applications

SKU:71035-4

Regular price $8.16 USD
Regular price $8.16 USD Sale price $8.16 USD
Sale Sold out
Quantity

California Prop 65

Harley Davidson® Panhead™ 1948-1965 (Pkg. of 4 Required)
Harley Davidson® Shovelhead™ 74" 1966-1977 (Pkg. of 4 Required)

These OE style seals incorporate a special low friction graphite impregnated PTFE sealing element. PTFE material does not have memory and therefore is subject to creep. Creep allows the seal to conform to mating surfaces, controlling oil, but not letting the parts run dry. PTFE is known to retain its mechanical properties at temperatures as high as 500F. These steel clad seals have a low profile, seal-to-retainer clearance, and will fit inside dual spring assemblies.

Click Here to Download KPMI® Seal Catalog

Type Intake/ Exhaust
Material Solid Teflon

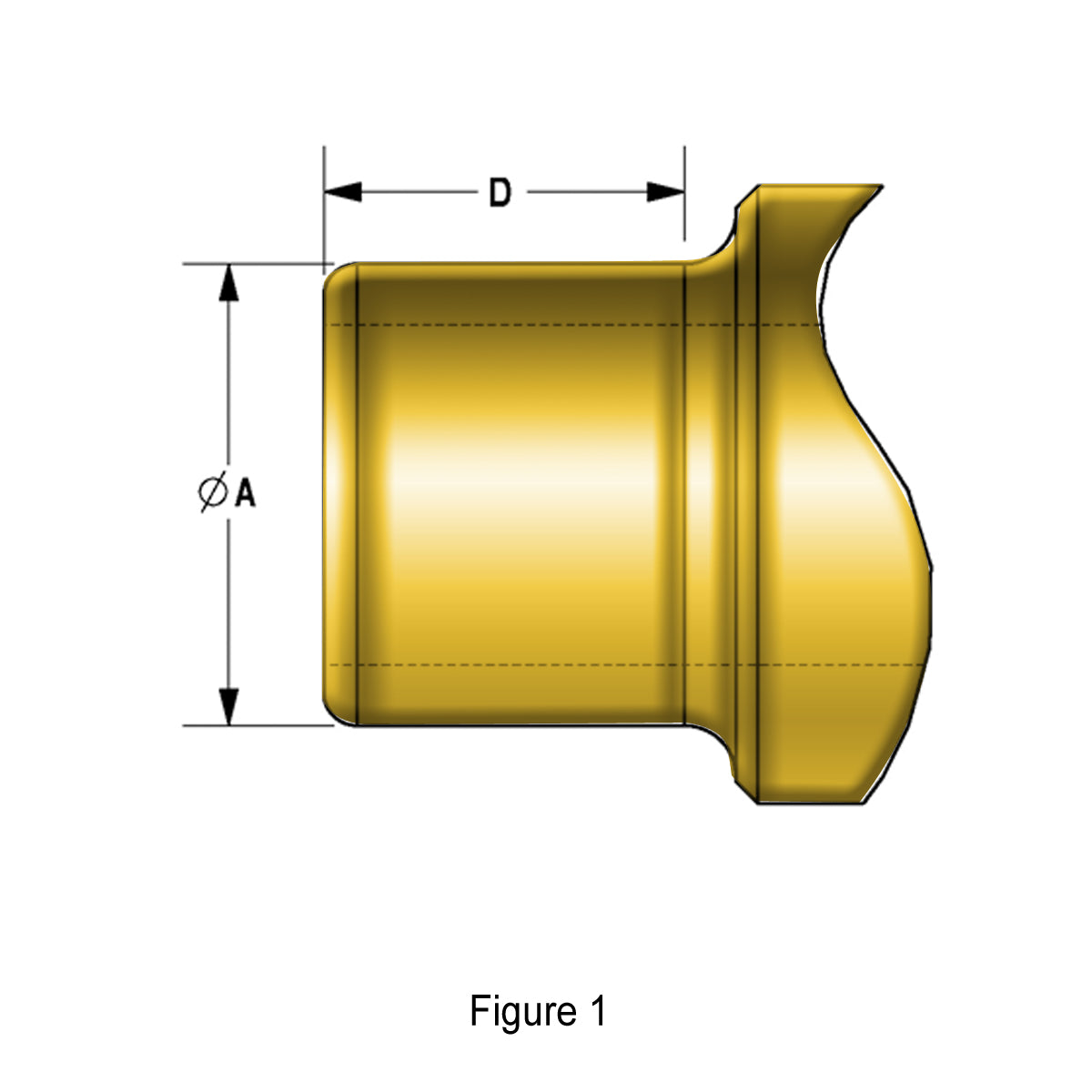

Reference  See Figure 1
Quantity
Various
Stem Diameter 3/8"
Overall Length 0.375"
Seal O.D. 0.660"
A 0.562”±0.002”
B ---
C ---
D 0.315"
Note Use the diagram and specifications to ensure your valve guide shares the same dimensions for a proper fit
Unique Identifier No. FR327789_01GAUS
