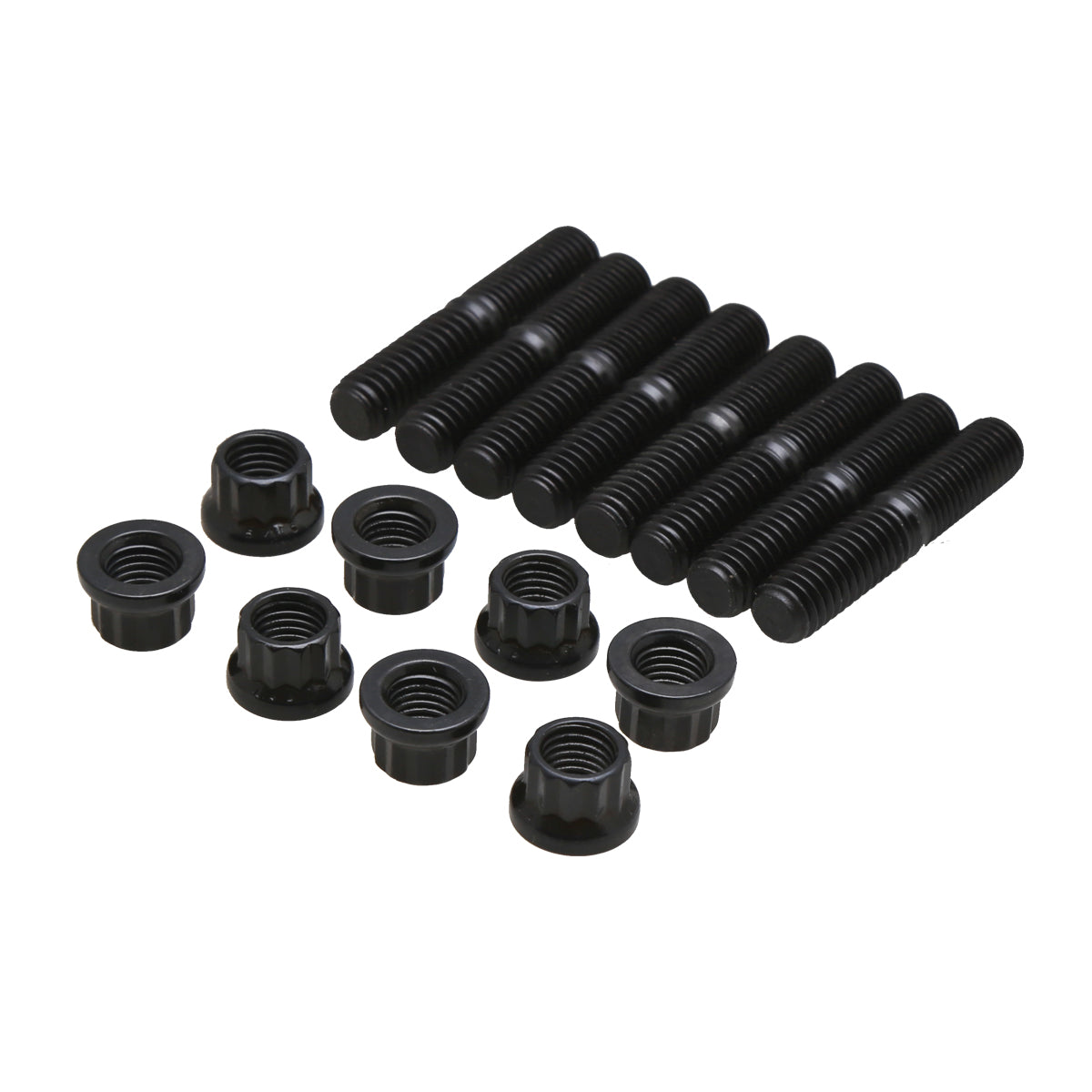

Rocker Arm Tower Stud Kit, HT Steel, HD®, M8, 2017-2023

Rocker Arm Tower Stud Kit, HT Steel, HD®, M8, 2017-2023

SKU:20-21045

Regular price $107.96 USD
Regular price $107.96 USD Sale price $107.96 USD
Sale Sold out

California Prop 65

KPMI® offers a Premium Rocker Tower Solution

  • Nuts are machined from billet high tensile steel and heat treated
  • Studs are heat treated 180,000 PSI aircraft alloy steel
  • Both nut and stud have rolled threads for the strongest possible threads
  • Both nut and stud are black oxide treated for enhanced corrosion resistance
  • This kit is the M8 rocker tower solution
  • 5/32" Allen Hex to ease installation and removal (see Figure 2 & 3)

KPMI® Cylinder Studs are made from 180,000 psi yield strength, fine grain, heat treated, aircraft grade alloy steel. When you want a stud that meets proof-stress and maximizes clamping force, look no further. KPMI® “rolls” the threads, heat treats and then centerless grinds the entire body of the stud. Rolling the threads creates the toughest and strongest thread possible and centerless grinding removes notch sensitivity. The final process for all KPMI® Studs is to encase the entire stud with premium corrosion resistant treatment of Black Oxide. Congratulations on your choice to purchase a stud that meets and exceeds your stock-replacement of high-performance needs!

Installation Instructions Click Here

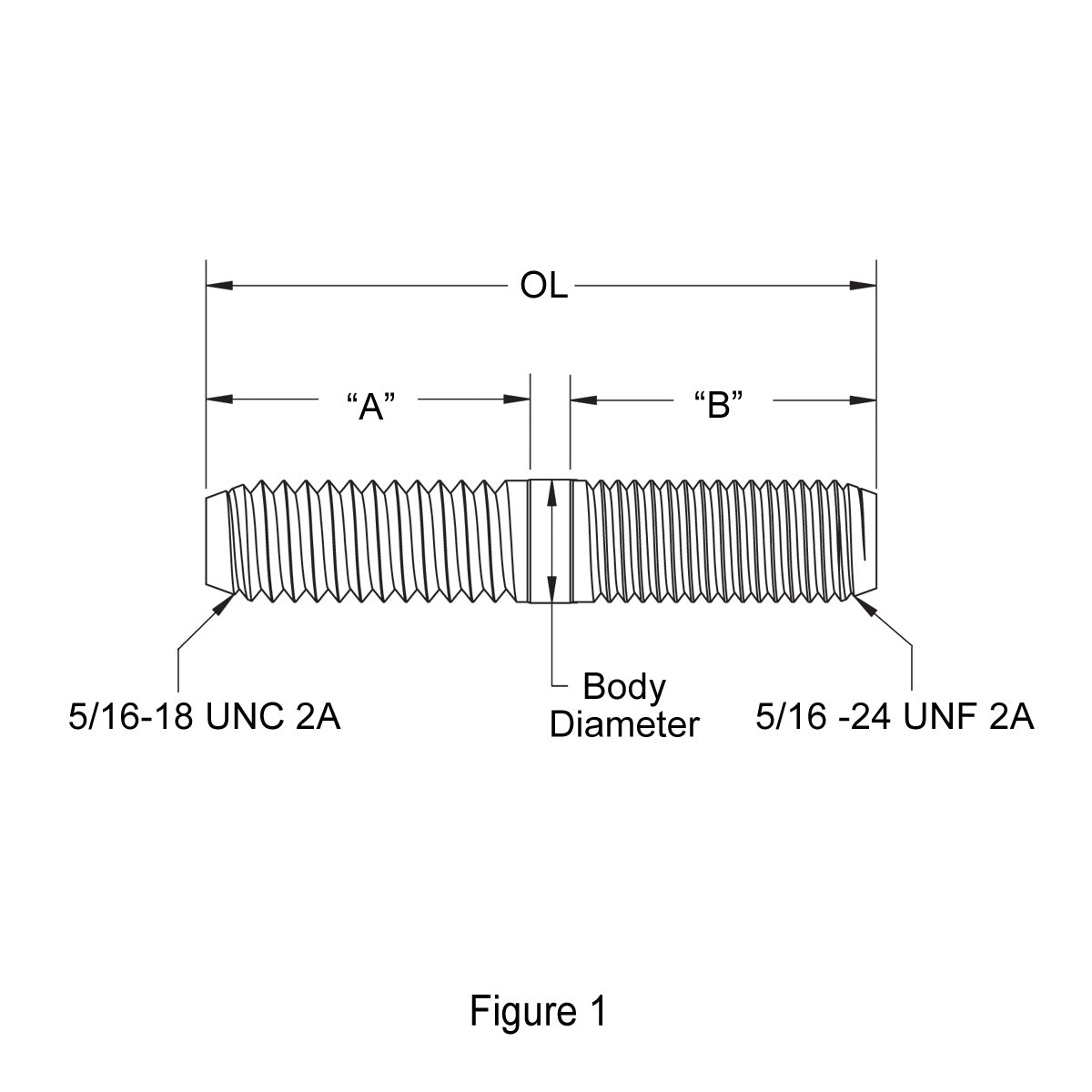

Material H.T. Steel
Quantity Pkg. of 8
O.L.
1.680"
Body Dia. 0.308"
A 0.810"
B 0.770"
Unique Identifier No. FR327789_01GAUS
