Nut (Rocker Arm), H.T. Steel, 5/16-24 Thread HD® M8™ (& CVO’s) 2017-2024
Nut (Rocker Arm), H.T. Steel, 5/16-24 Thread HD® M8™ (& CVO’s) 2017-2024
SKU:41007-4
Regular price
$24.05 USD
Regular price
$24.05 USD
Sale price
$24.05 USD
Unit price
per
HD® M8™ (& CVO’s) 2017-2024 (Pkg. of 8 Required)

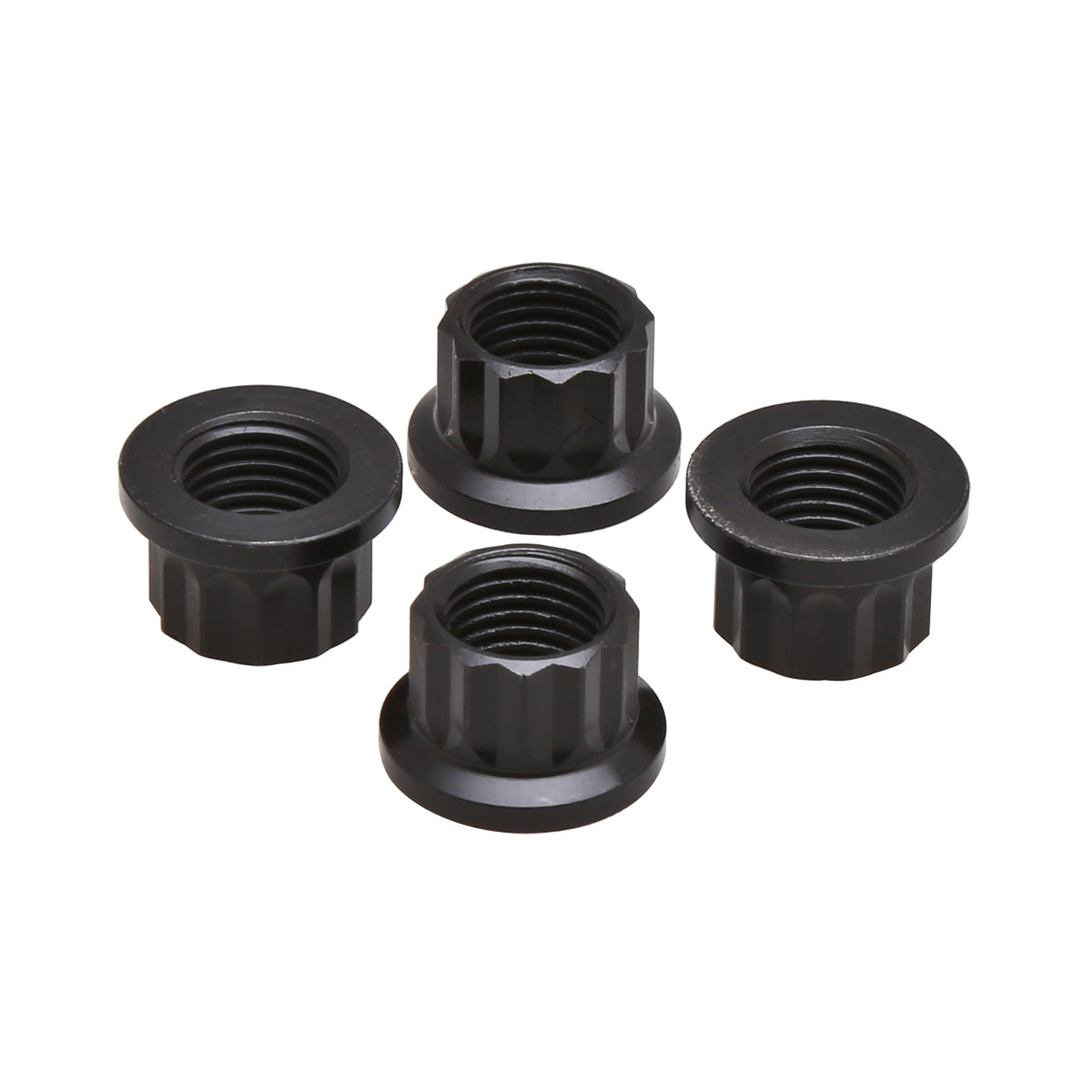

These nuts are single point machined from high tensile strength Aircraft Alloy Steel. During the machining process close tolerances and smooth surface finishes are maintained. Two critical factors for achieving correct fit and torque. After machining, the nuts are heat treated to a specific depth. This creates hard, wear resistant working surfaces, while retaining a ductile core to prevent cracking under load. The premium black oxide treatment provides excellent corrosion resistance and appearance.
Material | H.T. Steel |
Quantity | Pkg. of 4 |
Thread | 5/16-24 |
Overall Length | 0.350" |
Flange Diameter | 0.520" |
Note | Replacement nuts for Rocker Arm Tower Stud Kit, #20-21045, but can be used for general purpose (see diagram for detail) |
Unique Identifier No. | FR327789_01GAUS |
