Nut (Cylinder Stud), HT Steel, M9 x 1.25 Thread, Yamaha®, Various 660-700's 2001-2022
Nut (Cylinder Stud), HT Steel, M9 x 1.25 Thread, Yamaha®, Various 660-700's 2001-2022
SKU:41008-4
Couldn't load pickup availability
Yamaha® Grizzly™ 660 2002-2008
Yamaha® Raptor™ 660 2001-2005
Yamaha® Rhino™ 660 2004-2007
Yamaha® Grizzly™ 700 2007-2015
Yamaha® Grizzly™ 700 2019-2022
Yamaha® Raptor™ 700 2006-2021
Yamaha® Rhino™ 700 2008-2013
Yamaha® Viking™ 700 2014-2022
Yamaha® Kodiak™ 2019-2022
These nuts are manufactured from a high strength premium steel that promotes excellent surface finish and tight tolerances, two critical factors for achieving correct fit and torque. After machining, the nuts are heat treated to a specific depth. This creates hard, wear resistant working surfaces, while retaining a ductile core to prevent cracking under load. The premium black oxide treatment gives an excellent, corrosion resistant appearance.
| Material | H.T. Steel |
| Quantity | Pkg. of 4 |
| Thread | M9 X 125 |
| Overall Length | 0.315" |
| Flange Diameter | 0.615" |
| HEX Pattern | 11mm |

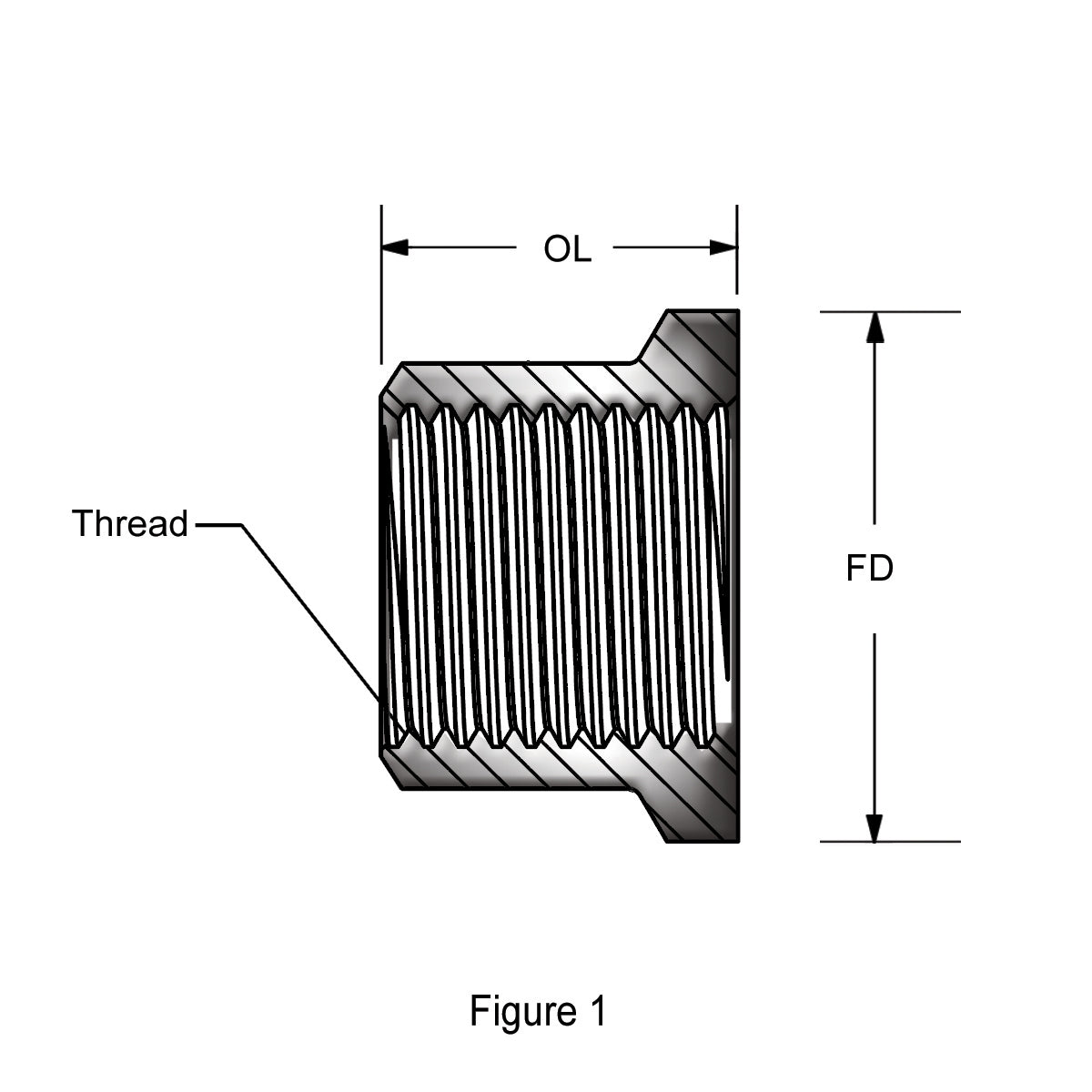

| Note | Replacement nuts for Stud Kits, #80-82450 & 80-82600, but can be used for general purpose ( see diagram for detail) |
| Unique Identifier No. | FR327789_01GAUS |
