Nut (Cylinder Stud), HT Steel, M12 x 1.25 Thread, 12mm O/S Dia. (Pkg. of 4)

Honda® CRF™ 450R 2002-2008
Honda® CRF™ 450X 2005-2017
Honda® TRX™ 450R/ ER 2006-2014

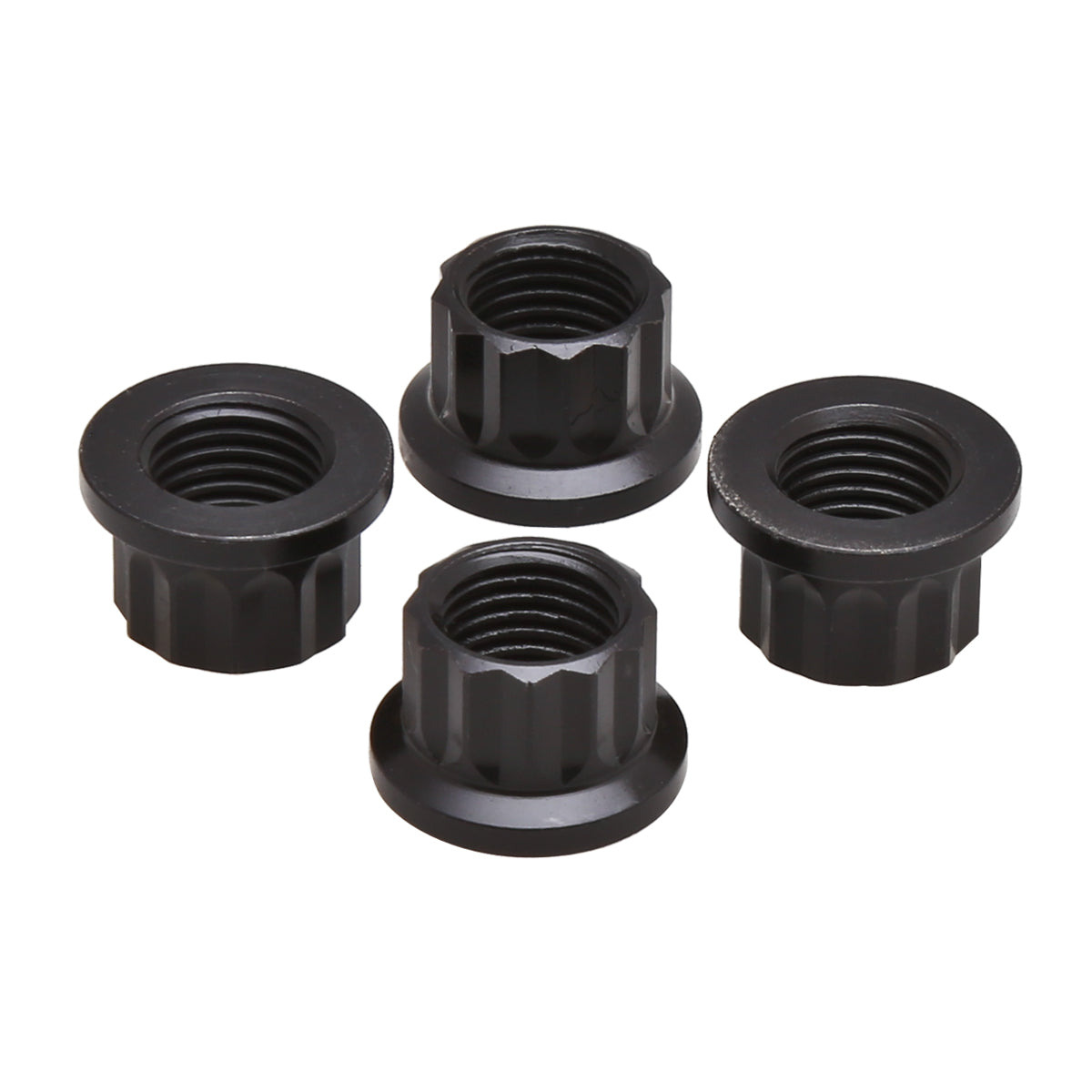

These nuts are manufactured from a high strength premium steel that promotes excellent surface finish and tight tolerances, two critical factors for achieving correct fit and torque. After machining, the nuts are heat treated to a specific depth. This creates hard, wear resistant working surfaces, while retaining a ductile core to prevent cracking under load. The premium black oxide treatment gives an excellent, corrosion resistant appearance.

Material	H.T. Steel
Quantity	Pkg. of 4
Thread	M12 X 1.25
Overall Length	0.505"
Flange Diameter	0.750"
HEX Pattern	14mm

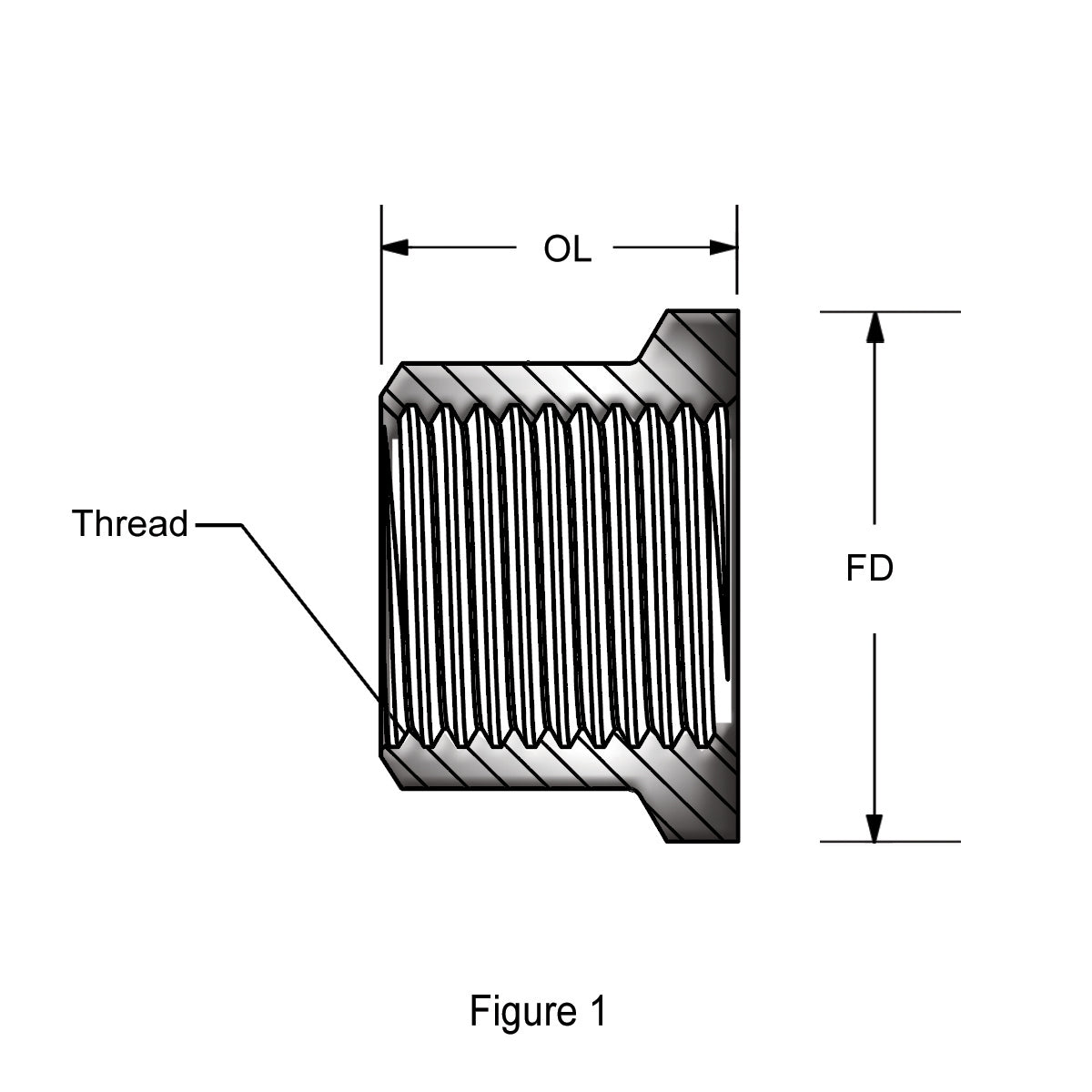

Note	Replacement nuts for Stud Kit, #30-33850, but can be used for general purpose (see diagram for detail)
Unique Identifier No.	FR327789_01GAUS
