Lash Cap, HT Steel, 7.00mm Minor Dia.
Lash Cap, HT Steel, 7.00mm Minor Dia.
SKU:94002-4
Regular price
$31.54 USD
Regular price
$31.54 USD
Sale price
$31.54 USD
Unit price
per
Couldn't load pickup availability

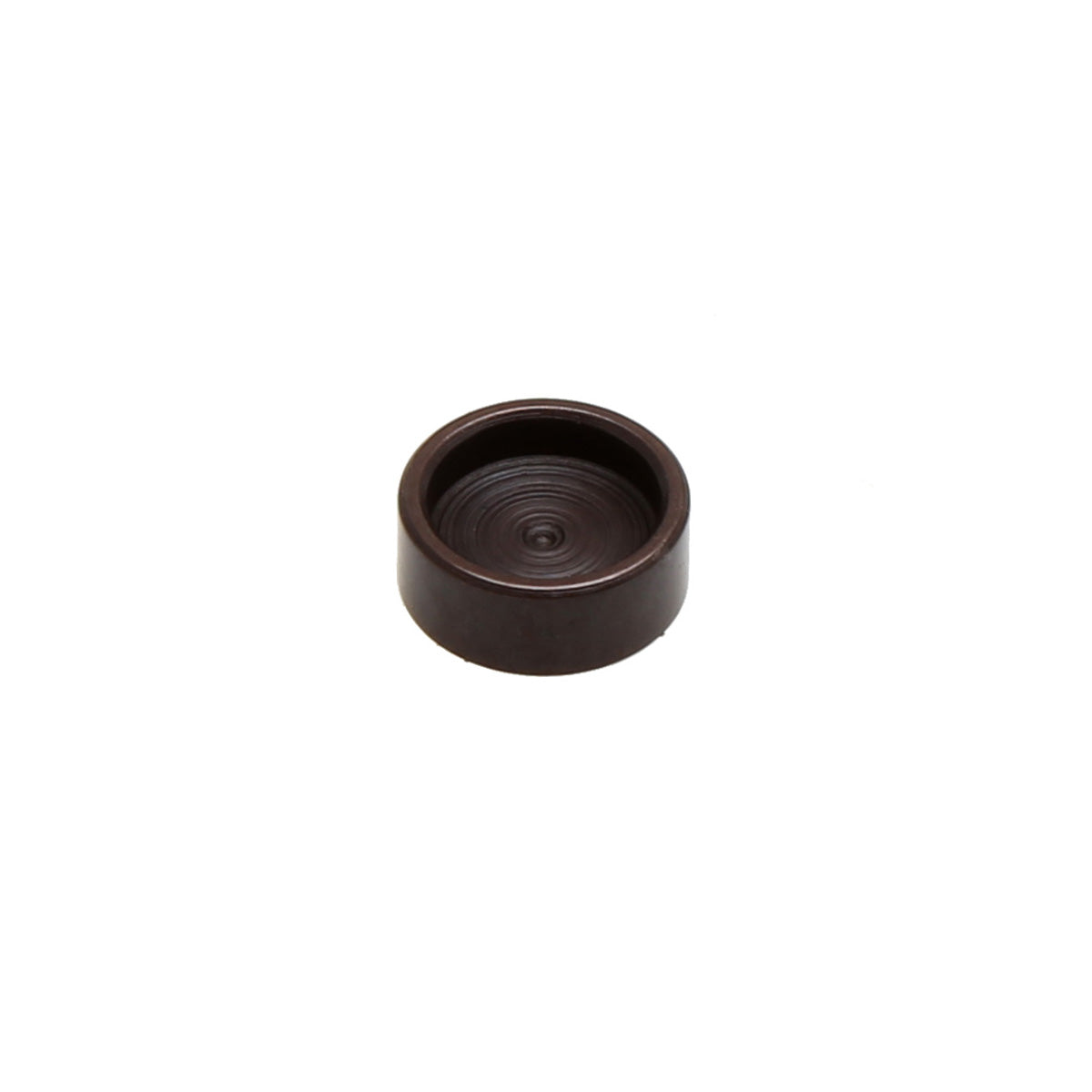

KPMI® lash caps are machined from a tough steel that is then heat treated to a specific depth creating a hard impact and wear resistant surface, with a ductile core so they do not crack.
| Material | H.T. Steel |

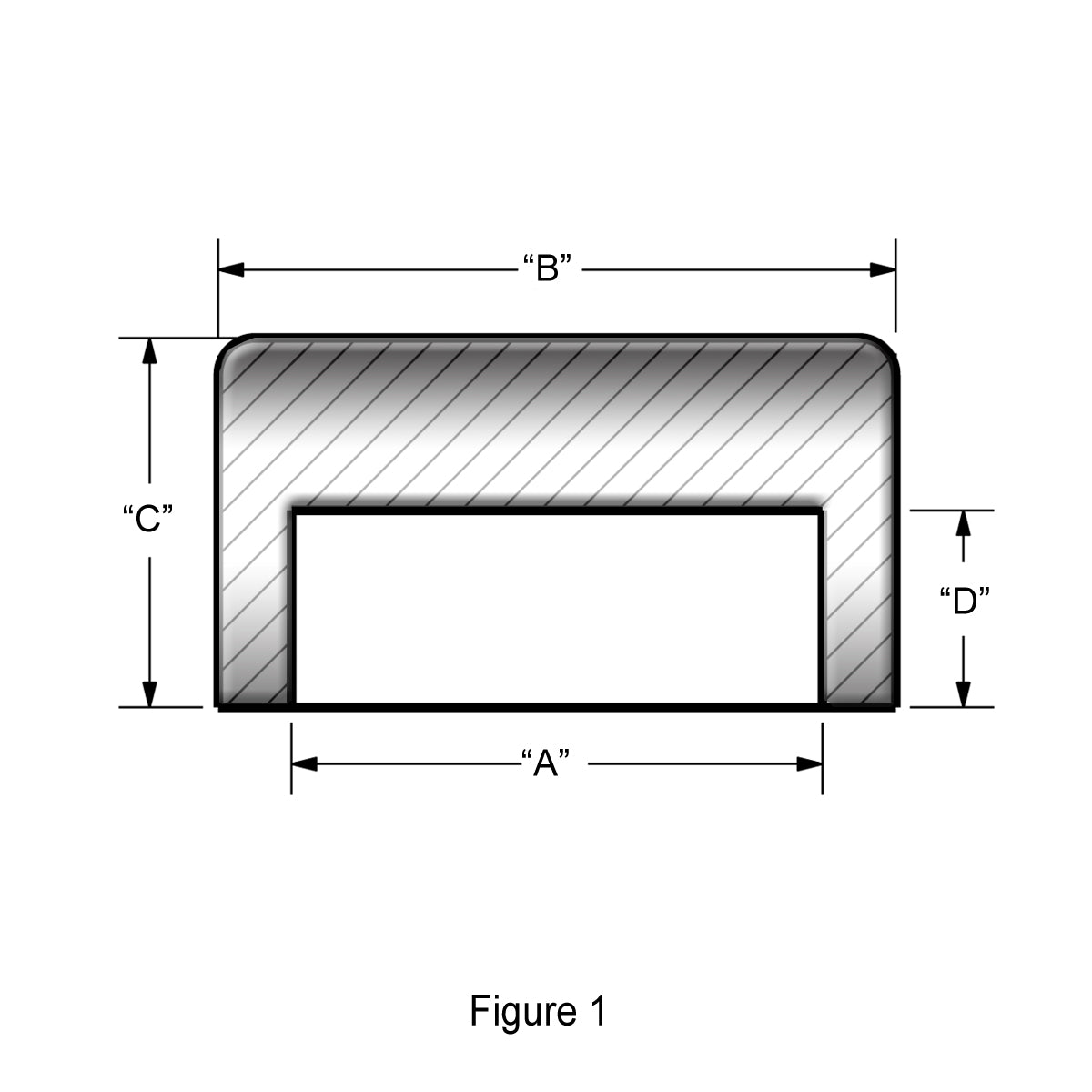

| Reference | See Figure 1 |
| Quantity |
Various |
| Bore Diameter "A" | 7.00mm / 0.2756" |
| Outside Diameter "B" | 0.335" |
| Overall Length "C" | 0.160" |
| Counterbore Depth "D" | 0.080" |
| Roof Thickness ("C"-"D") | 0.080" |
| Unique Identifier No. | FR327789_01GAUS |
