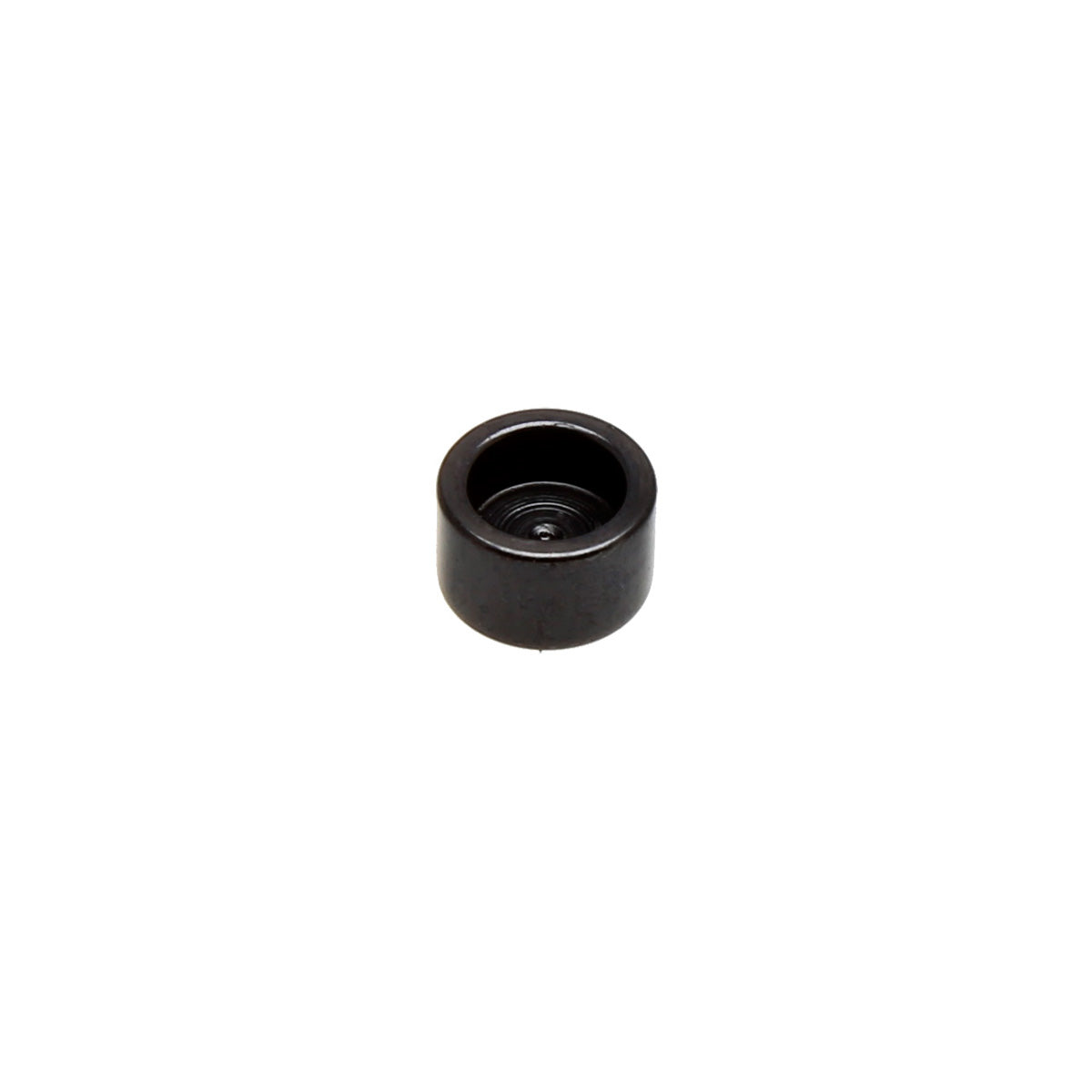

Lash Cap, HT Steel, 5.50mm Minor Dia.
Lash Cap, HT Steel, 5.50mm Minor Dia.
SKU:94004-4
Regular price
$31.54 USD
Regular price
$31.54 USD
Sale price
$31.54 USD
Unit price
per
Couldn't load pickup availability
KPMI® lash caps are machined from a tough steel that is then heat treated to a specific depth creating a hard impact and wear resistant surface, with a ductile core so they do not crack.
| Material | H.T. Steel |

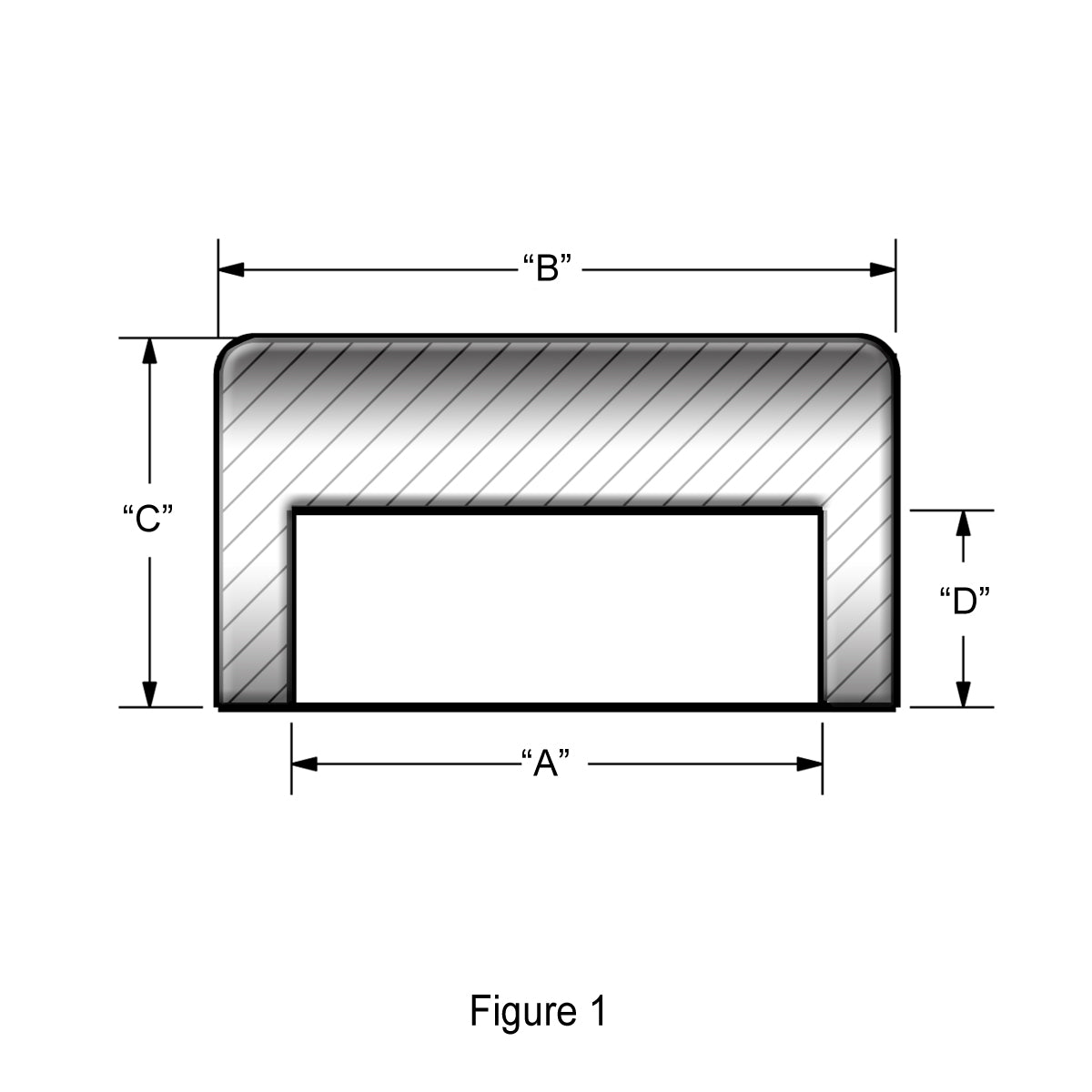

| Reference | See Figure 1 |
| Quantity |
Various |
| Bore Diameter "A" | 5.50mm / 0.2165" |
| Outside Diameter "B" | 0.295" |
| Overall Length "C" | 0.090" |
| Counterbore Depth "D" | 0.050" |
| Roof Thickness ("C"-"D") | 0.040" |
| Unique Identifier No. | FR327789_01GAUS |
