Keeper, HT Steel, OEM Replacement, Yamaha®, WR™ / YZ™ 400F / 426F, 1998-2002
Keeper, HT Steel, OEM Replacement, Yamaha®, WR™ / YZ™ 400F / 426F, 1998-2002
SKU:80-80130
Regular price
$15.77 USD
Regular price
$15.77 USD
Sale price
$15.77 USD
Unit price
per
Couldn't load pickup availability

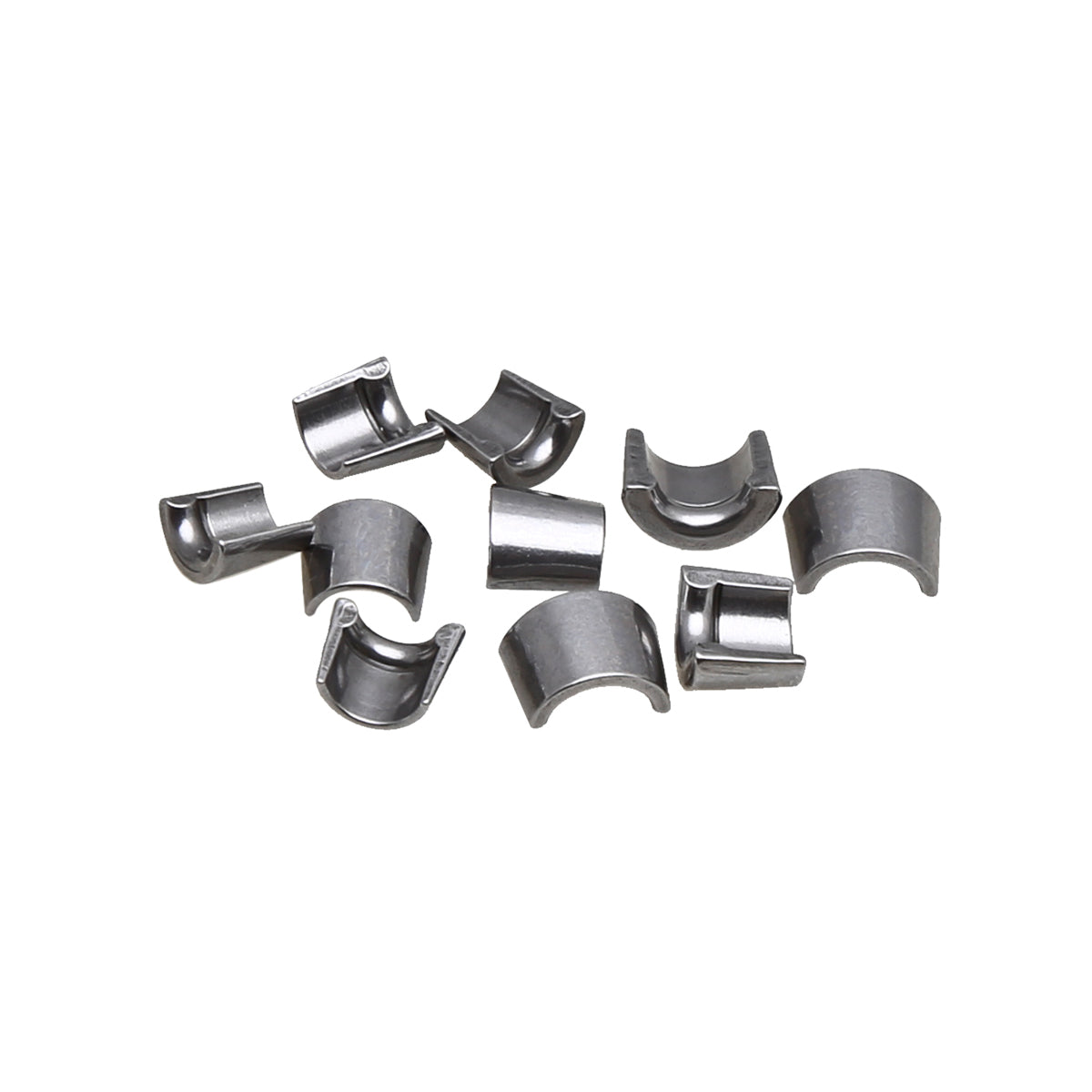

KPMI® manufactures keepers from high tensile strength H. T. Steel.
Close attention to details such as taper angle, bead location, ID, OD, radius dimension of bead style keepers, and width of square groove style keepers insure proper, repeatable fitment and assembly locations.
| Material | H.T. Steel |
| Quantity | 3 prs. Intake/ 2 prs. Exhaust |
| Type | Intake / Exhaust |

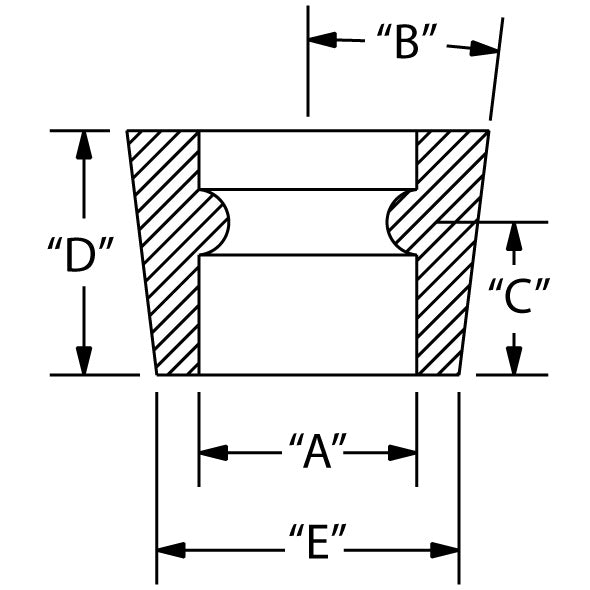

| Intake Stem Diameter "A" | 0.177" |
| Intake Keeper Angle "B" | 6.0º |
| Intake Bead Height "C" | 0.186" |
| Intake Overall Length "D" | 0.221” |
| Intake Minor Diameter "E" | 0.212” |
| Exhaust Stem Diameter "A" | 0.196" |
| Exhaust Keeper Angle "B" | 6.5º |
| Exhaust Bead Height "C" | 0.181” |
| Exhaust Overall Length "D" | 0.216” |
| Exhaust Minor Diameter "E" | 0.270” |
| Note | The bead height is referenced from the minor diameter of the keeper to the center of the bead. |
| Unique Identifier No. | FR327789_01GAUS |
