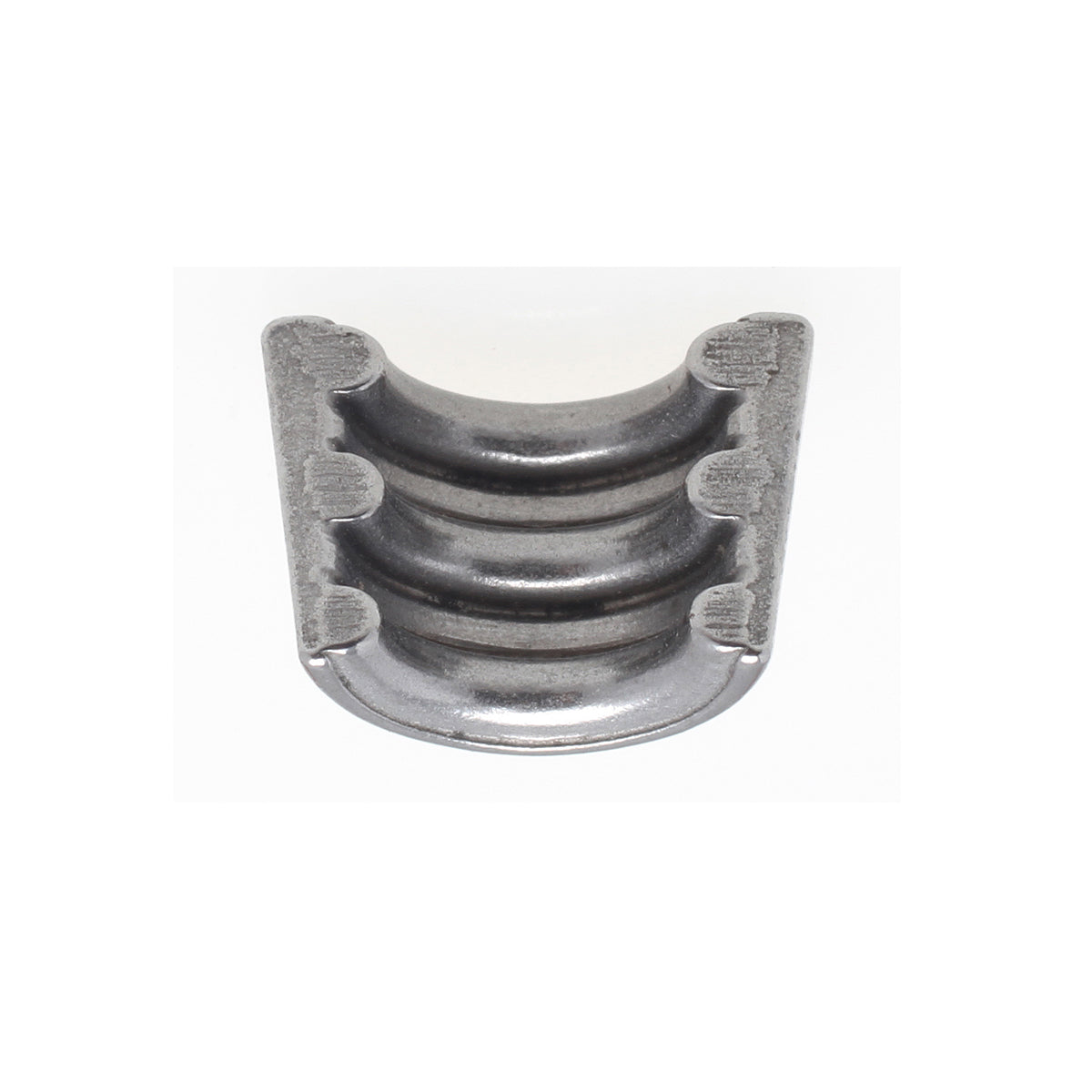

Keeper, HT Steel, 0.236" Stem x 7.0° HD®, M8™, 2017-2023

Keeper, HT Steel, 0.236" Stem x 7.0° HD®, M8™, 2017-2023

SKU:51029-4

Regular price $33.30 USD
Regular price $33.30 USD Sale price $33.30 USD
Sale Sold out
Quantity

California Prop 65

All KPMI® keepers are single-point machined from high tensile strength billet material (with the exception of forged styles). What this means is that each keeper is machined from billet high tensile strength material.  After machining, the keepers are split, tumbled and then heat treated. At KPMI® we pay close attention to the surface finish and tolerance of; all diameters, taper angle, and bead location. This type of detail insures repeatability you can count on.

Keeper Style Triple Radius Bead
Quantity Various

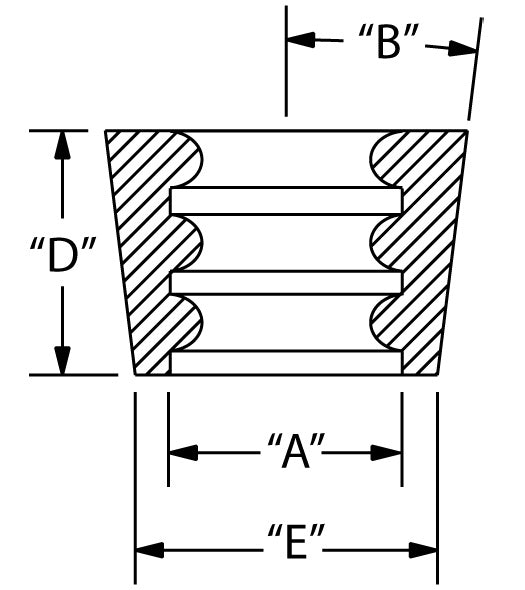

Stem Diameter "A" 0.236"
Keeper Angle "B" 7.0º
Bead Height "C" ---
Overall Length "D" 0.200”
Minor Diameter "E" 0.282”
Rep. HD® OEM P/N 18100060
Note The bead height is referenced from the minor diameter of the keeper to the center of the bead.
Unique Identifier No. FR327789_01GAUS
