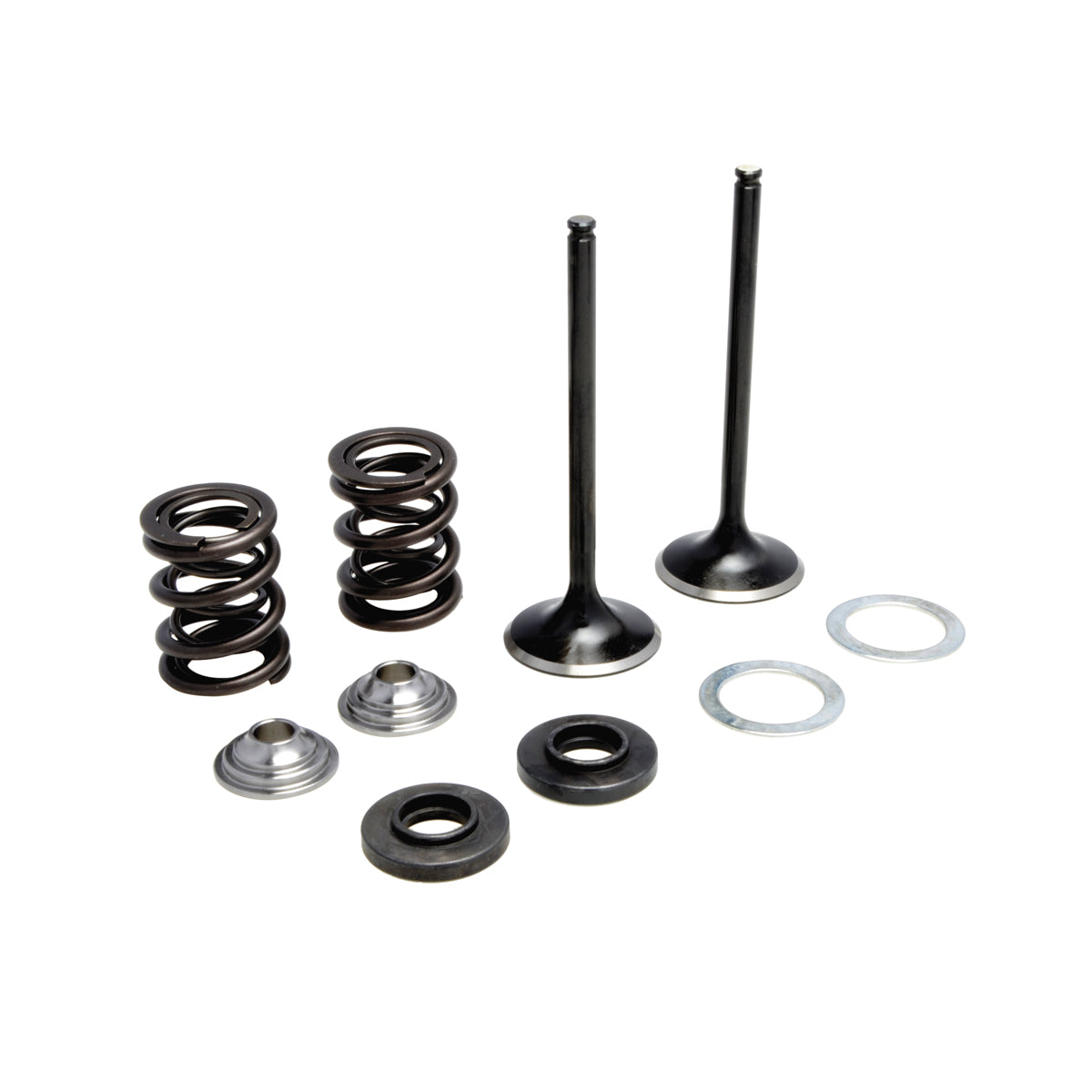

Intake Only Spring Kit, Titanium, 0.435" Lift, Various KTM® Applications

Intake Only Spring Kit, Titanium, 0.435" Lift, Various KTM® Applications

SKU:96-96070

Regular price $185.23 USD
Regular price $185.23 USD Sale price $185.23 USD
Sale Sold out

California Prop 65

KTM® All RFS ATV Engines 450cc-525cc 2008-2009
KTM® All RFS Dirt Bike Engines 400cc-560cc 2000-2009

Since 1939 KPMI® has taken great pride in our ability to design innovative Performance improvements , valvetrain. This innovative ability has never been more apparent than with the development of the high tech lightweight stainless steel conversion systems , the incredibly stressed and torturous environment in today's ultra high revving 4-stroke singles.


The challenge to engineer valvetrain that would out Perform OEM systems that in some cases included titanium components was not an easy one. This task would require the concentrated efforts of every member of KPMI®'s design team. It was apparent early on that a lightweight high flowing KPMI® stainless race valve was not going to be the complete answer , these engines. Working together as a team enabled KPMI® to evolve with a "unified system" approach. In fact, this innovative lightweight system would not only out Perform factory parts, but outlive them as well.

Today KPMI® proudly offers many complete valvetrain systems , a host of applications. Also, , applications with low hours and/or apparent In face recession and Ex components that meet factory specifications consider KPMI®'s Intake Only Systems when Performing necessary service. Bear in mind that KPMI® does not advise partial conversions on race bikes and/or engines that have reached factory advertised service limits. Always consult with qualified professionals suited to inspect your machine.

Model Year Coverage Click Here
Installation Instructions Click Here
Type Intake
Retainer Material Titanium
Valve Lift 0.435"
Installed Height 1.175"
Seat Pressure 75#
Open Pressure 214#
@ Lift 0.435"
Valve Type  Intake
Valve Material Black Diamond™ Stainless
Coating Black Nitroneg
Intake Head Diameter 35.00mm / 1.378"
Intake Stem Diameter 6.0mm / 0.2350"
Intake Tulip 20º
Intake Overall Length 3.815"
Remarks Standard
Unique Identifier No. FR327789_01GAUS
