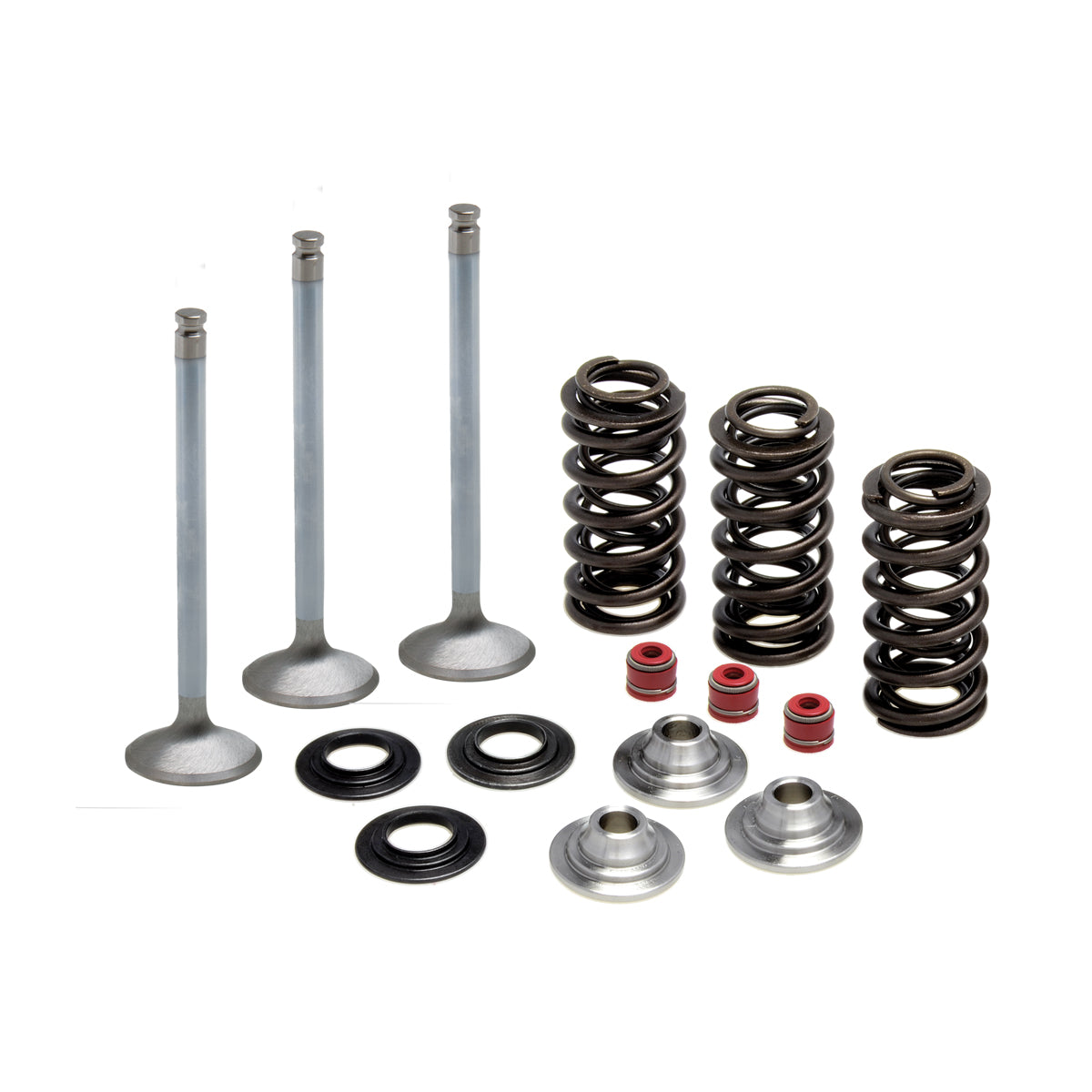

Intake Only Spring Kit, Titanium, 0.380" Lift, Various Yamaha® Applications

Intake Only Spring Kit, Titanium, 0.380" Lift, Various Yamaha® Applications


Regular price $303.29 USD
Regular price $303.29 USD Sale price $303.29 USD
Sale Sold out

 California Prop 65

Yamaha® YFZ™ 450 2004-2009
Yamaha® YFZ™ 450X 2008-2011
Yamaha® YFZ™ 450R 2009-2023
Yamaha® YFZ™ 450SE 2010-2023
Yamaha® WR™ 450 2003-2015
Yamaha® YZ™ 450F 2003-2009

Since 1939 KPMI® has taken great pride in our ability to design innovative Performance improvements , valvetrain. This innovative ability has never been more apparent than with the development of the high tech lightweight stainless steel conversion systems , the incredibly stressed and torturous environment in today's ultra high revving 4-stroke singles.

The challenge to engineer valvetrain that would out Perform OEM systems that in some cases included titanium components was not an easy one. This task would require the concentrated efforts of every member of KPMI®'s design team. It was apparent early on that a lightweight high flowing KPMI® stainless race valve was not going to be the complete answer , these engines. Working together as a team enabled KPMI® to evolve with a "unified system" approach. In fact, this innovative lightweight system would not only out Perform factory parts, but outlive them as well.

Today KPMI® proudly offers many complete valvetrain systems , a host of applications. Also, , applications with low hours and/or apparent In face recession and Ex components that meet factory specifications consider KPMI®'s Intake Only Systems when Performing necessary service. Bear in mind that KPMI® does not advise partial conversions on race bikes and/or engines that have reached factory advertised service limits. Always consult with qualified professionals suited to inspect your machine.

Installation Instructions Click Here
Type Intake/ Exhaust
Retainer Material Titanium
Valve Lift 0.380"
Installed Height 1.105"
Seat Pressure 39#
Open Pressure 86#
Intake @ Lift 0.380"
Valve Type  Intake/ Exhaust
Valve Material White Diamond® Stainless
Coating Hard Chrome
Intake Head Diameter 27.00mm/ 1.063"
Intake Stem Diameter 4.5mm/ 0.1765"
Intake Tulip 15º
Intake Overall Length Intake (Outer)- 3.040"
Intake (Center)- 3.000"
Unique Identifier No. FR327789_01GAUSt
