Valve Guide Reamer, HSS, 0.2357"

Valve Guide Reamer, HSS, 0.2357"

SKU:GR-2357

Regular price $86.98 USD
Regular price $86.98 USD Sale price $86.98 USD
Sale Sold out

California Prop 65

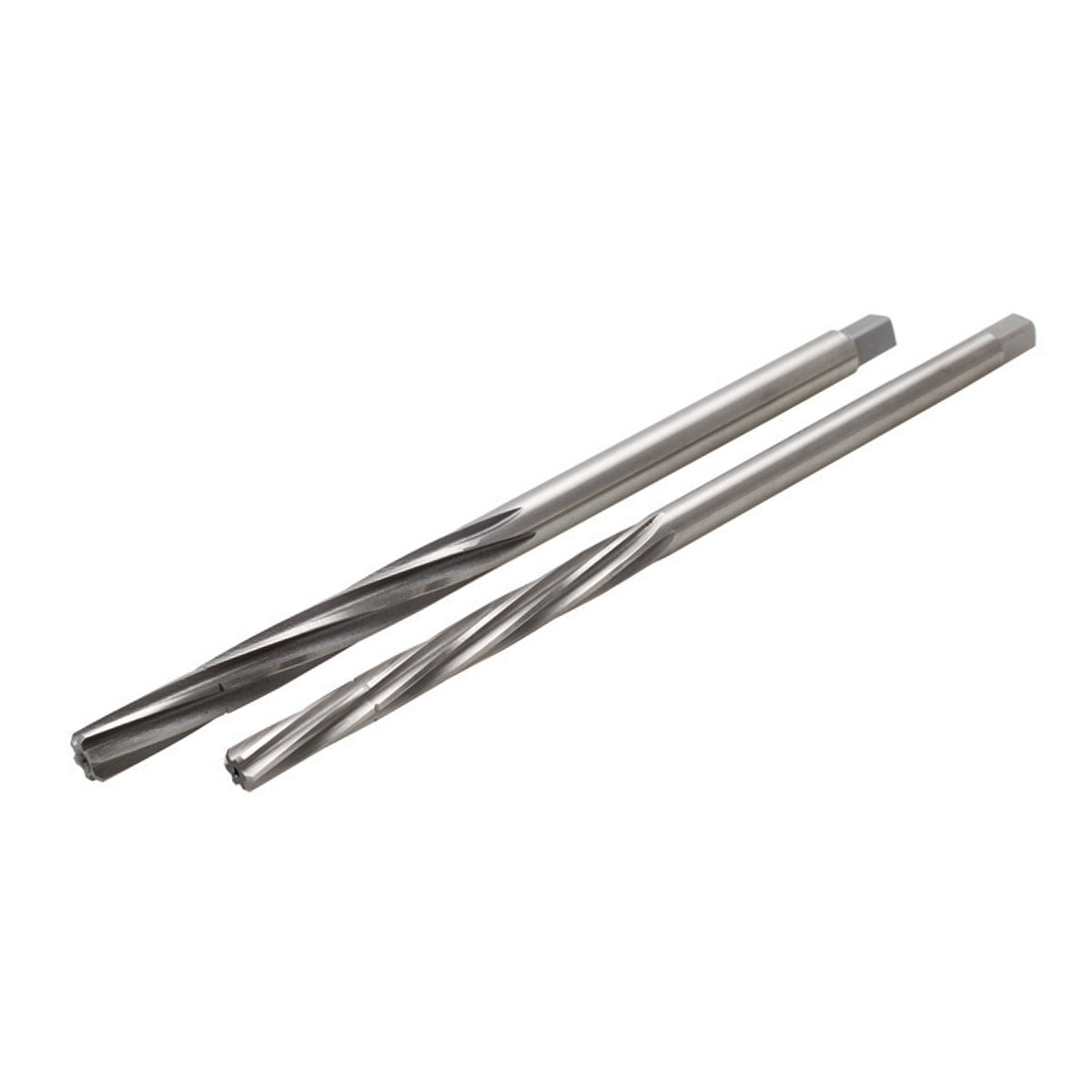

KPMI® valve guide reamers are manufactured from premium hardened High Speed Steel. The advertised finished reamer diameters are ground to: +/- .0002”. These spiral fluted reamers incorporate a 1.00” long pilot (reduced diameter) which gets inserted into an unfinished guide bore, to align the reamer to the valve guide centerline, during the sizing process. These reamers have been specifically designed for KPMI® Manganese Bronze and Cast Iron valve guides. Do not attempt to use these reamers to size C630 Nickel Aluminum Bronze guides. Also, once a reamer is used on Cast Iron, it is not advisable to then use it on a bronze guide.

Click Here to Download KPMI® Guide Sizing Tool Flyer

Material Steel

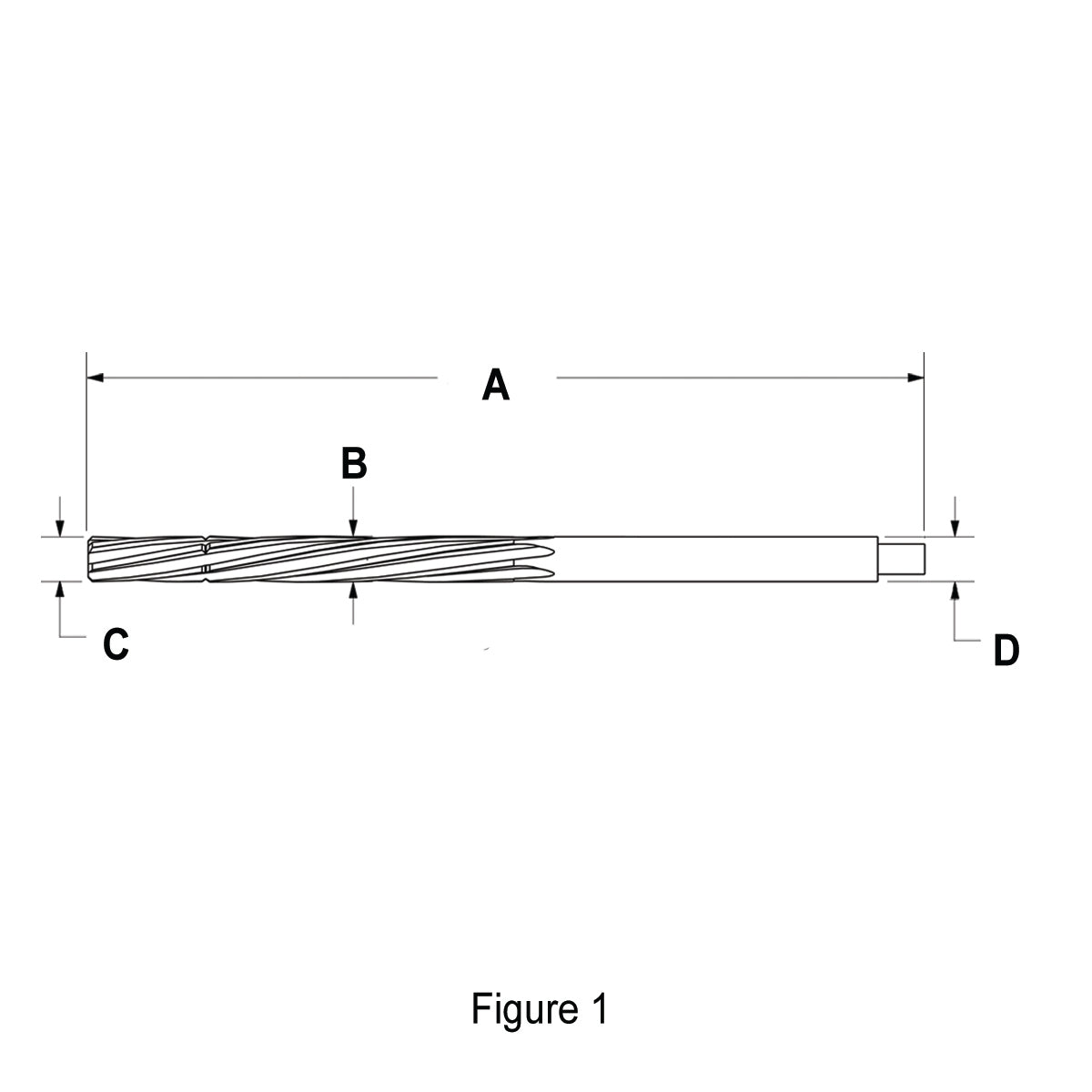

Reference  See Figure 1
Quantity
Pkg. of 1
Overall Length "A" 7.125"
Cutting Diameter "B" 0.2357"
Pilot Diameter "C" 0.229"
Shank Diameter "D" 0.228"
Note These reamers have been specifically designed for KPMI® Manganese Bronze and Cast Iron valve guides. Do not attempt to use these reamers to size C630 Nickel Aluminum Bronze guides. Also, once a reamer is used on Cast Iron, it is not advisable to then use it on a bronze guide.
Unique Identifier No. FR327789_01GAUS
