Guide, C674, Intake, Various Yamaha® Applications
Guide, C674, Intake, Various Yamaha® Applications
SKU:80-80220
Couldn't load pickup availability
Yamaha® YFZ™ 450 2004-2009
Yamaha® YFZ™ 450X 2008-2011
Yamaha® YFZ™ 450R 2009-2025
Yamaha® YFZ™ 450R SE 2010-2025
Yamaha® WR™ 450F 2003-2015
Yamaha® YZ™ 450F 2003-2009
These Engine Builder valve guides have been designed with the price conscious builder in mind. Expect the same exacting KPMI® tolerances, but with a reduced toughness / wear-ability when compared to premium C630 Nickel Aluminum Bronze valve guides. The softer Manganese guides are easily reamed, and then can be delicately finished with our high quality ball hones. Now, with any battery operated or electric drill you can ream and hone manganese valve guides in less time and in the absence of expensive honing equipment required to properly size tough Nickel Bronze guides.
Click Here to Download KPMI® Guide Sizing Tool Flyer
Click Here to Download KPMI® Seal Catalog

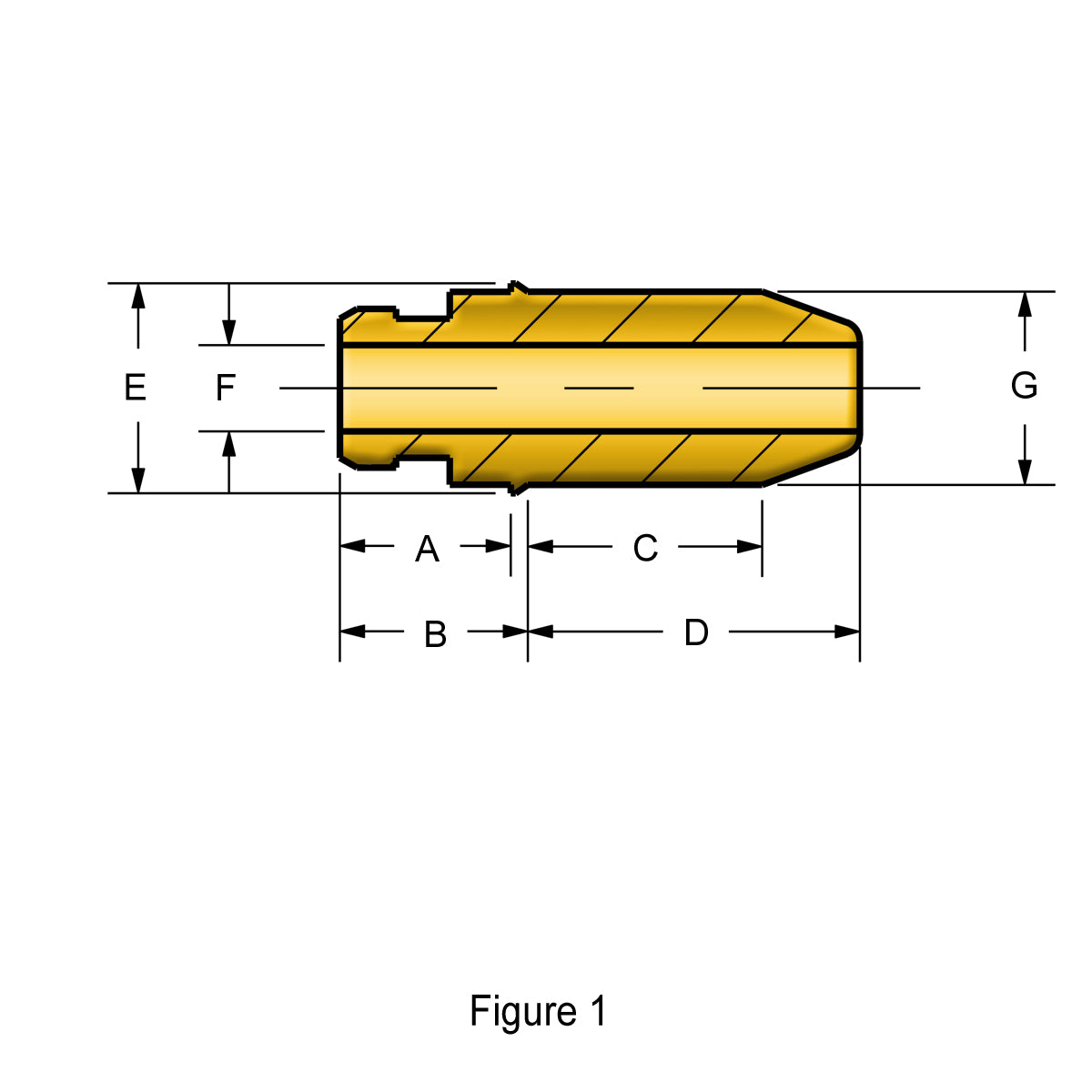

| Quantity | Pkg. of 1 |
| Type | Intake |
| Outside Dia. (G) | 0.3957"(Std.)/ 0.4057" (+0.010") |
| A | 0.350" |
| B | 0.385" |
| C | 0.480" |
| D | 0.680" |
| E | 0.430" |
| F | 0.1768" |
| Unique Identifier No. | FR327789_01GAUS |
