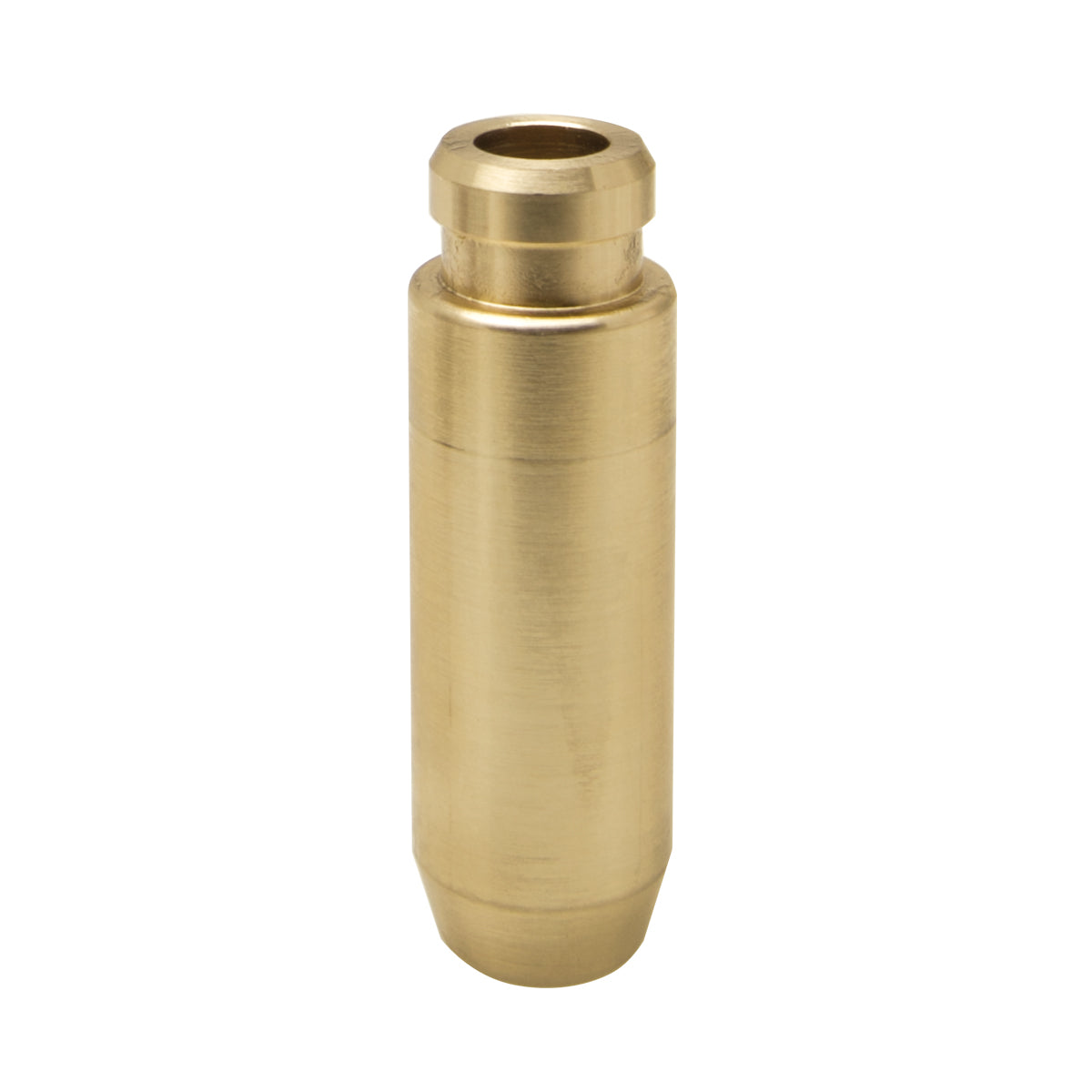

Guide, C674, Exhaust, Polaris®, Various 900/ 1000's, 2013-2023
Guide, C674, Exhaust, Polaris®, Various 900/ 1000's, 2013-2023
SKU:82-82420
Couldn't load pickup availability
Excluding RZR™ 900 2017 - up and 1000's
Polaris® Ranger™ 900 XP 2013-2019
Polaris® RZR™ 900 2015-2023 (& TRAIL)
Polaris® Ranger™ 1000 (&XP) 2017-2023
These Engine Builder valve guides have been designed with the price conscious builder in mind. Expect the same exacting KPMI® tolerances, but with a reduced toughness / wear-ability when compared to premium C630 Nickel Aluminum Bronze valve guides. The softer Manganese guides are easily reamed, and then can be delicately finished with our high quality ball hones. Now, with any battery operated or electric drill you can ream and hone manganese valve guides in less time and in the absence of expensive honing equipment required to properly size tough Nickel Bronze guides.
| Quantity | Pkg. of 1 |
| Type | Exhaust |

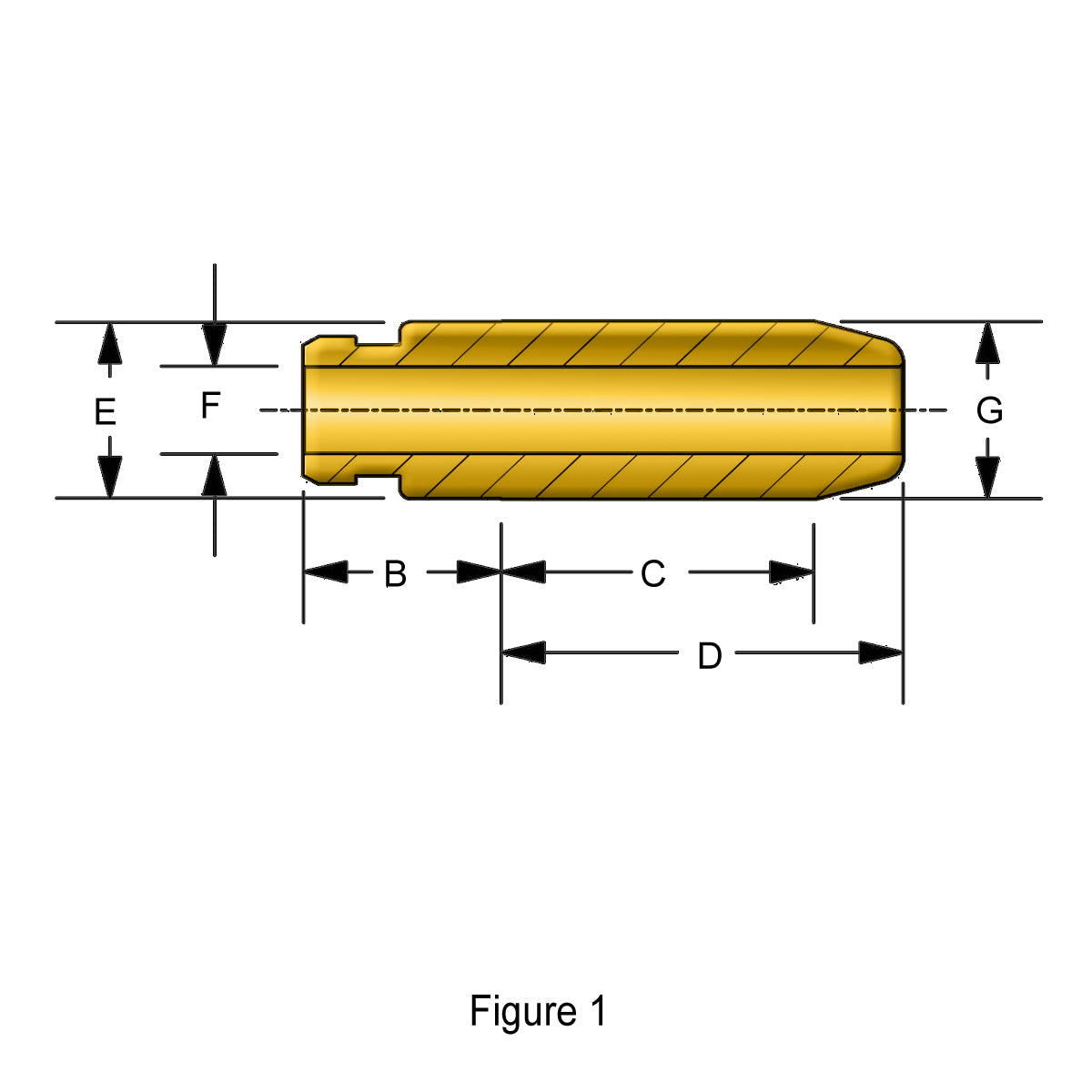

| Outside Dia. (G) | 0.4353"(Std.)/ 0.4363" (+0.001")/ 0.4373" (+0.002")/ 0.4453" (+0.010") |
| A | --- |
| B | 0.455" |
| C | 1.090" |
| D | 1.190" |
| E | 0.433" |
| F | 0.2155" |
| Note | These guides are compatible with both KPMI® seals, #71016-XX and the OEM tophat seals. |
| Unique Identifier No. | FR327789_01GAUS |
