Guide, C630, Mng. Brz., Cast Iron, Exhaust, Various HD® Applications

Guide, C630, Mng. Brz., Cast Iron, Exhaust, Various HD® Applications

SKU:20-2130

Regular price $28.30 USD
Regular price $28.30 USD Sale price $28.30 USD
Sale Sold out
Material
Outside Dia.: (G)

California Prop 65

Harley-Davidson® Evolution 1984-1999
Harley-Davidson® Sportster 883cc 1986-2003
Harley-Davidson® XL 1100cc 1986-1987
Harley-Davidson® Sportster 1200cc 1988-2003
Harley-Davidson® Twin Cam 88" 1999-2004

C630 Bronze: We choose to use the copper based C63000 nickel-aluminum bronze as a material to make our bronze valve guides because of its ideal characteristics for the application. The 5% nickel content provides superior resistance to wear, and the approximately 80 percent copper content delivers outstanding heat conductivity. KPMI® guide profiles are designed to have minimal effect on the airstream while maintaining critical cross sectional thickness in high temperature areas, which promotes high performance and endurance.

Manganese Bronze: These Engine Builder valve guides have been designed with the price conscious builder in mind. Expect the same exacting KPMI® tolerances, but with a reduced toughness / wear-ability when compared to premium C630 Nickel Aluminum Bronze valve guides. The softer Manganese guides are easily reamed, and then can be delicately finished with our high quality ball hones. Now, with any battery operated or electric drill you can ream and hone manganese valve guides in less time and in the absence of expensive honing equipment required to properly size tough Nickel Bronze guides.

Cast Iron: After chemically separating several samples of cast iron material , analysis and evaluating the test data, we decided to have our own specification of cast iron made exclusively , us. We specify elements such as carbon, silicon, manganese, nickel, chromium, copper and sulfur to produce a highly pearlitic structure with dense fine grains , excellent wear resistance.

Click Here to Download KPMI® Guide Sizing Tool Flyer

Click Here to Download KPMI® Seal Catalog

Quantity Pkg. of 1
Type Exhaust

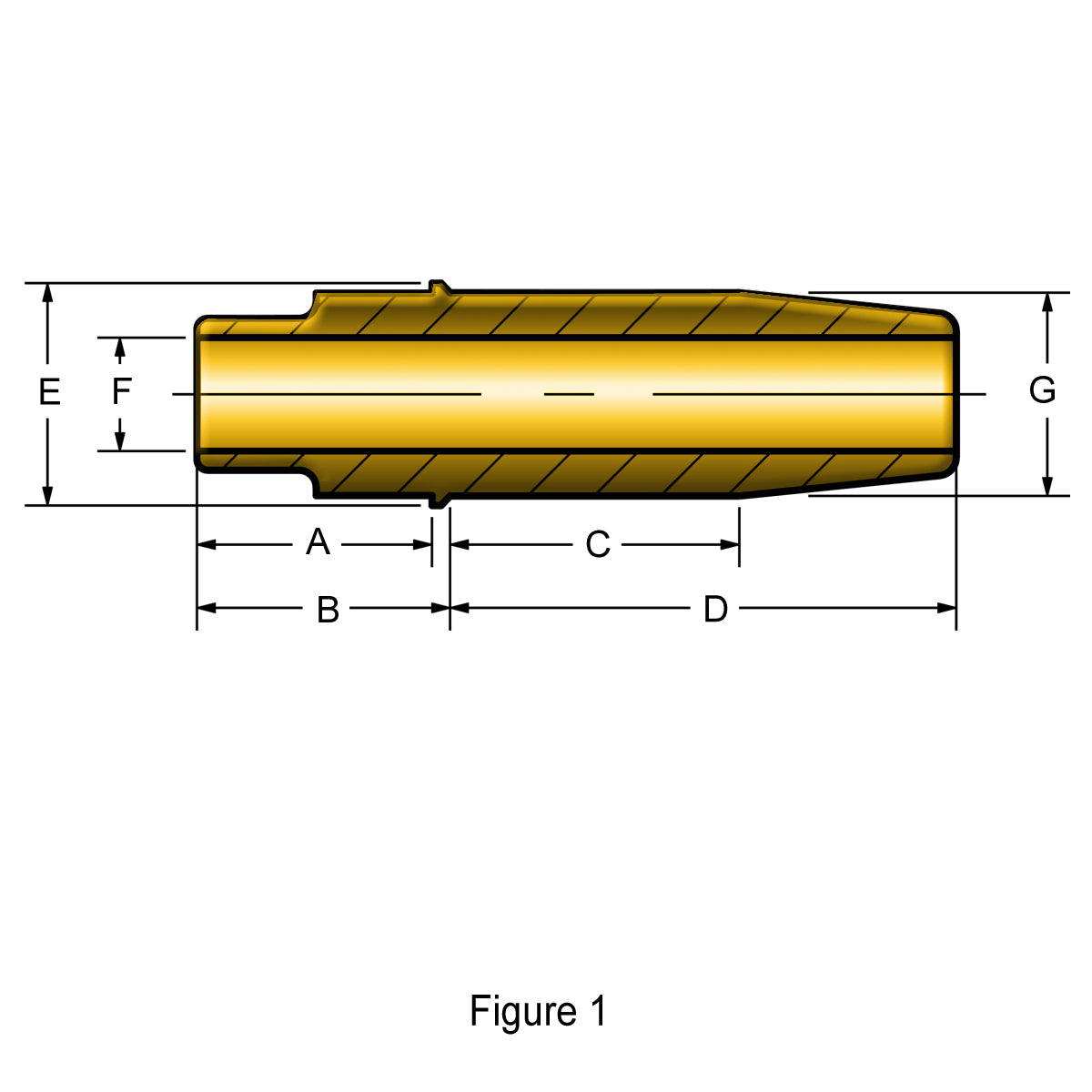

Outside Dia, (G) 0.5620"(Std.)/ 0.5630"(+0.001")/ 0.5640" (+0.002")/ 0.5650" (+0.003")/ 0.5660" (+0.004")/ 0.5720" (+0.010")
A 0.650"
B 0.700"
C 1.150"
D 1.450"
E 0.615"
F 0.3098"
Unique Identifier No. FR327789_01GAUS
