Guide, C630, Intake, Can-Am®, Various 330-1000cc, 2004-2020
Guide, C630, Intake, Can-Am®, Various 330-1000cc, 2004-2020
SKU:91-91170
Couldn't load pickup availability
Can Am® Outlander 330/ 400 Singles 2004-2015
Can Am® Various 500-1000cc Twins* 2006-2020
*Applications OEM spec'd with 31.0mm Intake Valves and 27.0mm Exhaust Valves ONLY
Including Commander/ Defender/ Maverick/ Outlander/ Renegade/ Traxter • 500/ 570/ 650/ 800/ 1000cc Except 2020 Maverick Sport and 2020 Traxter HD10
We choose to use the copper based C63000 nickel-aluminum bronze as a material to make our bronze valve guides because of its ideal characteristics for the application. The 5% nickel content provides superior resistance to wear, and the approximately 80 percent copper content delivers outstanding heat conductivity. KPMI® guide profiles are designed to have minimal effect on the airstream while maintaining critical cross sectional thickness in high temperature areas, which promotes high performance and endurance.
Click Here to Download KPMI® Guide Sizing Tool Flyer
Click Here to Download KPMI® Seal Catalog

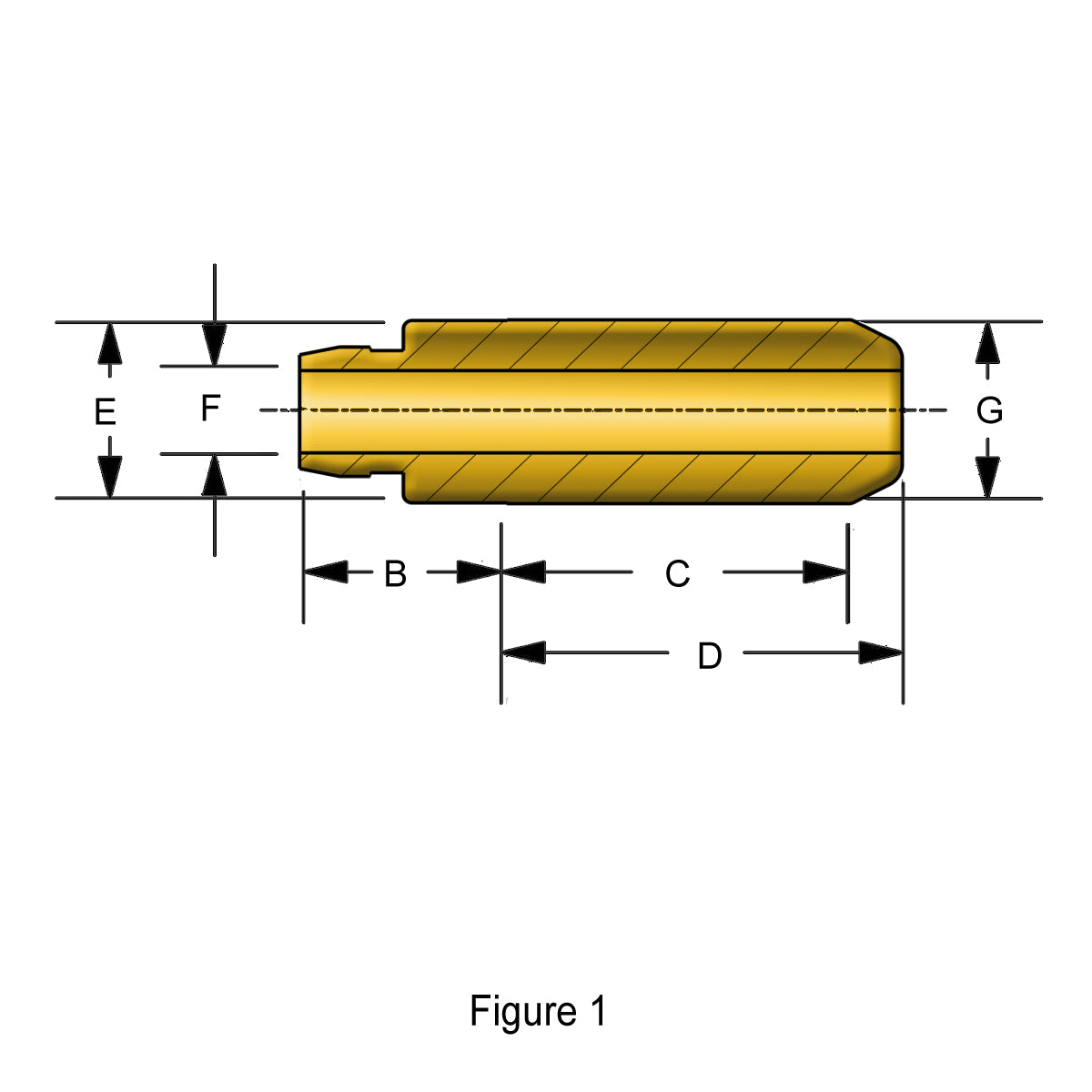

| Quantity | Pkg. of 1 |
| Type | Intake |
| Outside Dia. (G) | 0.4362" (Std.)/ 0.4372" (+0.001")/ 0.4382" (+0.002")/ 0.4462" (+0.010") |
| A | --- |
| B | 0.470" |
| C | 0.780" |
| D | 0.895" |
| E | 0.433" |
| F | 0.1958" |
| Unique Identifier No. | FR327789_01GAUS |
