Guide, C630, Intake, BRP®, Rotax® Air Cooled Singles 500/600, 1982-2006

Guide, C630, Intake, BRP®, Rotax® Air Cooled Singles 500/600, 1982-2006

SKU:91-0478

Regular price $17.70 USD
Regular price $17.70 USD Sale price $17.70 USD
Sale Sold out
Outside Dia. (G)

California Prop 65

We choose to use the copper based C63000 nickel-aluminum bronze as a material to make our bronze valve guides because of its ideal characteristics for the application. The 5% nickel content provides superior resistance to wear, and the approximately 80 percent copper content delivers outstanding heat conductivity. KPMI® guide profiles are designed to have minimal effect on the airstream while maintaining critical cross sectional thickness in high temperature areas, which promotes high performance and endurance.

Click Here to Download KPMI® Guide Sizing Tool Flyer

Click Here to Download KPMI® Seal Catalog

Quantity Pkg. of 1
Type Intake

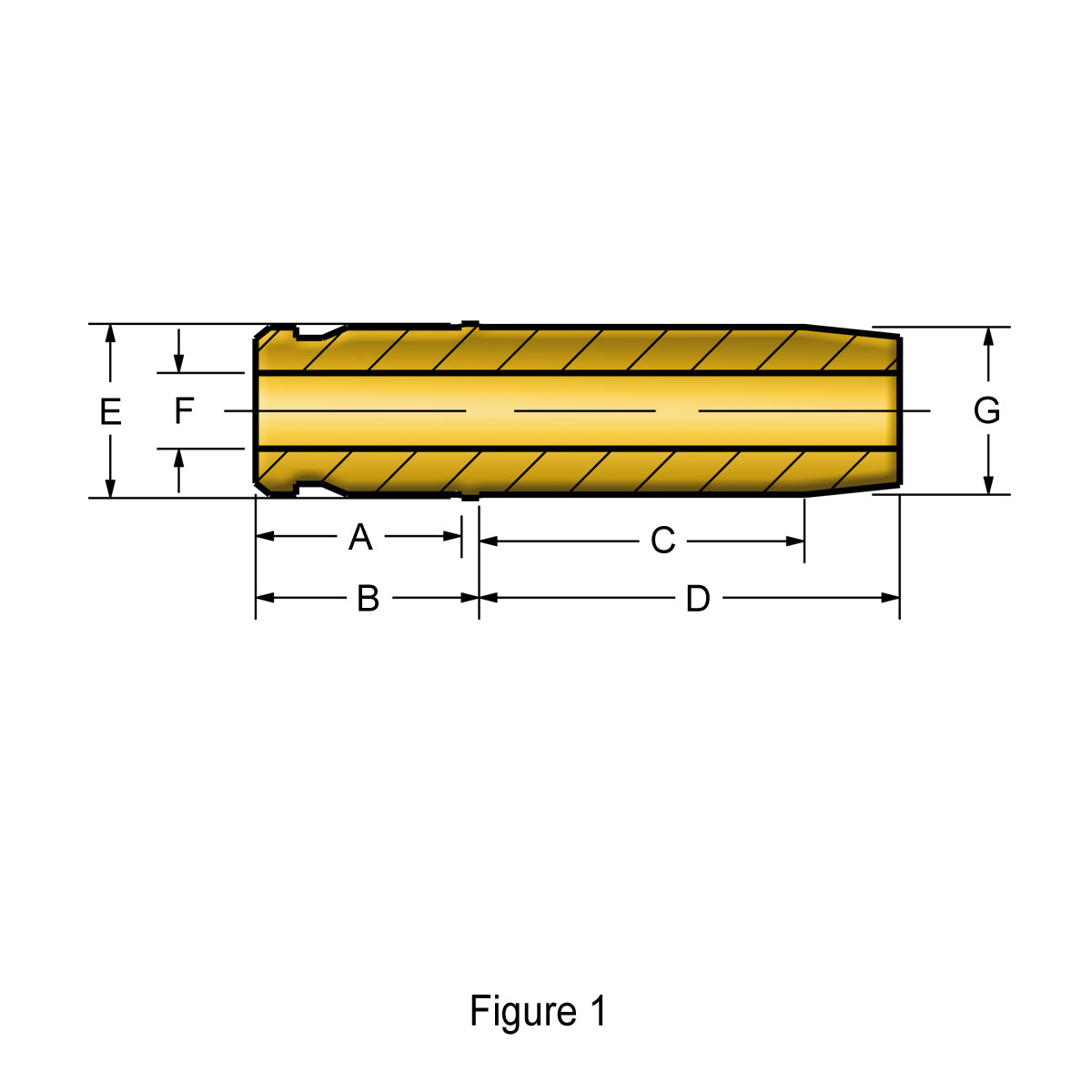

Outside Dia. (G) 0.4752" (Std.)/ 0.4772" (+0.002")/ 0.4792" (+0.001")/ 0.4812" (+0.006")/ 0.4902" (+0.015")/ 0.5022" (+0.027")
A 0.440"
B 0.490"
C 0.785"
D 1.165"
E 0.495"
F 0.2745"
Unique Identifier No. FR327789_01GAUS
