Guide, Mng. Brz., Intake/ Exhaust, Various Triumph® Applications
Guide, Mng. Brz., Intake/ Exhaust, Various Triumph® Applications
SKU:70-0331S
Couldn't load pickup availability
Triumph® 500 & 650's 1951-1962
Triumph® 650 / 750 1963-1983

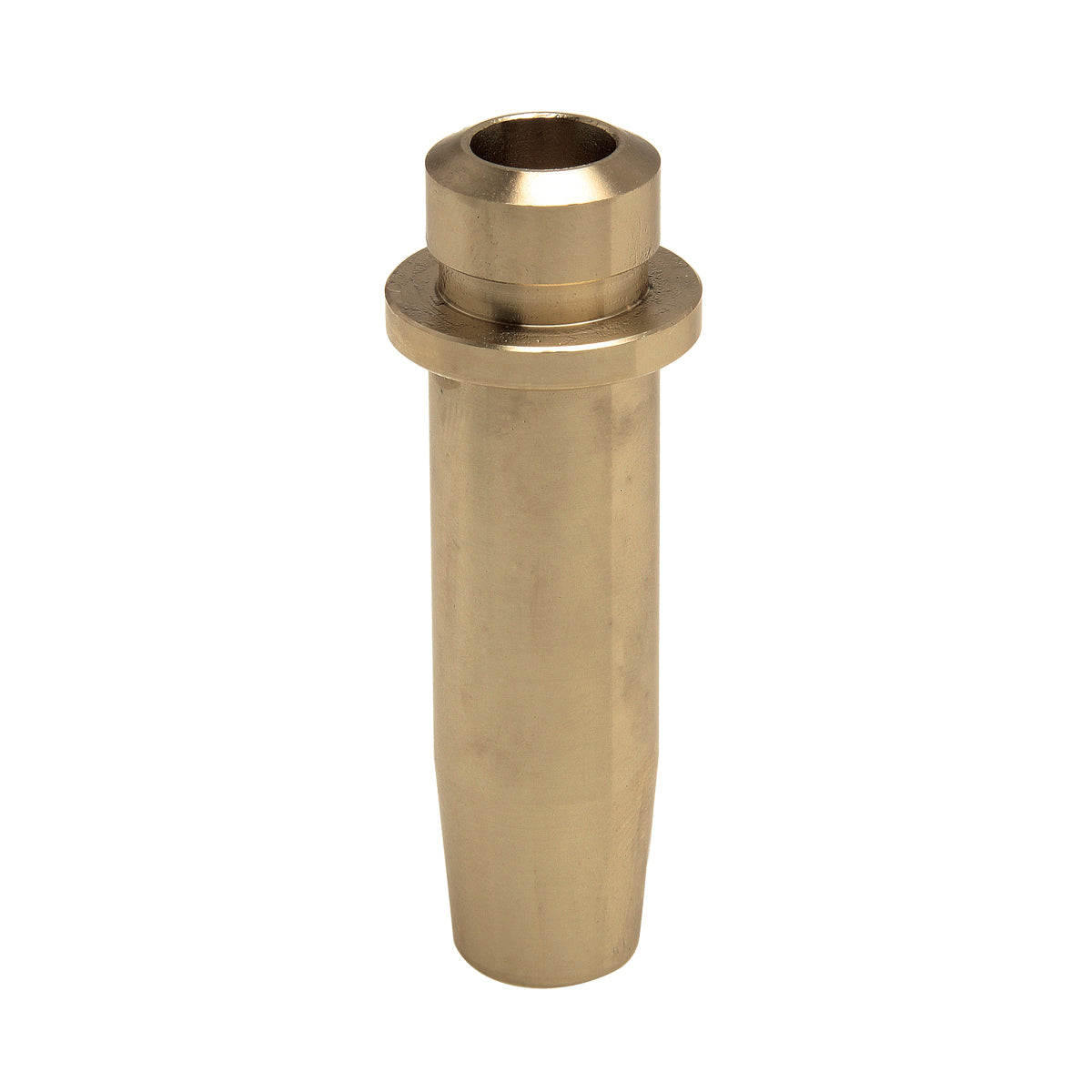

Manganese Bronze: These Engine Builder valve guides have been designed with the price conscious builder in mind. Expect the same exacting KPMI® tolerances, but with a reduced toughness / wear-ability when compared to premium C630 Nickel Aluminum Bronze valve guides. The softer Manganese guides are easily reamed, and then can be delicately finished with our high quality ball hones. Now, with any battery operated or electric drill you can ream and hone manganese valve guides in less time and in the absence of expensive honing equipment required to properly size tough Nickel Bronze guides.
Click Here to Download KPMI® Guide Sizing Tool Flyer
Click Here to Download KPMI® Seal Catalog
| Quantity | Pkg. of 1 |
| Type | Intake/ Exhaust |

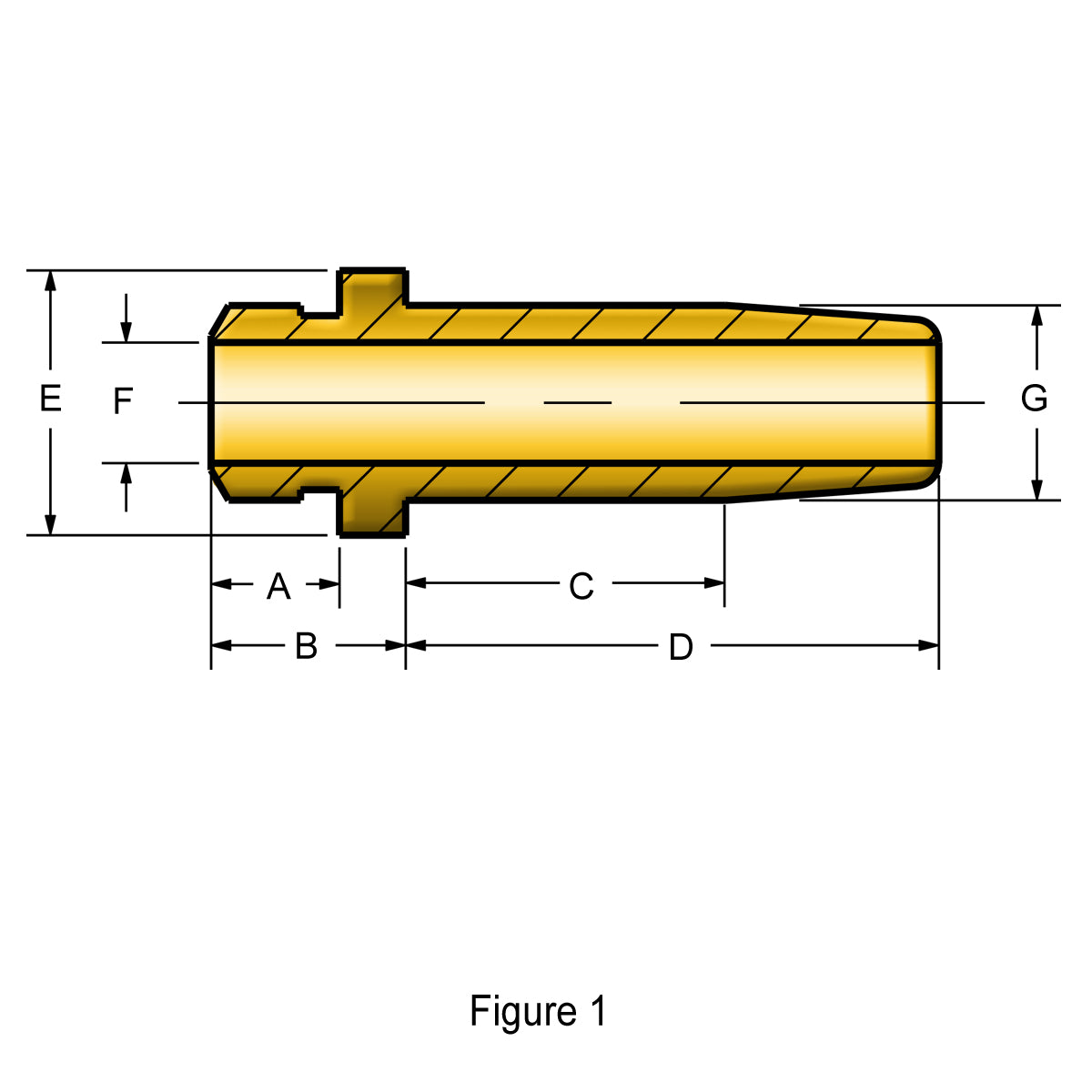

| Outside Dia. (G) | 0.5010" (Std.)/ 0.5130"(+0.002")/0.5050"(+0.004")/ 0.5070" (+0.006")/ 0.5160" (+0.015")/ 0.5510"(+0.050") |
| A | 0.315" |
| B | 0.405" |
| C | 0.820" |
| D | 1.370" |
| E | 0.680" |
| F | 0.3105" |
| Note | Machined for seal, seals sold separately. |
| Unique Identifier No. | FR327789_01GAUS |
