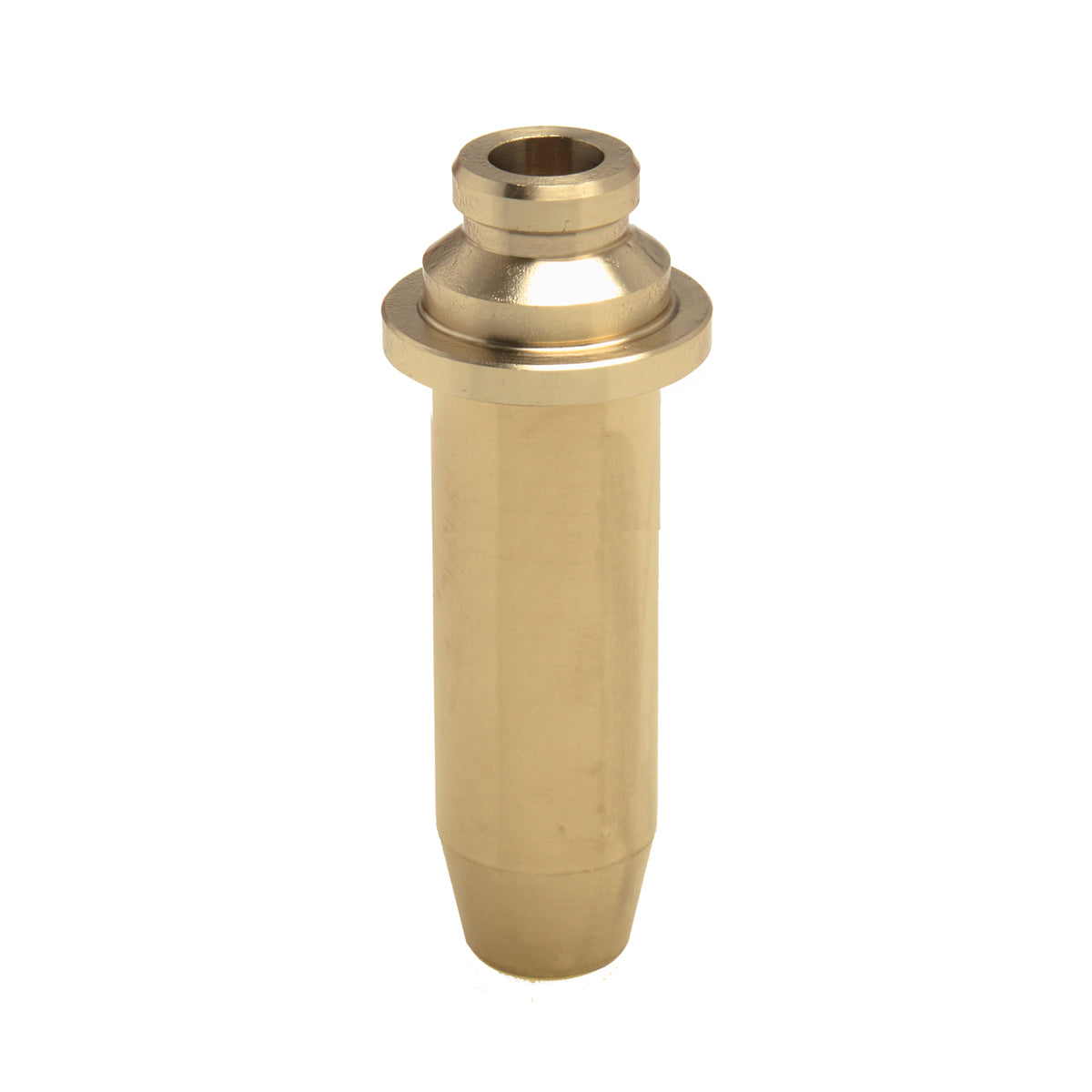

Guide, C630, Intake/ Exhaust, Various Honda® Applications
Guide, C630, Intake/ Exhaust, Various Honda® Applications
SKU:30-3050
Couldn't load pickup availability
Honda® GB™ 500 1989-1990
Honda® XR™ 500R 1983-1984
Honda® XL™ 600R 1983-1987
Honda® XR™ 600R 1985-2000
Honda® XR™ 650L 1993-2024
We choose to use the copper based C63000 nickel-aluminum bronze as a material to make our bronze valve guides because of its ideal characteristics for the application. The 5% nickel content provides superior resistance to wear, and the approximately 80 percent copper content delivers outstanding heat conductivity. KPMI® guide profiles are designed to have minimal effect on the airstream while maintaining critical cross sectional thickness in high temperature areas, which promotes high performance and endurance.
Click Here to Download KPMI® Guide Sizing Tool Flyer
Click Here to Download KPMI® Seal Catalog
| Quantity | Pkg. of 1 |
| Type | Intake/ Exhaust |

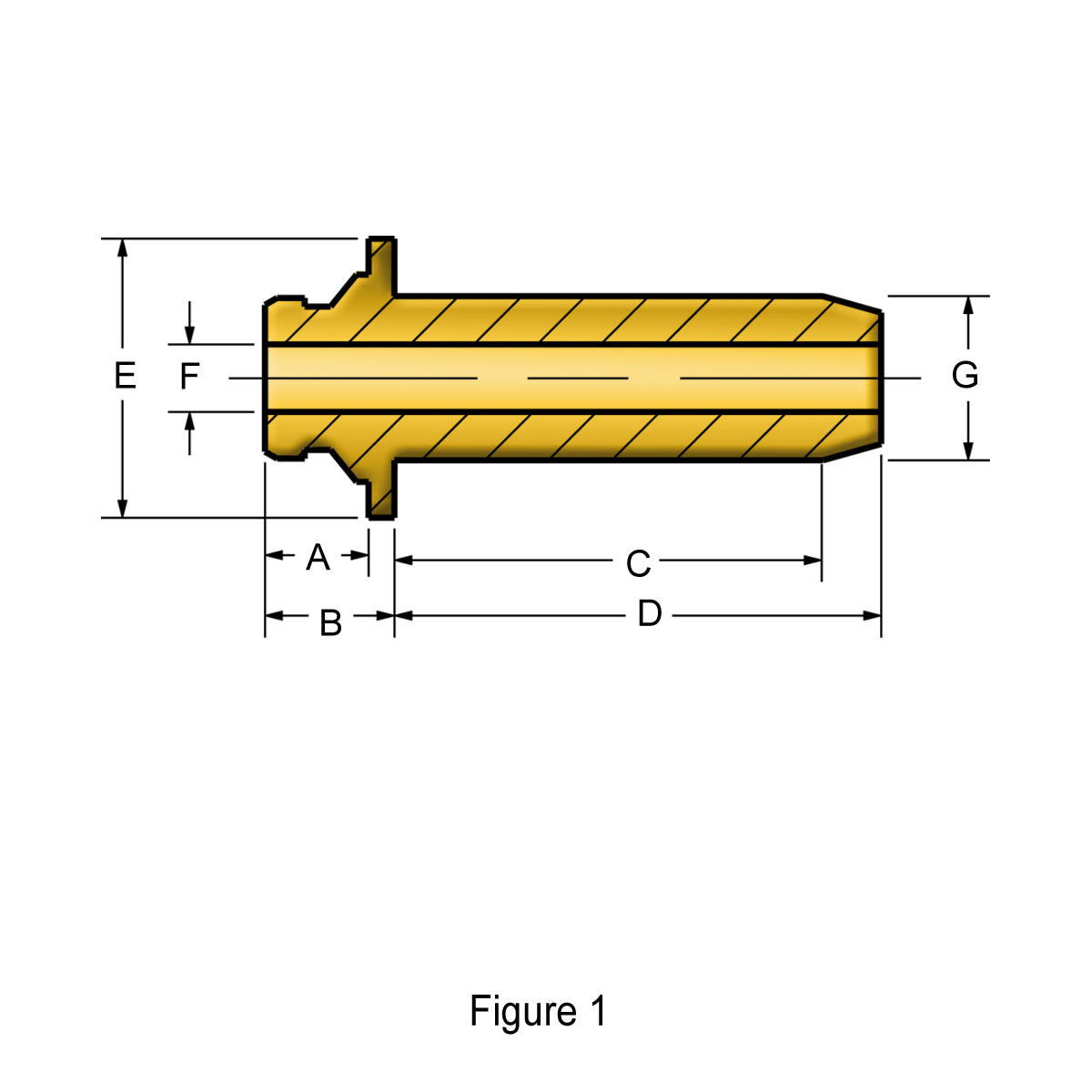

| Outside Dia. (G) | 0.4755" (Std.)/ 0.4755" (+0.002")/ 0.4855" (+0.010") |
| A | 0.300" |
| B | 0.375" |
| C | 1.240" |
| D | 1.410" |
| E | 0.808" |
| F | 0.2585" |
| Unique Identifier No. | FR327789_01GAUS |
