Guide, C630, Intake/ Exhaust, Various Honda® Applications
Guide, C630, Intake/ Exhaust, Various Honda® Applications
SKU:30-3120
Couldn't load pickup availability
Honda® TRX 400EX 1999-2014
Honda® TRX 400X 2009-2014
Honda® XR 400R RFVC 1996-2004
We choose to use the copper based C63000 nickel-aluminum bronze as a material to make our bronze valve guides because of its ideal characteristics for the application. The 5% nickel content provides superior resistance to wear, and the approximately 80 percent copper content delivers outstanding heat conductivity. KPMI® guide profiles are designed to have minimal effect on the airstream while maintaining critical cross sectional thickness in high temperature areas, which promotes high performance and endurance.
Click Here to Download KPMI® Guide Sizing Tool Flyer
Click Here to Download KPMI® Seal Catalog
Quantity | Pkg. of 1 |
Type | Intake/ Exhaust |

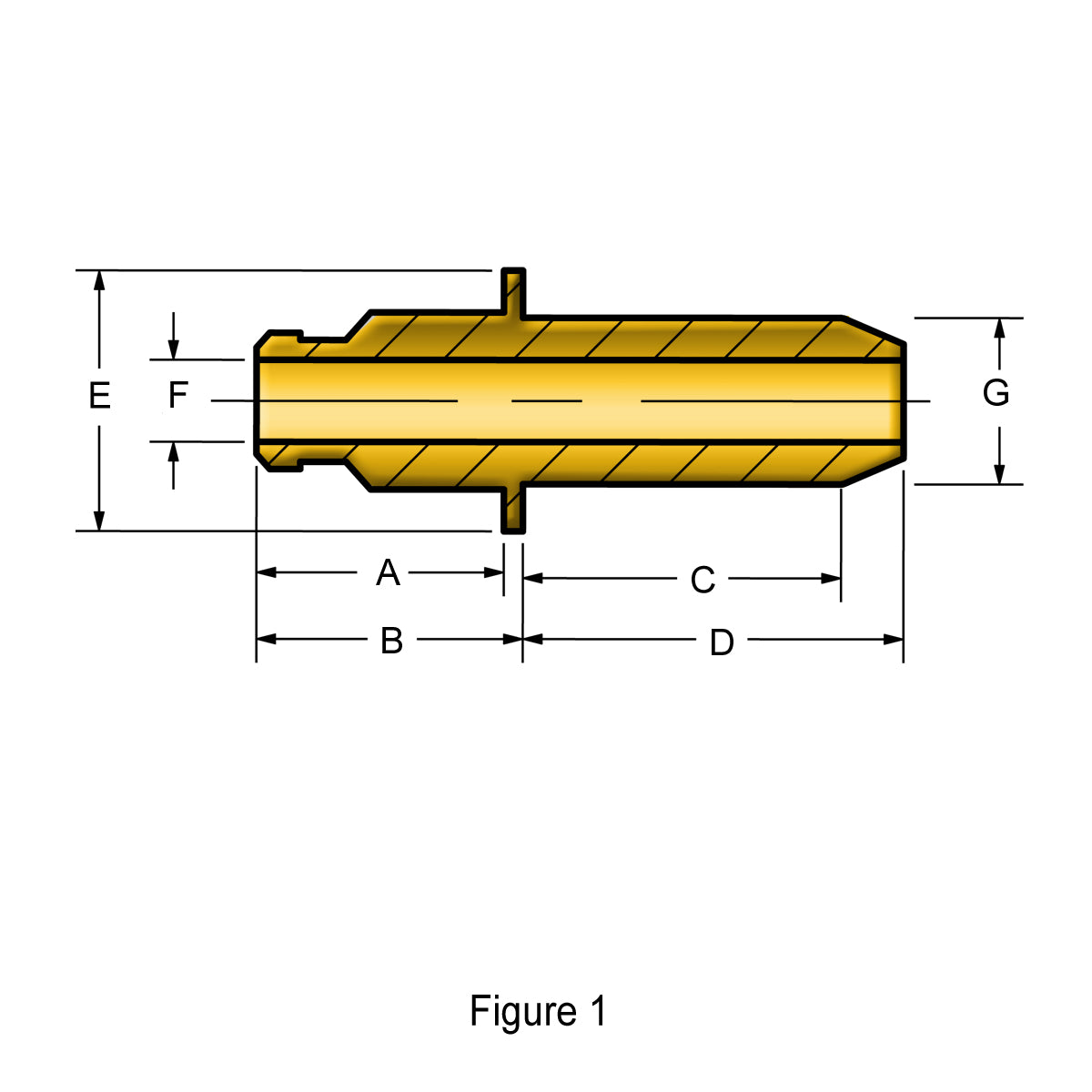

Outside Dia. (G) | 0.4355" (Std.)/ 0.4365" (+0.001")/ 0.4375" (+0.002")/ 0.4455" (+0.010") |
A | 0.550" |
B | 0.640" |
C | 1.020" |
D | 1.300" |
E | 0.715" |
F | 0.2150" |
Unique Identifier No. | FR327789_01GAUS |
