Guide, Cast Iron, IN/EX STD, Suzuki®, GSX-1300R™ Hayabusa™, 1999-2024
Guide, Cast Iron, IN/EX STD, Suzuki®, GSX-1300R™ Hayabusa™, 1999-2024
SKU:60-60020-C
Couldn't load pickup availability
After chemically separating several samples of cast iron material, and analyzing and evaluating the test data, we decided to have our own specification of cast iron made exclusively for us. We specify elements such as carbon, silicon, manganese, nickel, chromium, copper and sulfur to produce a highly pearlitic structure with dense fine grains, and excellent wear resistance. Additionally, these guides have been designed to be compatible with our uniquely designed guide installation and removal tools. A relief in the seal detail allows for driving force to be applied without causing deformation in harmful areas.
Click Here to Download KPMI® Guide Sizing Tool Flyer
Click Here to Download KPMI® Seal Catalog

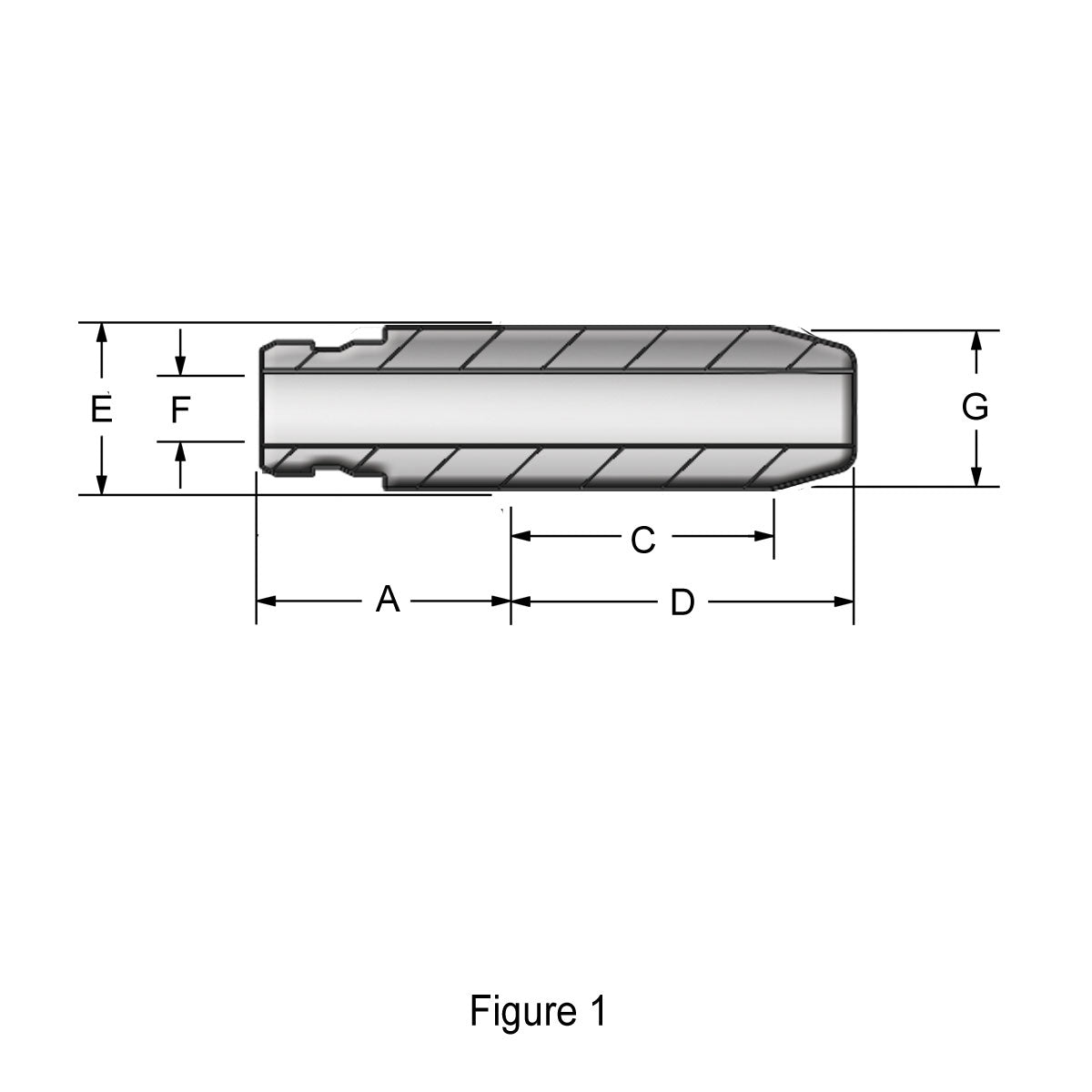

| Quantity | Pkg. of 1 |
| Type | Intake/ Exhaust |
| Outside Dia, (G) | 0.4170"(Std.)/ 0.4180"(+0.001")/ 0.4190" (+0.002")/ 0.4210" (+0.004")/ 0.4270" (+0.010") |
| A | 0.585" |
| B | --- |
| C | 0.650" |
| D | 0.860" |
| E | 0.415" |
| F | 0.1931" |
| Note | Compatible with the following: Guide Installer in Figure 2 (ITEM #60-61400) Guide Remover in Figure 3 (ITEM #60-61405) |
| Unique Identifier No. | FR327789_01GAUS |
