Guide, C630, Intake/ Exhaust, Husqvarna® & KTM®, Various 450s, 2013-2018
Guide, C630, Intake/ Exhaust, Husqvarna® & KTM®, Various 450s, 2013-2018
SKU:96-96520
Regular price
$22.22 USD
Regular price
$22.22 USD
Sale price
$22.22 USD
Unit price
per
Couldn't load pickup availability
Husqvarna® FS 450 2017-2018
Husqvarna® FX 450 2017
Husqvarna® FC 450 2014-2018
KTM® 450 XC-F 2013-2017
KTM® 450 SX-F 2013-2018

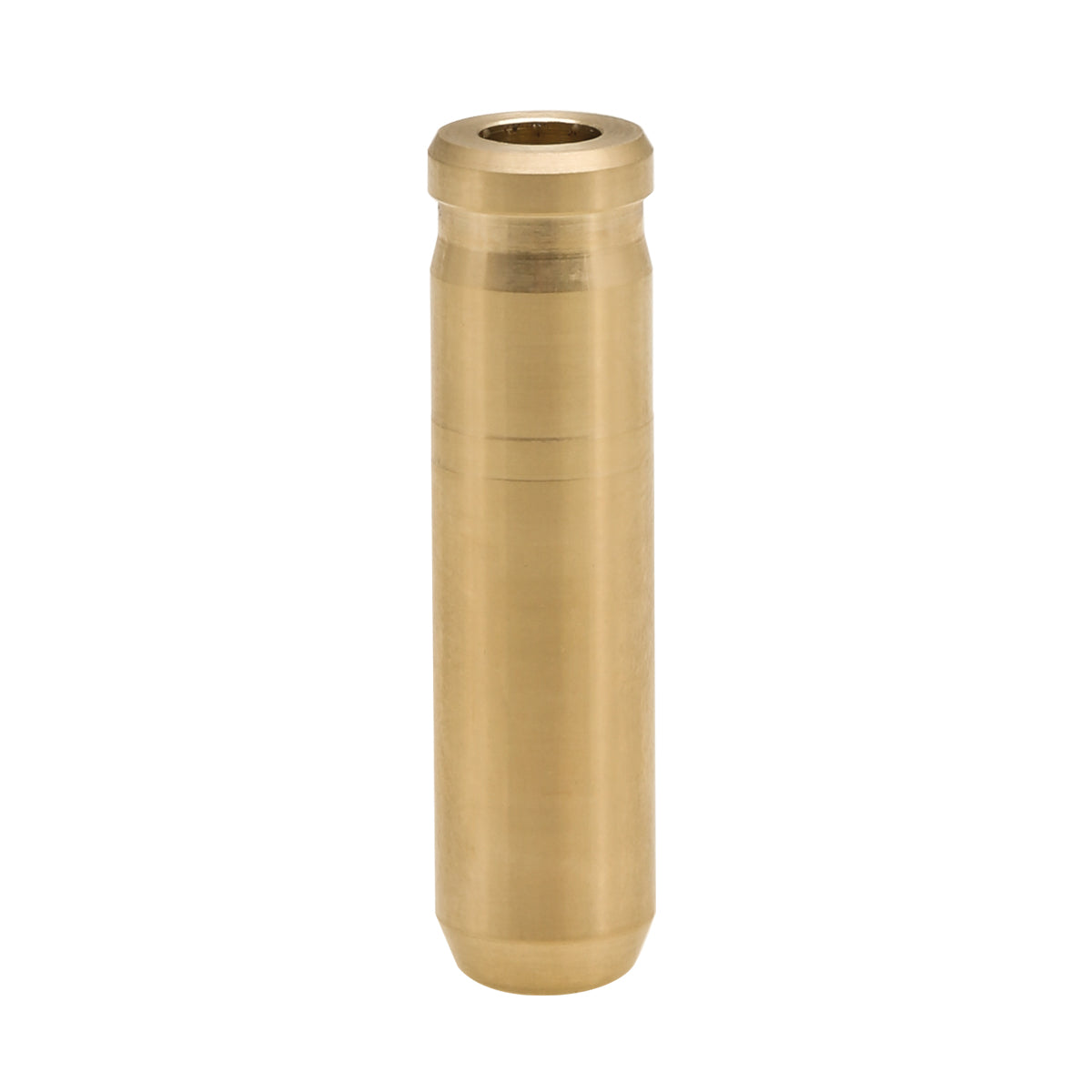

We choose to use the copper based C63000 nickel-aluminum bronze as a material to make our bronze valve guides because of its ideal characteristics for the application. The 5% nickel content provides superior resistance to wear, and the approximately 80 percent copper content delivers outstanding heat conductivity. KPMI® guide profiles are designed to have minimal effect on the airstream while maintaining critical cross sectional thickness in high temperature areas, which promotes high performance and endurance.
| Quantity | Pkg. of 1 |
| Type | Intake/ Exhaust |
| Intake Outside Dia. (G) | 0.4352" (Std.)/ 0.4362" (+0.001")/ 0.4372" (+0.002")/ 0.4452" (+0.010") |

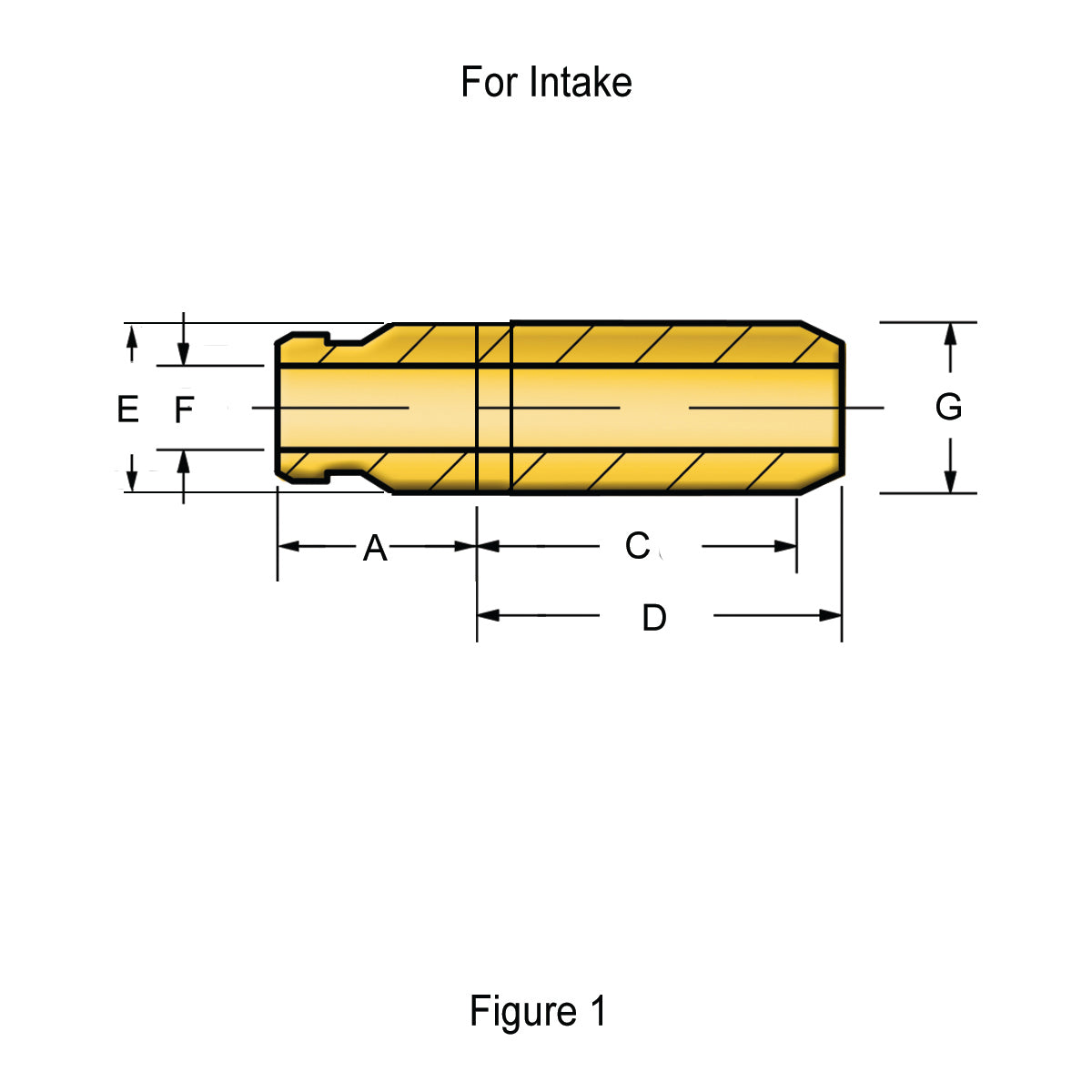

| *Intake (A) | 0.555" (Figure 1) |
| Intake (B) | --- |
| *Intake (C) | 0.945" (Figure1) |
| *Intake (D) | 1.140" (Figure1) |
| Intake (E) | 0.433" |
| Intake (F) | 0.2353" |
| Exhaust Outside Dia. (G) | 0.4352" (Std.)/ 0.4362" (+0.001")/ 0.4372" (+0.002")/ 0.4452" (+0.010") |

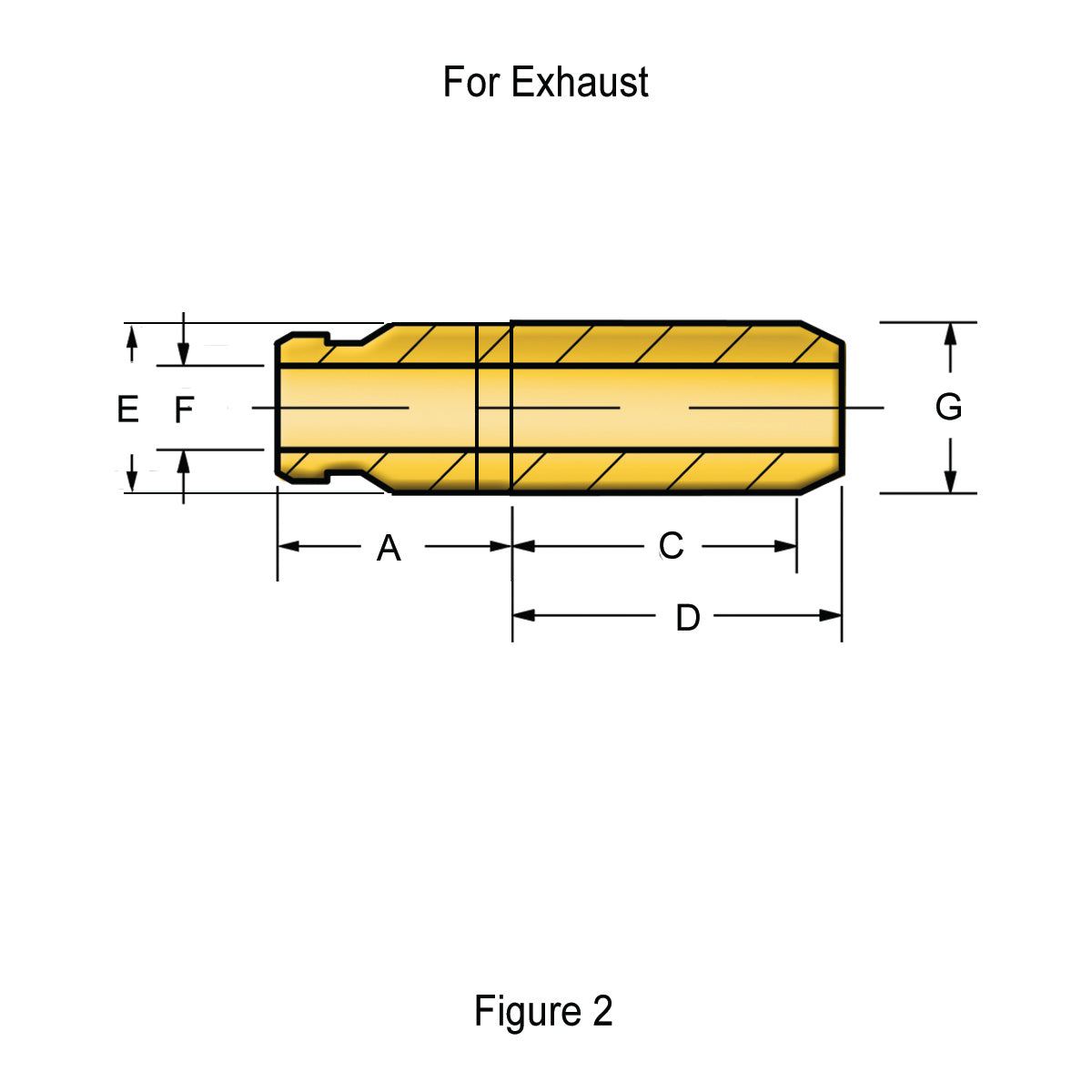

| *Exhaust (A) | 0.635" (Figure 2) |
| Exhaust (B) | --- |
| *Exhaust (C) | 0.865" (Figure2) |
| *Exhaust (D) | 1.060" (Figure 2) |
| Exhaust (E) | 0.433" |
| Exhaust (F) | 0.2353" |
| Note | *One guide design installs at two different heights depending on Intake or Exhaust usage. You must install to lower line for exhaust and upper line for intake. |
| Unique Identifier No. | FR327789_01GAUS |
