Guide, C630, Intake/ Exhaust, Arctic Cat®, Various 998cc Triples, 2017-2022

ARCTIC CAT® M 9000 KING CAT 2017-2019
ARCTIC CAT® XF 9000 CROSS COUNTRY LTD 2017-2019
ARCTIC CAT® XF 9000 CROSSTREK 2017-2018
ARCTIC CAT® XF 9000 HIGH COUNTRY LTD 2017-2019
ARCTIC CAT® ZR 9000 LTD 2017-2019
ARCTIC CAT® ZR 9000 LXR 2017
ARCTIC CAT® ZR 9000 RR 2017-2019
ARCTIC CAT® ZR 9000 SNO PRO 2017-2019
ARCTIC CAT® ZR 9000 THUNDERCAT 2017-2022
ARCTIC CAT® XF 9000 CROSSTOUR 2018
ARCTIC CAT® WILDCAT XX 2019-2022

 We choose to use the copper based C63000 nickel-aluminum bronze as a material to make our bronze valve guides because of its ideal characteristics for the application. The 5% nickel content provides superior resistance to wear, and the approximately 80 percent copper content delivers outstanding heat conductivity. KPMI® guide profiles are designed to have minimal effect on the airstream while maintaining critical cross sectional thickness in high temperature areas, which promotes high performance and endurance.

Click Here to Download KPMI® Guide Sizing Tool Flyer

Click Here to Download KPMI® Seal Catalog

Quantity	Pkg. of 1
Type	Intake/ Exhaust

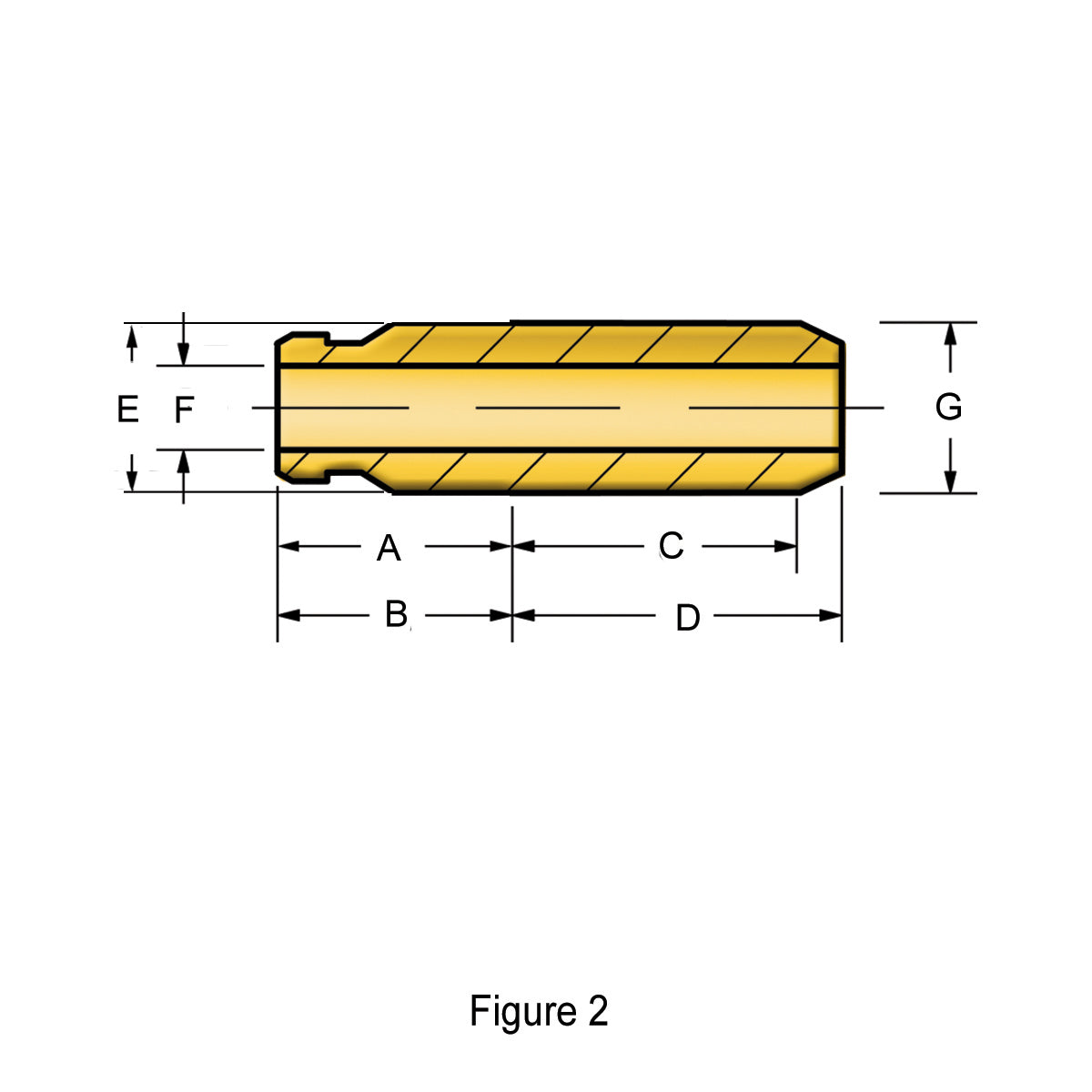

Outside Dia. (G)	0.3564"(Std.)/ 0.3574"(+0.001")/ 0.3584"(+0.002") / 0.3664" (+0.010")
A	0.530"
B	0.530"
C	0.585"
D	0.750"
E	0.354"
F	0.1760"
Unique Identifier No.	FR327789_01GAUS
