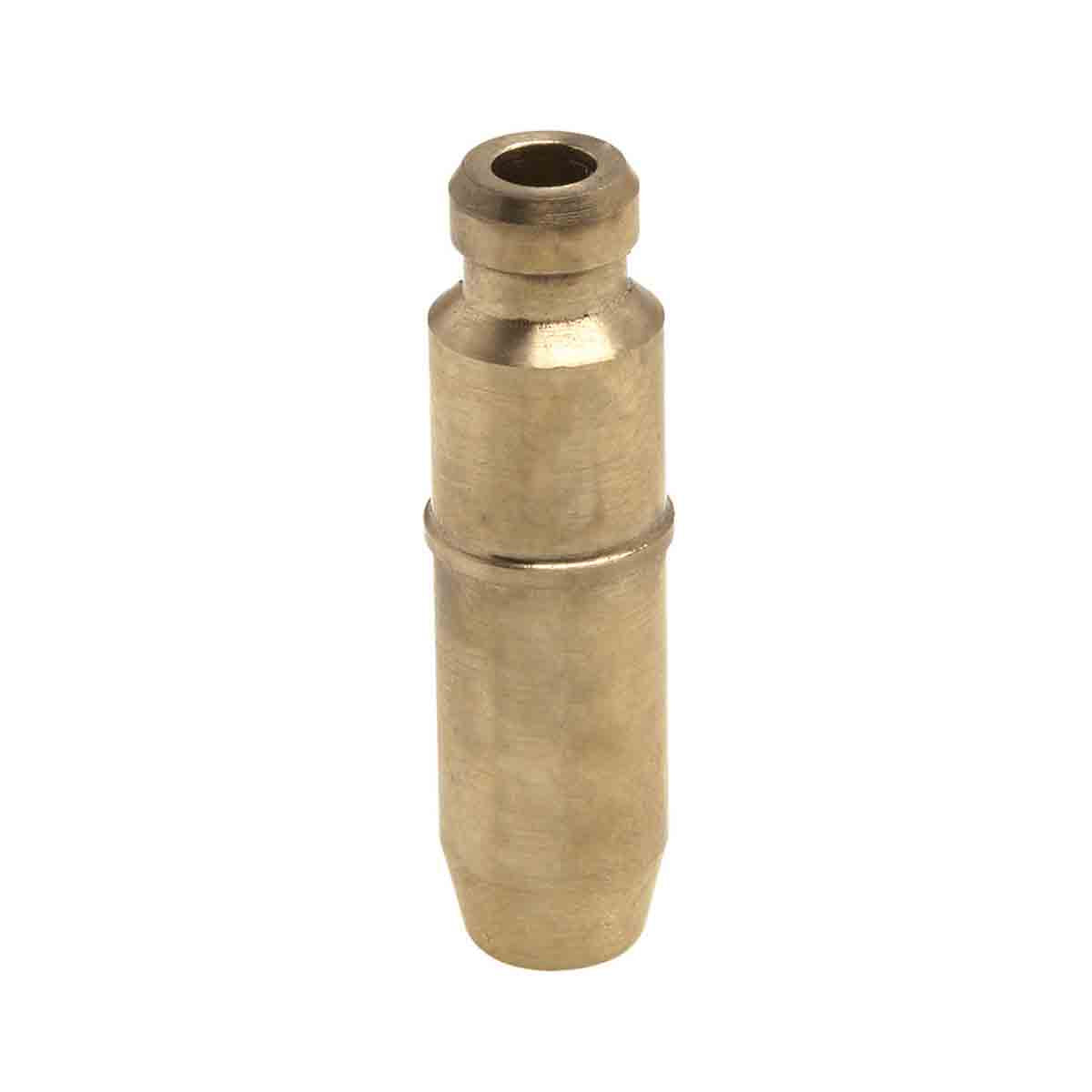

Guide, C630, Exhaust, Yamaha®, MR-1™ Watercraft Engines, 2002-2013
Guide, C630, Exhaust, Yamaha®, MR-1™ Watercraft Engines, 2002-2013
SKU:80-81180
Couldn't load pickup availability
FX1000 2002-'06 / FX140 2002-'04
SR230 2003-'07 / AR230 2004-'09
FX Models 2004-'06 / SX230 2004-'09
WaveRunner FX's & VX's 2005-'13
AR210 2006-'13 / SR210 2006-'07
SX210 2006-'13 / 212SS/X 2008-'10
232 LIMITED 2008-'09/ VX CRUISER 2011-'13
We choose to use the copper based C63000 nickel-aluminum bronze as a material to make our bronze valve guides because of its ideal characteristics for the application. The 5% nickel content provides superior resistance to wear, and the approximately 80 percent copper content delivers outstanding heat conductivity. KPMI® guide profiles are designed to have minimal effect on the airstream while maintaining critical cross sectional thickness in high temperature areas, which promotes high performance and endurance.
Click Here to Download KPMI® Guide Sizing Tool Flyer
Click Here to Download KPMI® Seal Catalog
| Quantity | Pkg. of 1 |
| Type | Exhaust |

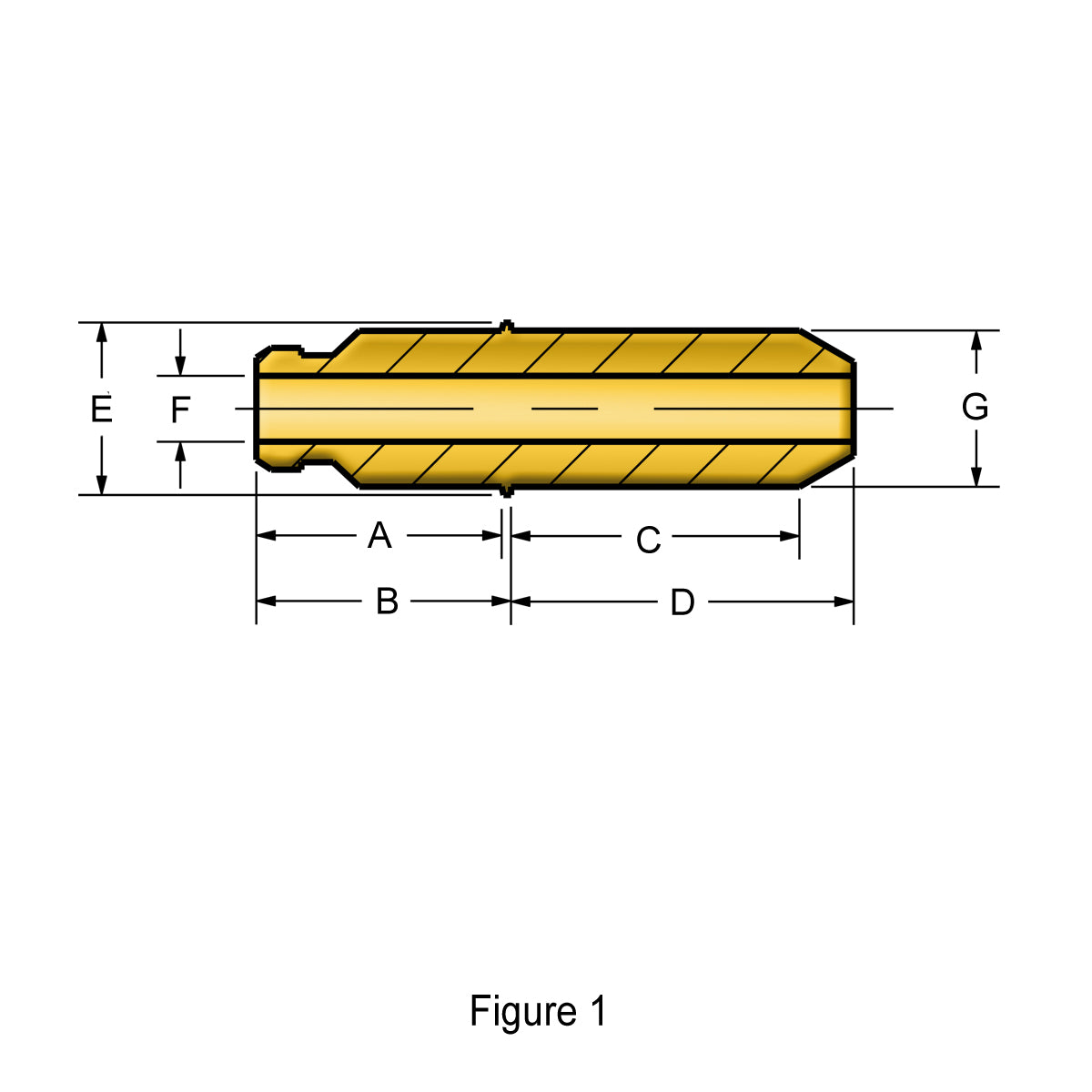

| Outside Dia. (G) | 0.3955" (Std.)/ 0.3965" (+0.001")/ 0.4055" (+0.010") |
| A | 0.580" |
| B | 0.610" |
| C | 0.510" |
| D | 0.690" |
| E | 0.420" |
| F | 0.1757" |
| Unique Identifier No. | FR327789_01GAUS |
