Guide, C630, Exhaust, Various Yamaha® Applications
Guide, C630, Exhaust, Various Yamaha® Applications
SKU:80-80050
Couldn't load pickup availability
Yamaha® Grizzly™ 660 2002-2008
Yamaha® Raptor™ 660 2001-2005
Yamaha® Rhino™ 660 2004-2007
We choose to use the copper based C63000 nickel-aluminum bronze as a material to make our bronze valve guides because of its ideal characteristics for the application. The 5% nickel content provides superior resistance to wear, and the approximately 80 percent copper content delivers outstanding heat conductivity. KPMI® guide profiles are designed to have minimal effect on the airstream while maintaining critical cross sectional thickness in high temperature areas, which promotes high performance and endurance.
Click Here to Download KPMI® Guide Sizing Tool Flyer
Click Here to Download KPMI® Seal Catalog

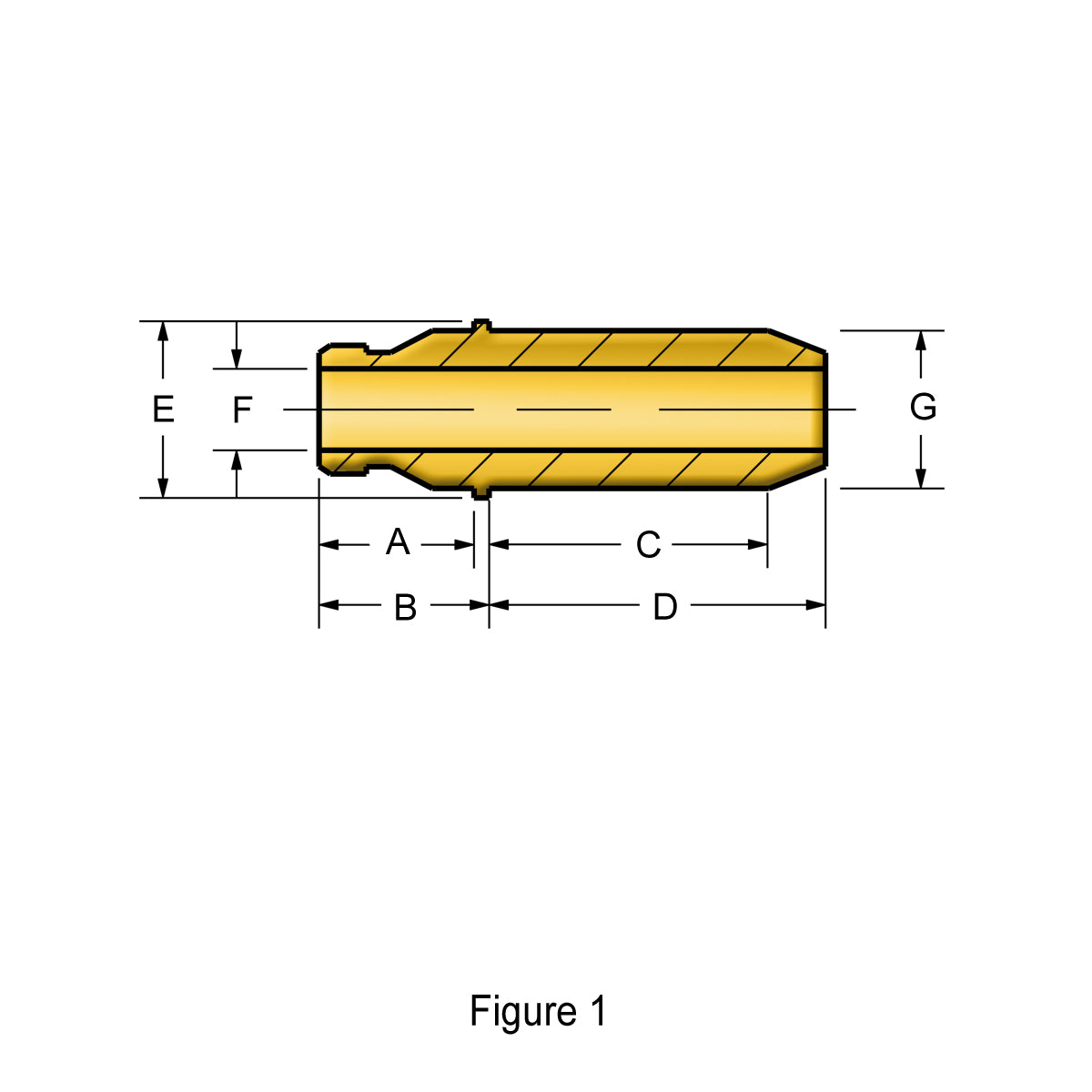

| Quantity | Pkg. of 1 |
| Type | Exhaust |
| Outside Dia. (G) | 0.4550" (Std.)/ 0.4560" (+0.001")/ 0.4570" (+0.002")/ 0.4250" (+0.010") |
| A | 0.440" |
| B | 0.475" |
| C | 0.860" |
| D | 0.990 |
| E | 0.495" |
| F | 0.2348" |

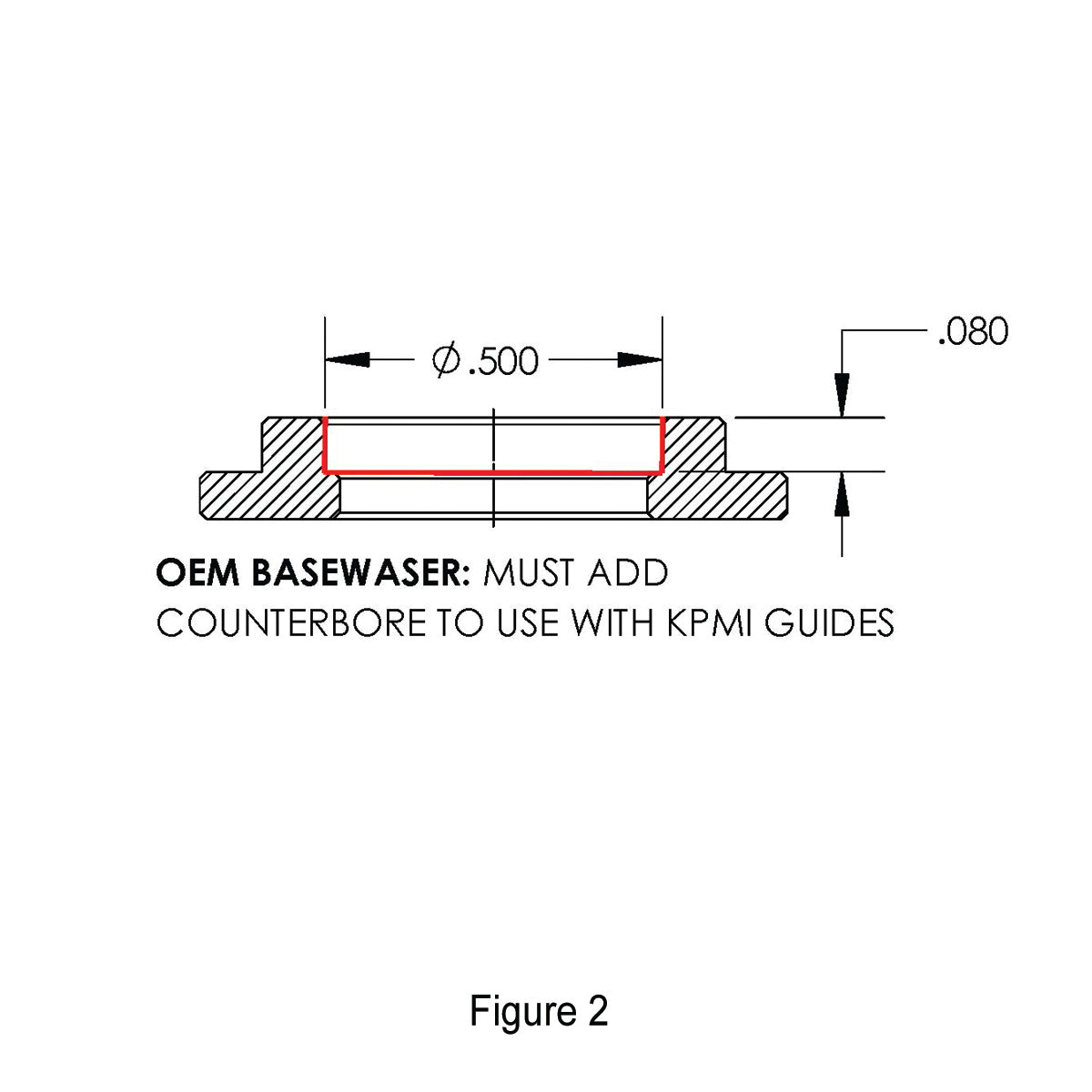

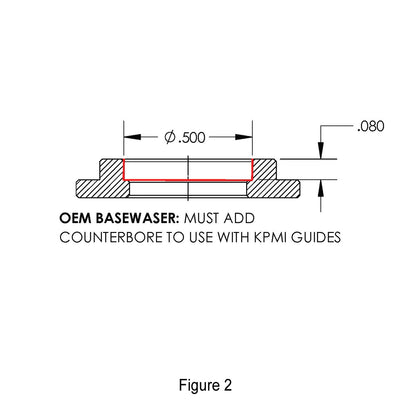

| NOTE ON OEM SPRING KIT COMPATIBILITY | These valve guides have been shortened for maximum valve lift capability when used with KPMI spring kits. To use these guides with the OEM spring kit, the OEM basewasher will require modification by counterboring (Ø.50 x ↓.08”) to allow the stem seal to fully seat on the guide. |
| Unique Identifier No. | FR327789_01GAUS |
