Engine Kit, Steel, 0.415" Lift, HD® Shovelhead 74", 1966-1977

Engine Kit, Steel, 0.415" Lift, HD® Shovelhead 74", 1966-1977

SKU:20-22450

Regular price $219.96 USD
Regular price $219.96 USD Sale price $219.96 USD
Sale Sold out

California Prop 65

Features:

  • Save time money when purchasing this kit
  • One package, everything you need for a cylinder head overhaul
  • Double your service life over OEM using KPMI® Valvetrain products
  • All the components in this kit would cost more if bought individually

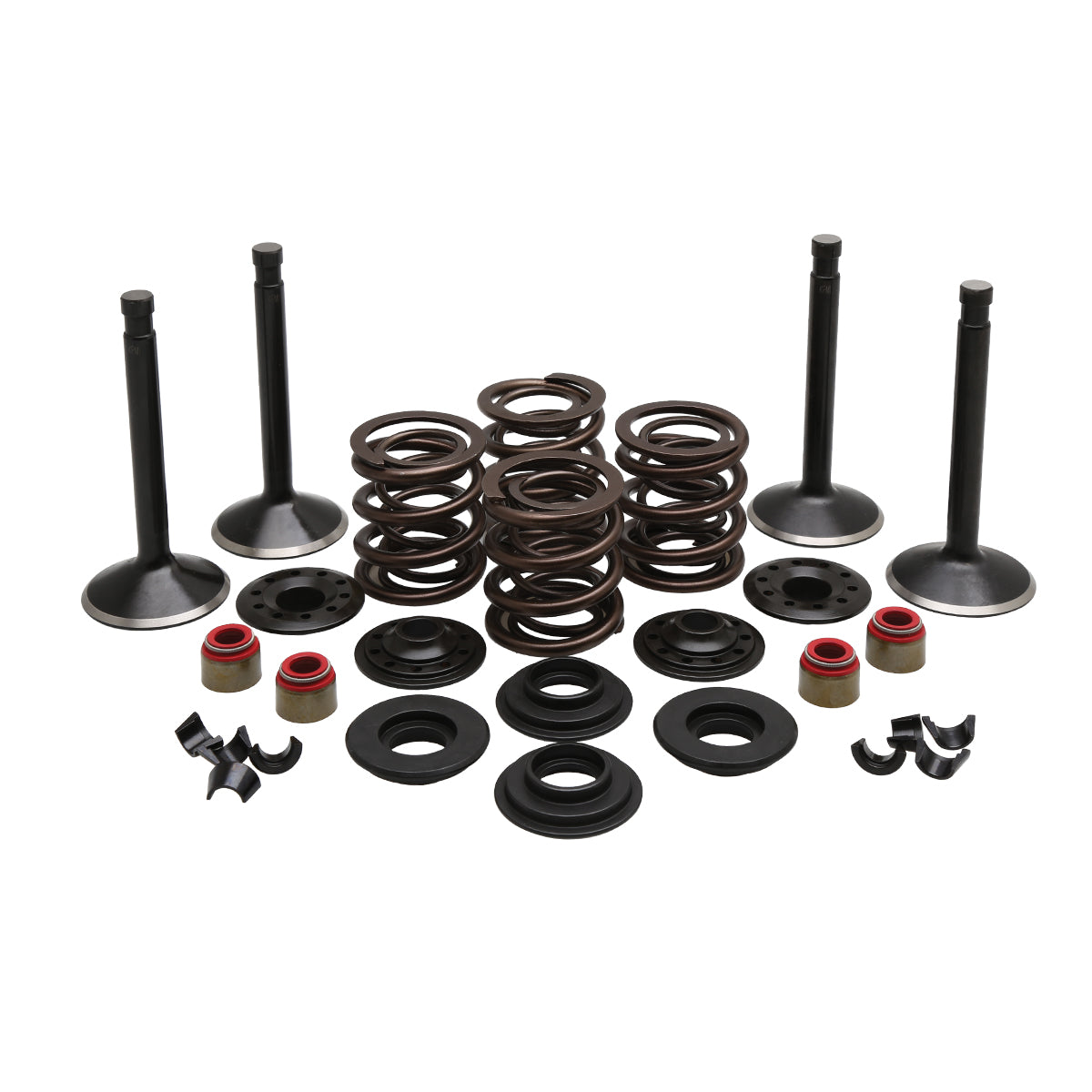

Kit Includes:

  • KPMI® complete Valve Spring Kit that meets or exceeds OEM specifications
  • Seals (where applicable)
  • Keeper (where applicable)
  • KPMI® S.S. Black Diamond™ Valves, Stock Head Dia.
Installation Instructions Click Here
Type Intake/ Exhaust
Retainer Material H.T. Steel
Valve Lift 0.415"
Installed Height 1.375"
Seat Pressure 129#
Open Pressure #272
@ Lift 0.415"
Valve Type Intake / Exhaust
Valve Material Black Diamond™ Stainless
Coating Black Nitroneg
Intake Head Diameter 49.53mm / 1.950"
Intake Stem Diameter 9.6mm / 0.3765"
Intake Tulip 23°
Intake Overall Length 3.885”
Exhaust Head Diameter 44.45mm / 1.750”
Exhaust Stem Diameter 9.6mm / 0.3760"
Exhaust Tulip 29°
Exhaust Overall Length 3.810"
Remarks Standard
Note The basewasher is counterbored to fit a 0.665” outside diameter seal.
Unique Identifier No. FR327789_01GAUS
