Engine Kit, Steel, 0.415" Lift, HD®, Panhead™, 1948-1965
Engine Kit, Steel, 0.415" Lift, HD®, Panhead™, 1948-1965
SKU:20-22150
Regular price
$215.95 USD
Regular price
$215.95 USD
Sale price
$215.95 USD
Unit price
per
Couldn't load pickup availability
Features:
- Save time money when purchasing this kit
- One package, everything you need for a cylinder head overhaul
- Double your service life over OEM using KPMI® Valvetrain products
- All the components in this kit would cost more if bought individually

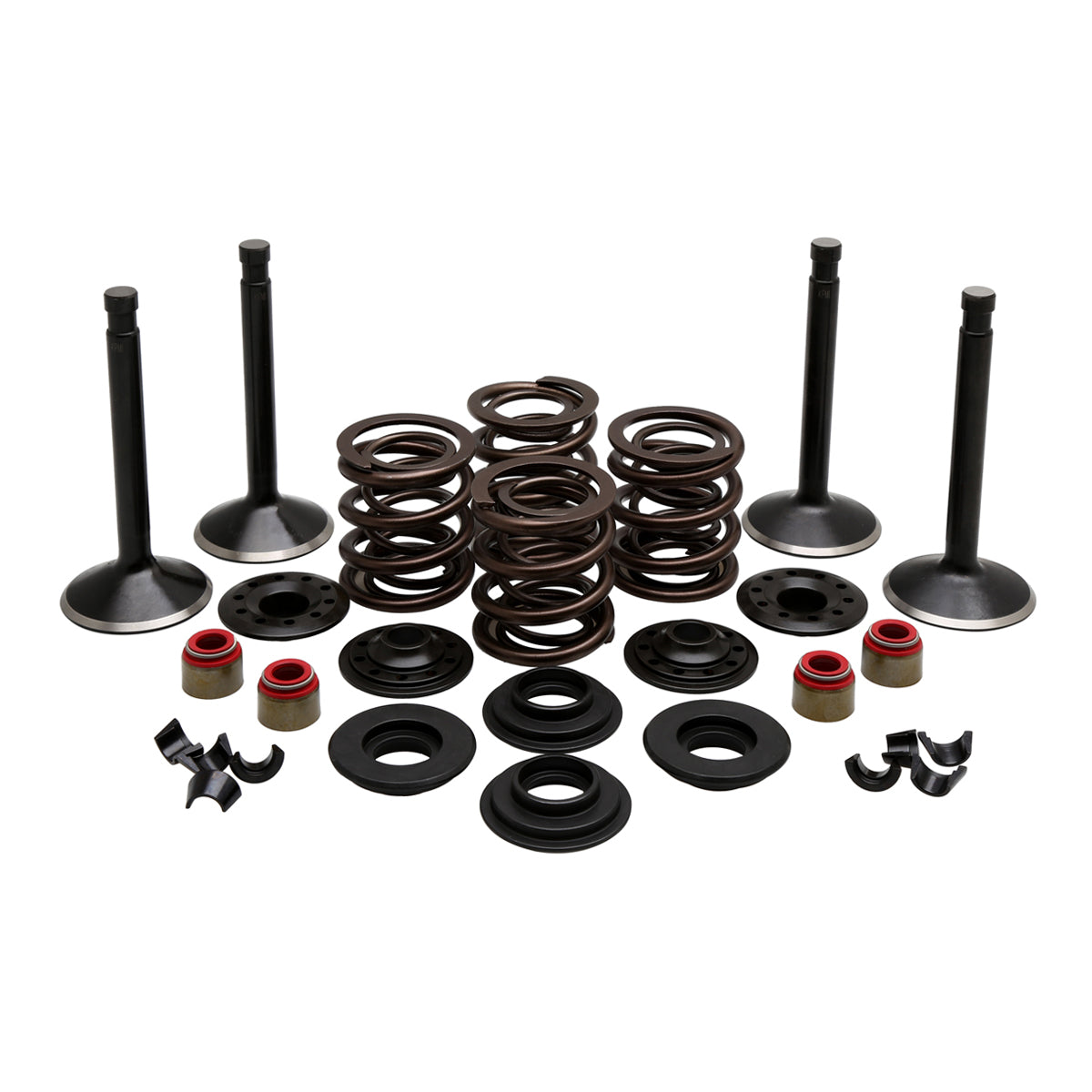

Kit Includes:
- KPMI® complete Valve Spring Kit that meets or exceeds OEM specifications
- Seals (where applicable)
- Keeper (where applicable)
- KPMI® S.S. Black Diamond™ Valves, Stock Head Dia.
| Installation Instructions | Click Here |
| Type | Intake/ Exhaust |
| Retainer Material | H.T. Steel |
| Valve Lift | 0.415" |
| Installed Height | 1.375" |
| Seat Pressure | 129# |
| Open Pressure | 272# |
| @ Lift | 0.415" |
| Valve Type | Intake / Exhaust |
| Valve Material | Black Diamond™ Stainless |
| Coating | Black Nitroneg |
| Intake Head Diameter | 44.45mm / 1.750” |
| Intake Stem Diameter | 9.6mm / 0.3765" |
| Intake Tulip | 23° |
| Intake Overall Length | 3.800" |
| Exhaust Head Diameter | 44.45mm / 1.750” |
| Exhaust Stem Diameter | 9.6mm / 0.3760" |
| Exhaust Tulip | 29° |
| Exhaust Overall Length | 3.820" |
| Remarks | Standard |
| Unique Identifier No. | FR327789_01GAUS |
