Cylinder Studs, HT Steel, Std. Length, HD®, Evolution™, 1984-1999

Cylinder Studs, HT Steel, Std. Length, HD®, Evolution™, 1984-1999

SKU:20-2098

Regular price $156.19 USD
Regular price $156.19 USD Sale price $156.19 USD
Sale Sold out

 California Prop 65

  • Heat treated 180,000 PSI aircraft alloy steel
  • Centerless ground to remove material imperfections
  • Rolled threads for the strongest threads period
  • Black oxide treated for enhanced corrosion resistance


KPMI® Cylinder Studs are made from 180,000 psi yield strength, fine grain, heat treated, aircraft grade alloy steel. When you want a stud that meets proof-stress and maximizes clamping force, look no further. KPMI® “rolls” the threads, heat treats and then centerless grinds the entire body of the stud. Rolling the threads creates the toughest and strongest thread possible and centerless grinding removes notch sensitivity. The final process for all KPMI® Studs is to encase the entire stud with premium corrosion resistant treatment of Black Oxide. Congratulations on your choice to purchase a stud that meets and exceeds your stock-replacement of high-performance needs!

Installation Instructions Click Here
Material H.T. Steel
Quantity Pkg. of 8

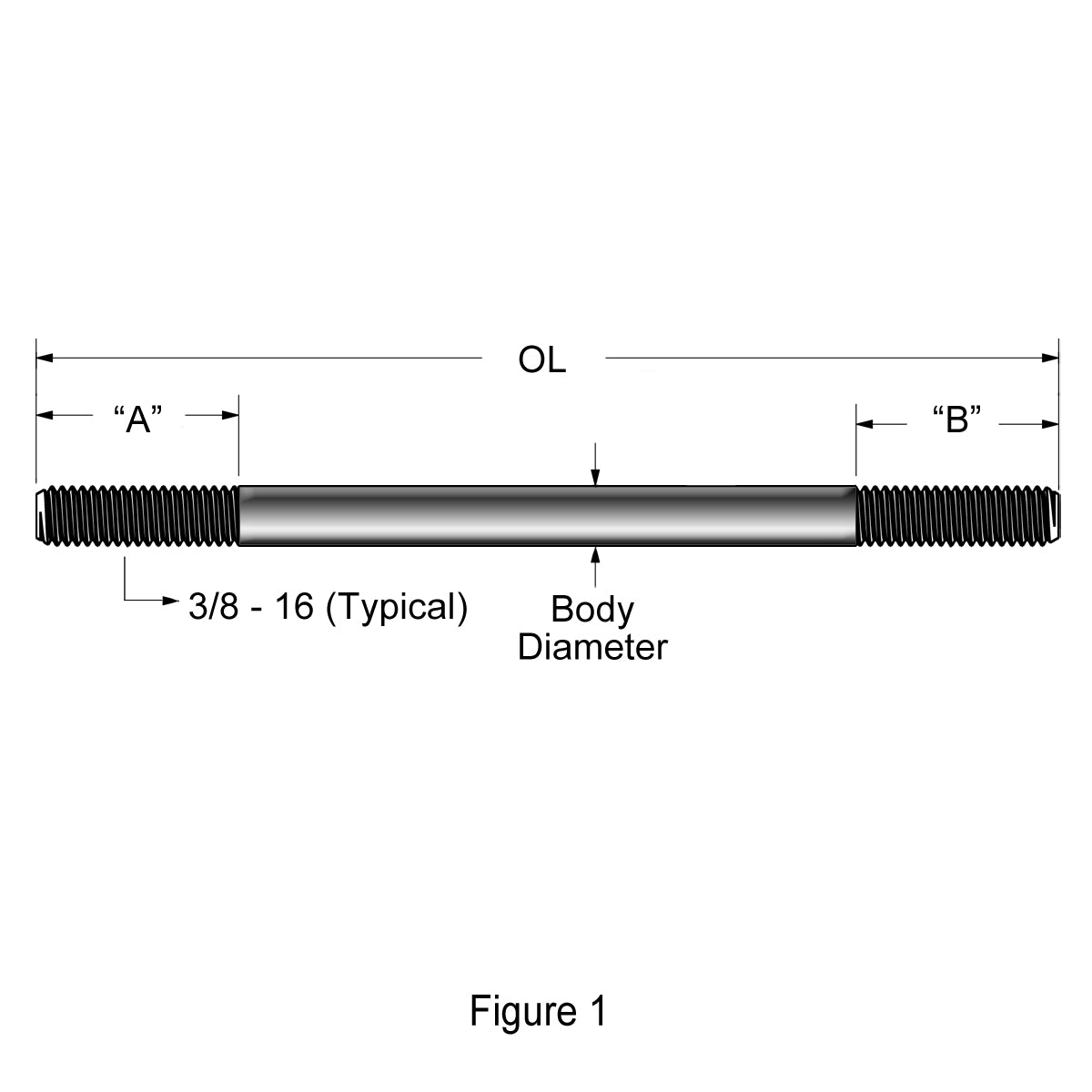

O.L.
6.725"
Body Dia. 0.370"
A 1.050"
B 1.100"
Rep. HD® OEM P/N 16832-86C
Unique Identifier No. FR327789_01GAUS
